Caterpillar Enclosed CVT Addendum
85
8. FINAL ASSEMBLY
8a. Install the drain plug in the CVT cover, and
carefully tighten it until snug, using a 9/16”
wrench. See Figure 2b.30.
8b. Slip the CVT cover in through the opening
i n th e p as s e n ge r s i de o f t h e s ea t b o x .
See Figure 2b.31.
8c. Rotate the CVT cover down into position.

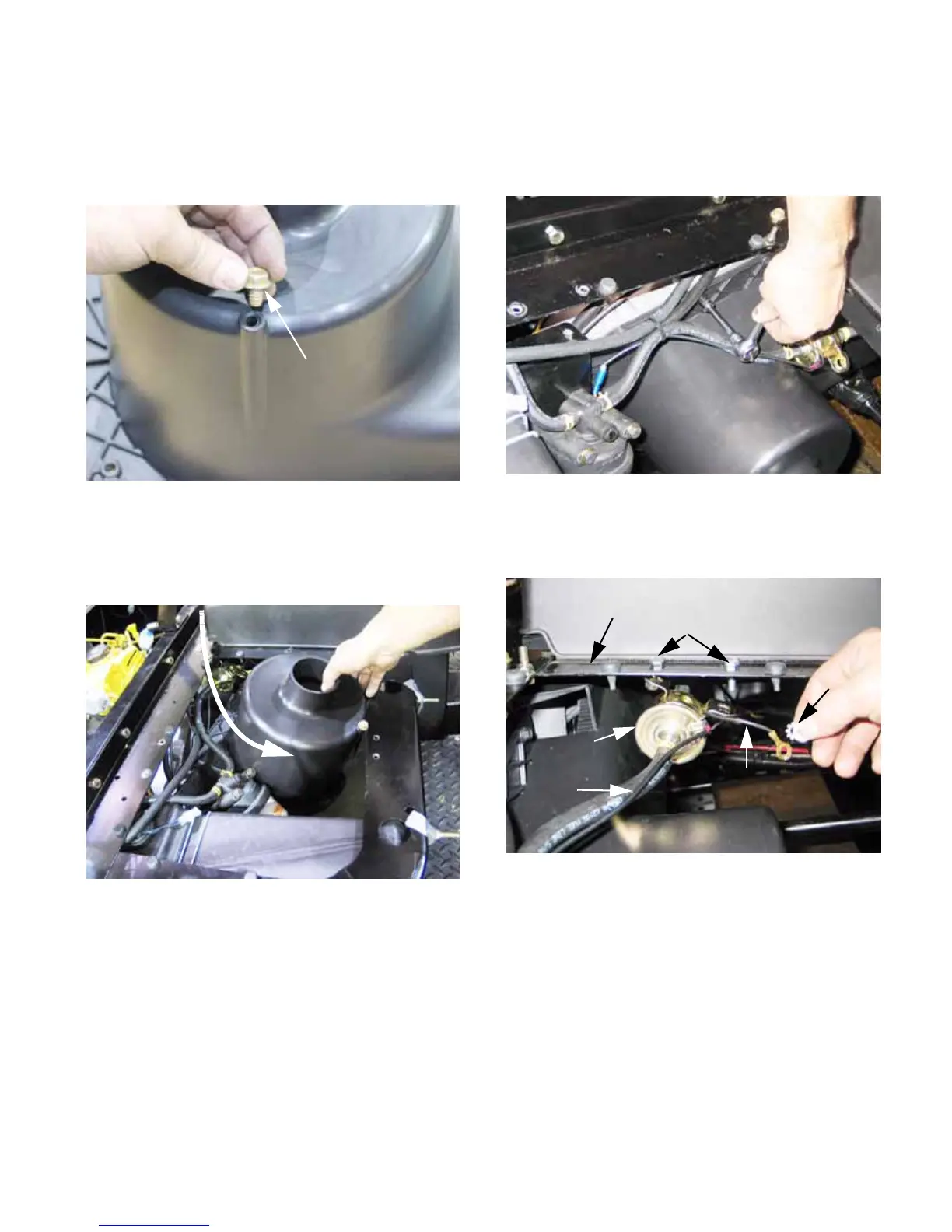

Figure 2b.30
Drain plug
Figure 2b.31
8d. Fasten the CVT cover to the back plate
using the (12) 1/4-20 self tapping screws.
Tighten the screws using a 3/8” wrench.
See Figure 2b.32.
8e. Mount the fuel pump to the console-cup
holder support. See Figure 2b.33.
NOTE: The star washer should be located under
the head of the bolt that the ground wire is
attached to, so that it bites through the paint to
establish a good electrical ground for the fuel
pump. Apply a small amount of silicone grease
to protect the joint from corrosion after the nuts
are tightened.
Figure 2b.32
Figure 2b.33
Console-cup holder support
Fuel pump mounting bolts
Fuel pump
“hot” wire
to fuel
pump
Ground wire
for fuel pump
Star
washer
To Next Page
