7. SPECIAL TOOLS
NOTE: There are many specialized tools that
will make servicing the Cub Cadet 4X4 easier.
There are only a couple of tools that are not
likely to be in a technician’s normal tool assort-
ment that necessary to service the 4X4.
7.1. A small metric screw (6m/1.0) (size/thread pitch)
having a minimum thread length of 1.15” (2.9cm)
can be used to spread the sheaves of the driven
clutch. This is necessary if the belt is to be
replaced without removing both pulleys. The
screw can be purchased locally and modified
using a thread die. See Figure 1.14.
7.2. The second tool that is necessary to service the
drive system is a puller that draws the driving
clutch off of the engine crankshaft.
See Figure 1.15.

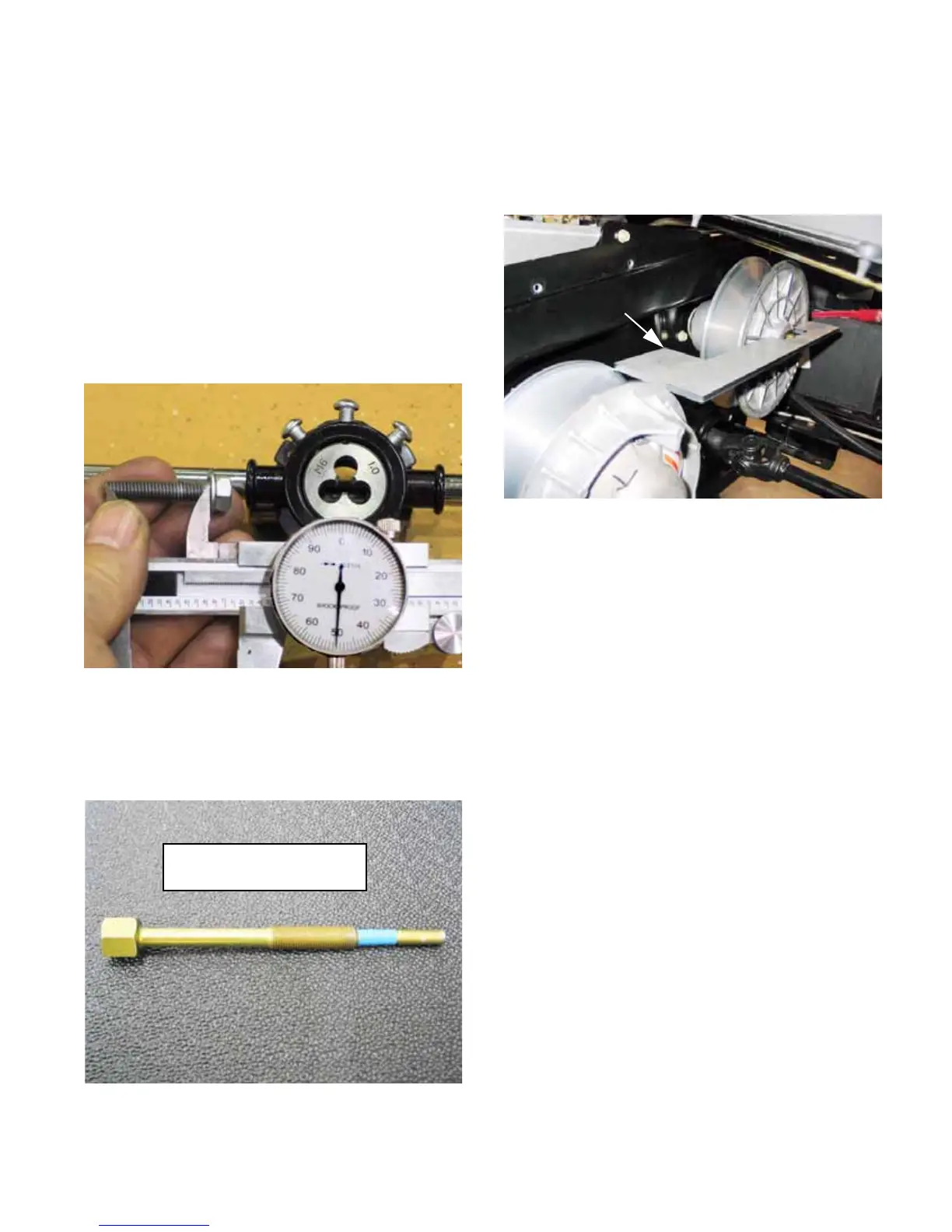

Figure 1.14
Figure 1.15
Driving pulley removal tool:
Part number: 759-04111
7.3. A pulley alignment tool should be used to check
the alignment of the drive pulley and driven pul-
ley after any procedure that may have disturbed
the alignment, or if unusual belt wear occurs.
See Figure 1.16.
Figure 1.16
Alignment tool
P/N: 707-04878
