Chapter 8 - Caterpillar Engine and Related Systems
233
5j. Install the starter by reversing the removal
process.
• Use a magnetic socket, or wedge the screws
into a conventional socket with a sheet of paper.
This will make it easier to reach the threads with
the screws.
• Tighten the screws to a torque of 13 ft-lbs.
(18 N-m).
• Test the starter before reinstalling the splash
shield.
6. Flywheel
NOTE: Contact the partnering Caterpillar dealer
before removing the flywheel from the engine.
6a. Remove the driving clutch as described in
the CVT and Transfer Case chapter.
See Figure 8.35.

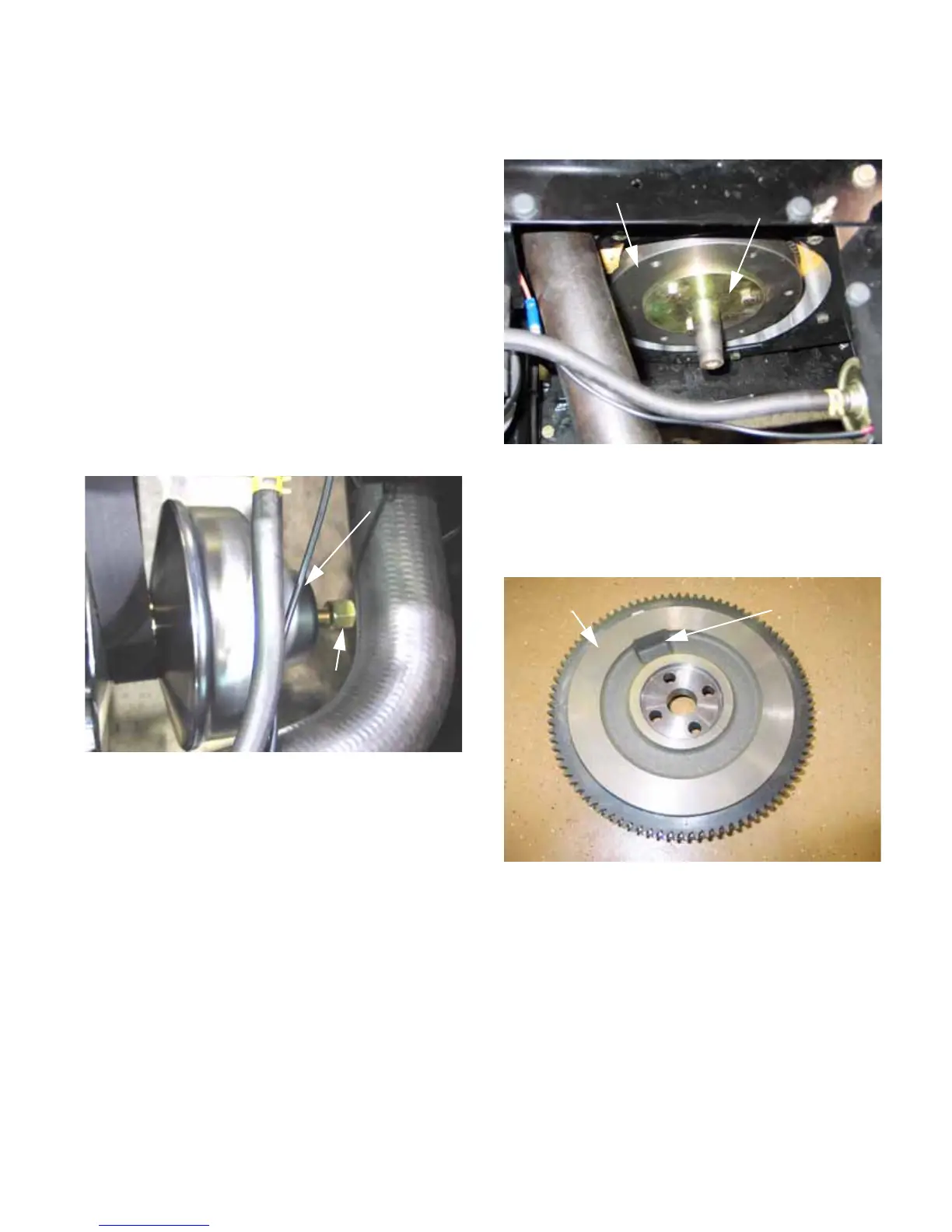

Figure 8.35
Driving clutch
(element)
Puller tool
6b. Remove the tapered shaft adaptor using a
16mm wrench. See Figure 8.36.
NOTE: Caterpillar gives no indication whether
their rotating assemblies are balanced together,
but the cavity in the casting indicates that they
may be. See Figure 8.37.
Figure 8.36
Flywheel
Tapered shaft adaptor
Figure 8.37
Flywheel
Cavity
