Cub Cadet 900 series Professional Shop Manual

ELECTRICAL SYSTEM
105

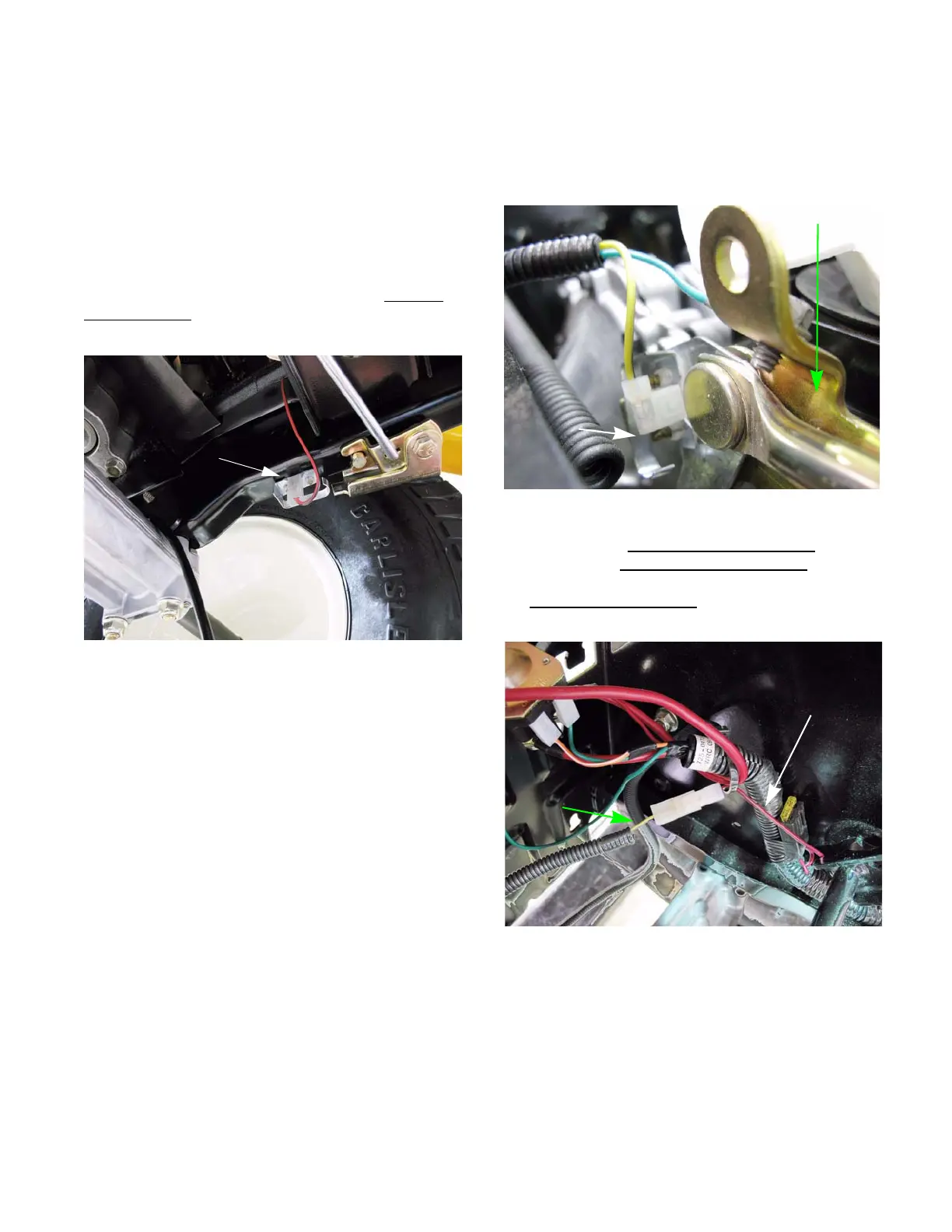

Reverse Safety Switch
The Reverse Safety Switch is a simple metal contact
tang switch.
CVT transmissions
Tractors that have the CVT transmissions have the
reverse switch mounted on the left side of the frame, by
the rear wheel. When the tractor is placed in reverse,
the shift linkage will contact the switch providing a
ground, See Figure 7.17. This switch has a red wire
with black trace that goes directly to the RMC module.
See Figure 7.17.
Figure 7.17
Reverse Safety
Switch
Hyrdostatic transmissions
Tractors equipped with a hydrostatic transmission have
the reverse switch mounted on the transmission, next
to the selector plate. See Figure 7.18.
This switch has a yellow wire with black trace
con-
nected to it. The yellow wire with black trace
plugs into
the main harness by the starter solenoid and becomes
the red wire with black trace
that goes directly to the
RMC module. See Figure 7.19.
Figure 7.18
Reverse
Selector plate
switch
Figure 7.19
Red wire with
black trace
Yellow wire with
black trace
