ENGINE RELATED PARTS
3
This manual will cover the engine accessories that are
manufactured by Cub Cadet.
IMPORTANT: Refer to the engine manufac-
turer’s manual for engine specific service infor-
mation.
Muffler
Remove the muffler by following these steps:
NOTE: The muffler and the exhaust pipes are
welded together. They are replaced as one
assembly.
1. Remove the hood and bumper by following the
steps described in Chapter 4: Body/Chassis.
2. Remove the two screws on each side that
secure the muffler guard bracket.
See Figure 2.1.

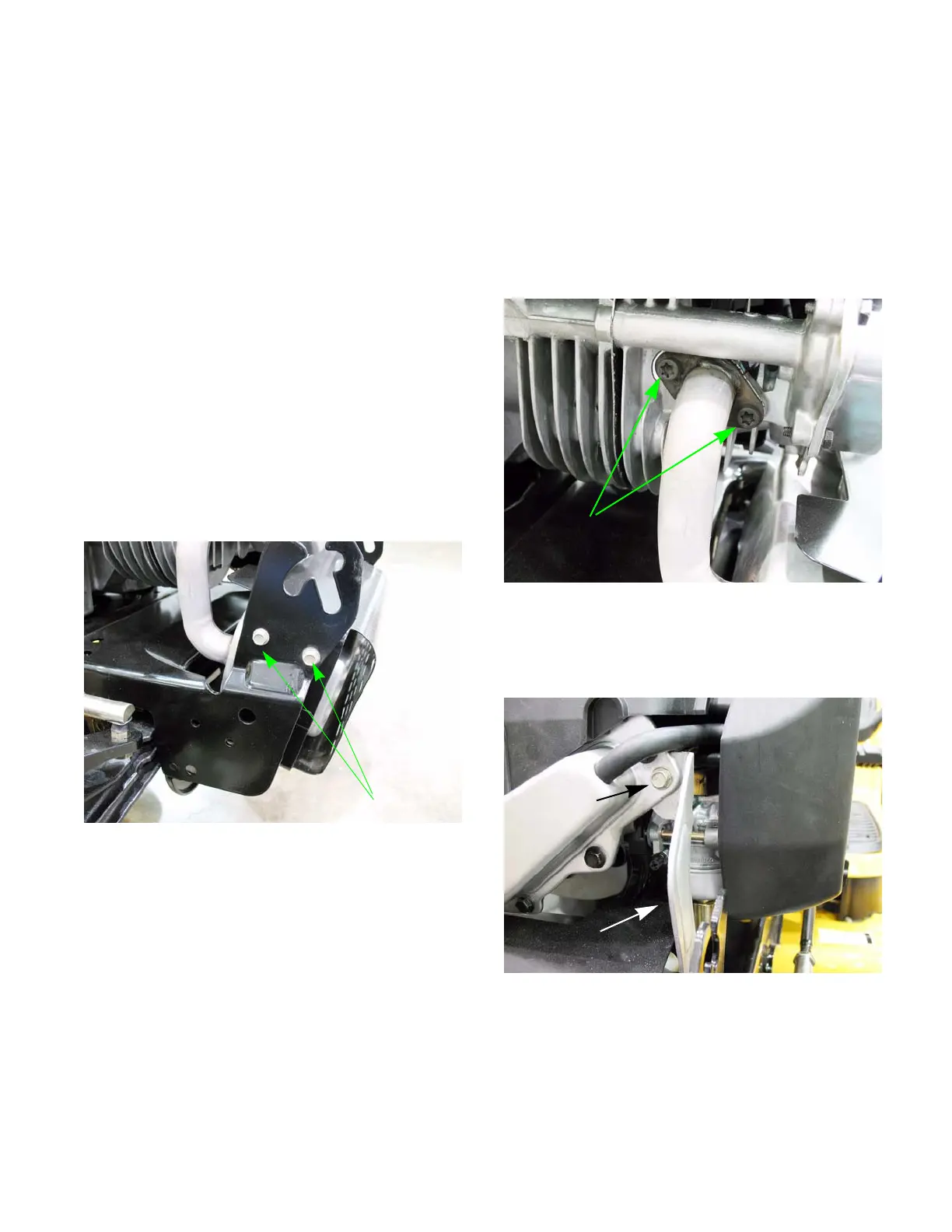

Figure 2.1
Remove these screws
3. Disconnect the muffler from the engine.
For single cylinder engines:
• Remove the two screws that secure the exhaust
pipe to the cylinder head. See Figure 2.2.
• Remove the screw that fastens the muffler sup-
port bracket to the cylinder head.
See Figure 2.2.
Figure 2.2
Remove these
screws
Figure 2.3
Support bracket
Remove this
screw
CHAPTER 2: ENGINE RELATED PARTS
