ENGINE RELATED PARTS
4
For twin cylinder engines:
• Remove the two nuts that secure each exhaust
pipe to the cylinder head. See Figure 2.4.
4. Pull the muffler cover and muffler out together.
5. Rotate the muffler out of the muffler cover.
See Figure 2.5.
6. With the muffler on a work bench, remove the
four screws that hold the muffler deflector to the
muffler. See Figure 2.6.
7. Install the muffler by following the above steps in
reverse order.
8. Test run the tractor before returning to service.

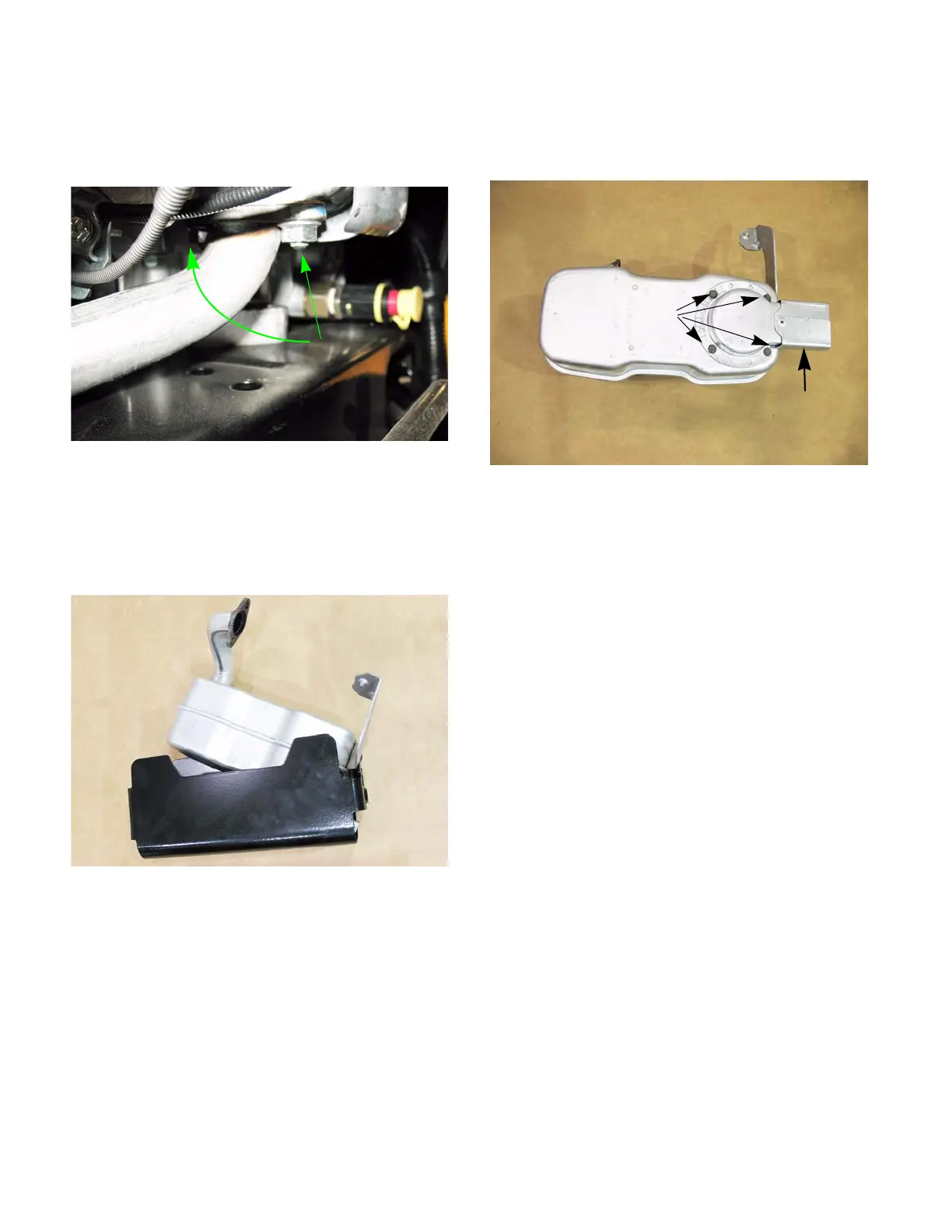

Figure 2.4
Remove these
nuts
Figure 2.5
Figure 2.6
Remove these
screws
Muffler deflector
