RZT-S Zero
A10

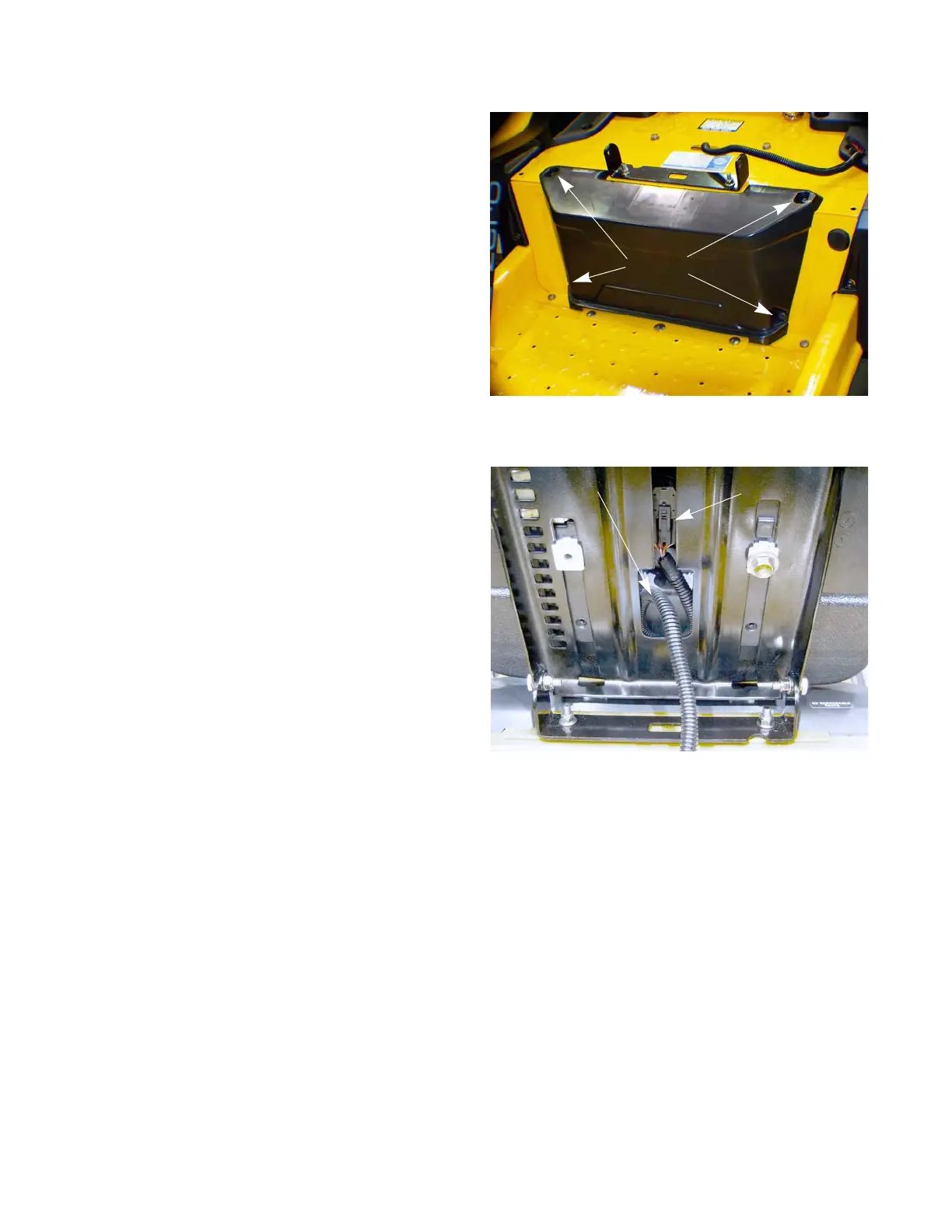

24. Install the front cover using the four black shoulder
screws with a T-30 torx driver.
25. Install the seat:
25a. Place the seat on the seat bracket.
25b. Install the two shoulder bolts and nuts so that
the nuts are on the inboard side.
NOTE: When tightening the shoulder bolts and
nuts, make sure the shoulders are in the
holes of the seat bracket.
25c. Run the seat switch harness through the slot
in the seat bracket.
See Figure 27.
25d. Plug the seat switch harness into the seat
switch.
NOTE: Push the excess wire from the wire harness
into the seat box hole.
26. Install the cargo net.
27. Perform the pre-delivery checks by following the pre-delivery check list.
28. Fully charge the batteries.
29. Test drive the mower in a safe area.
NOTE: Check all safety and control features. Do not put an unsafe mower in to service.
Figure 27
Seat switch harness
Seat switch
