Assembly Instruction Manual
A9

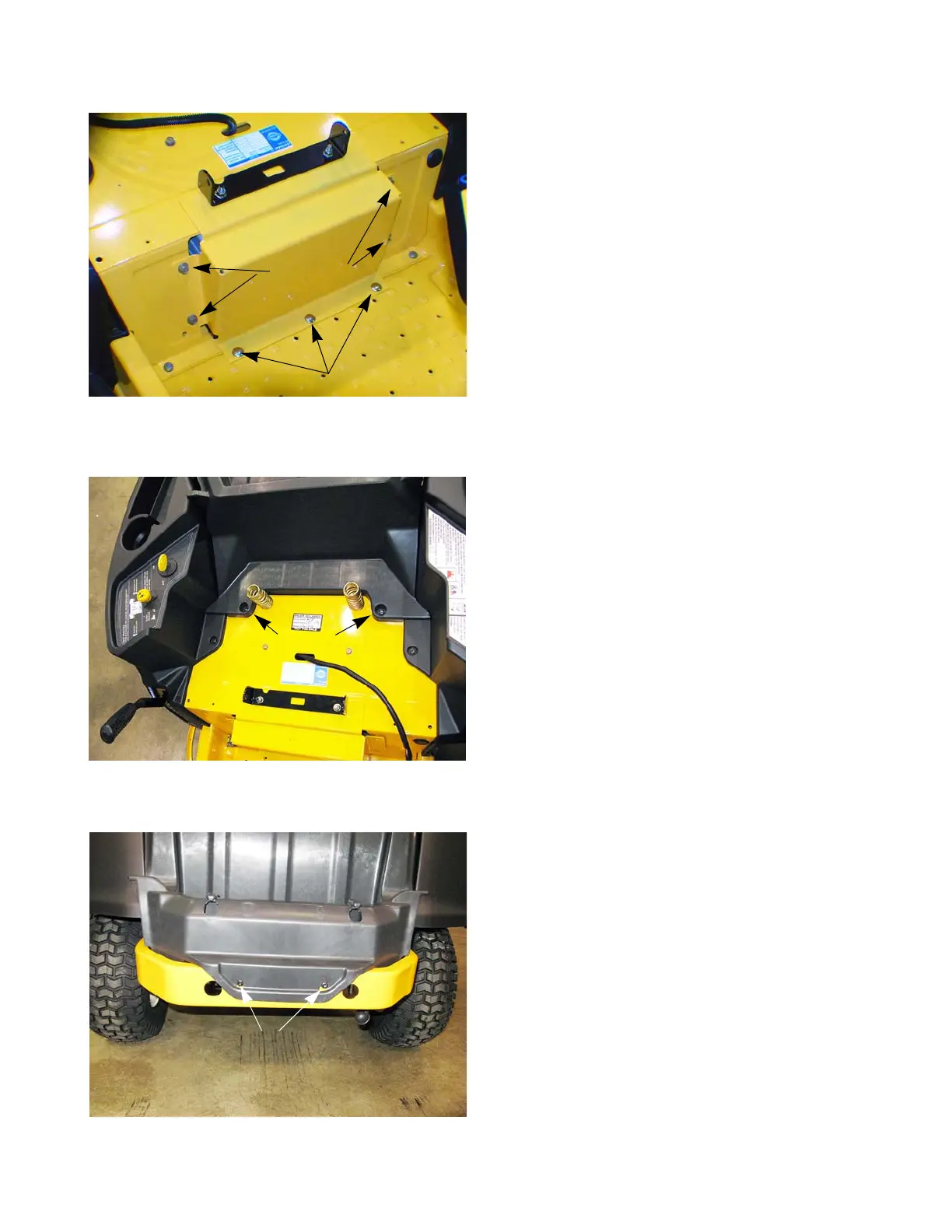

22. Install the front bracket:
22a. Lower the mowing deck to its lowest setting.
22b. Slide the front bracket over the two studs for the
seat bracket.
22c. Install the four self-tapping screws using a 1/2”
wrench.
22d. Install the three carriage bolts.
22e. Install the lock nuts onto the carriage bolts from
the underside of the mower.
22f. Install the seat bracket.
23.Install the rear battery cover:
23a. Install the two front battery cover screws using
T-30 torx driver.
See Figure 24.
23b. Install the two nuts and screws that hold the
rear of the battery cover in place using a T-30
torx driver and a 7/16” wrench.
See Figure 25.
Figure 23
Carriage bolts
Self tapping
screws
To Next Page
