9. Remove the front battery bracket:
9a. Lower the mowing deck to its lowest setting.
9b. Remove the four screws, indicated by the
arrows in Figure 2.20, using a 1/2” wrench.
9c. Reaching underneath the mower’s frame,
remove the nuts from the three carriage bolts
indicated by the arrows in Figure 2.20.
9d. Lift the bracket over the seat bracket studs
and off of the mower.

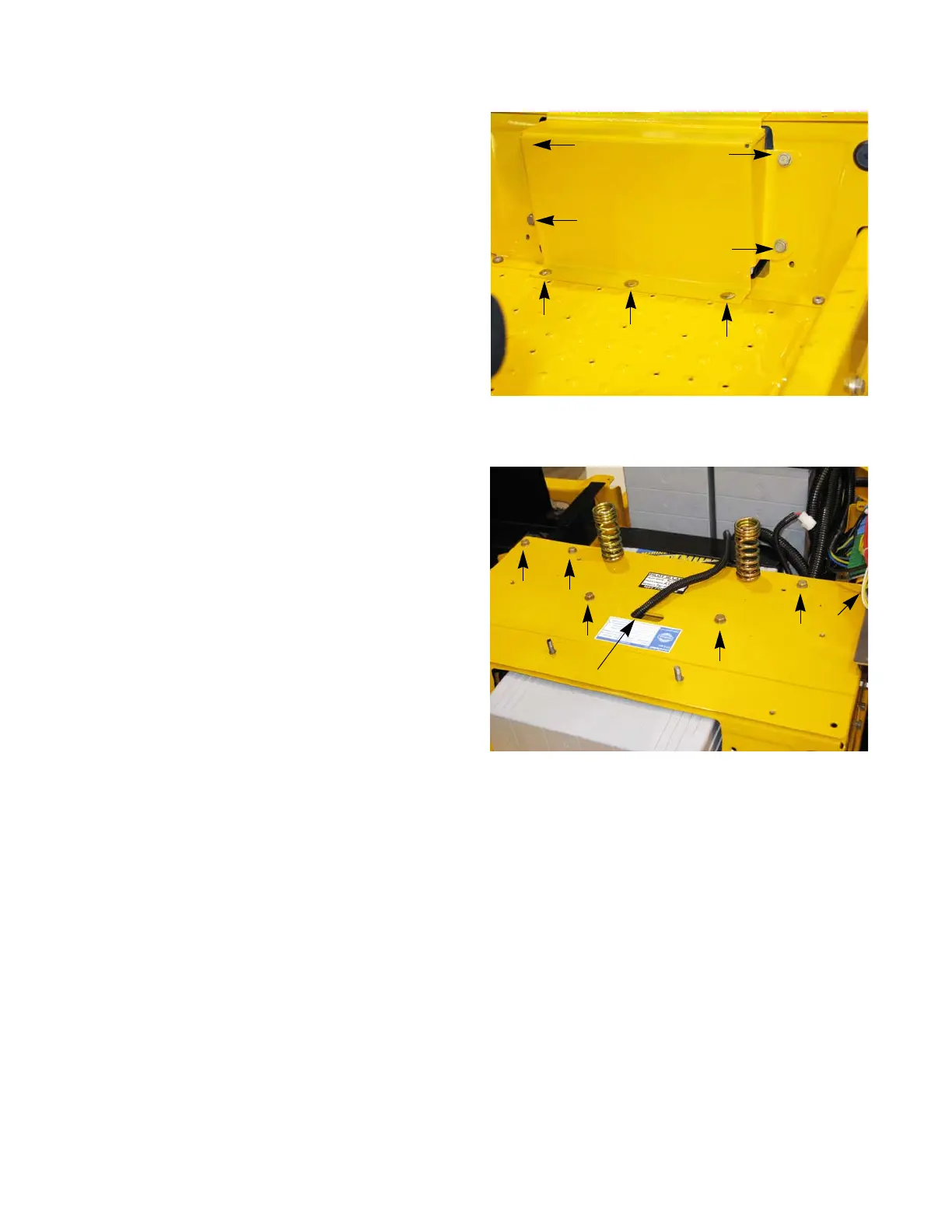

10. Remove the six screws, indicated by the arrows in
Figure 2.21, using a 1/2” wrench.
11. Carefully lift the top plate off of the mower while fish-
ing the seat switch harness thought the slot in the
top plate.
12. Install the top plate by following the previous steps
in reverse order.
13. Test drive the mower in a safe area before returning
it to service.
Figure 2.21
Seat switch harness
