Seat box front main section
NOTE: There are only two reasons to remove the seat box front main section:
• To replace the deck lift shaft
• Physical damage to the seat box front main section
To remove/replace the seat box front main section:
1. Disconnect the battery pack’s positive lead from the
contactor assembly by following the procedures
described in the left pod section of this chapter.
2. Remove the seat box top plate by following the pro-
cedures described in the previous section of this
chapter.
3. Remove the front (4
th
) battery:
3a. Slide the battery out of the seat box assembly.
See Figure 2.22.
3b. Disconnect the negative cable from the battery.
3c. Disconnect the lead with the blue tape from the
positive terminal of the battery using a 1/2”
wrench.
3d. Remove the battery from the mower.

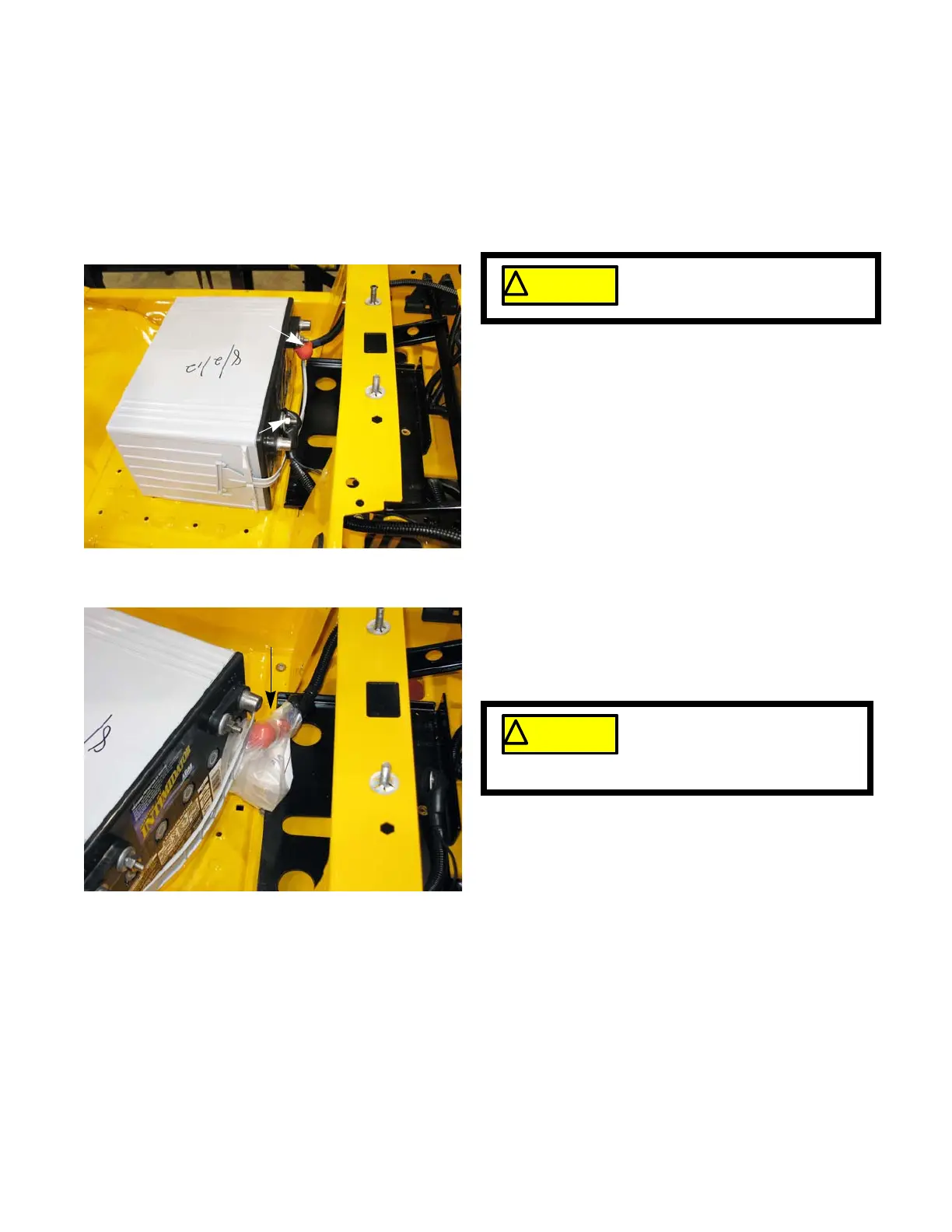

Figure 2.22
Blue cable
Negative cable
The RZT-S Zero is equipped with a
48 volt system. Removing the pods
will expose the high voltage wiring.
Wrap the exposed cable end with
electrical tape or a plastic bag to
help prevent the cable from con-
tacting the frame. See Figure 2.23.
