4. Disconnect the negative cable from the master
ground bus using a 9/16” wrench.
See Figure 2.24.
NOTE: The master ground bus has an over sized
stud to minimize the possibility of improper
wiring.
5. Fish the negative cable through the opening in the
seat box assembly.
6. Fish the positive cable through the opening in the
seat box assembly.
7. Disconnect the VCM harness from the contactor
assembly.
See Figure 2.25.
8. Fish the VCM through the hole in the seat box
assembly.
9. Fish the PTO switch/key switch harness through the
opening in the seat box assembly.
See Figure 2.26.

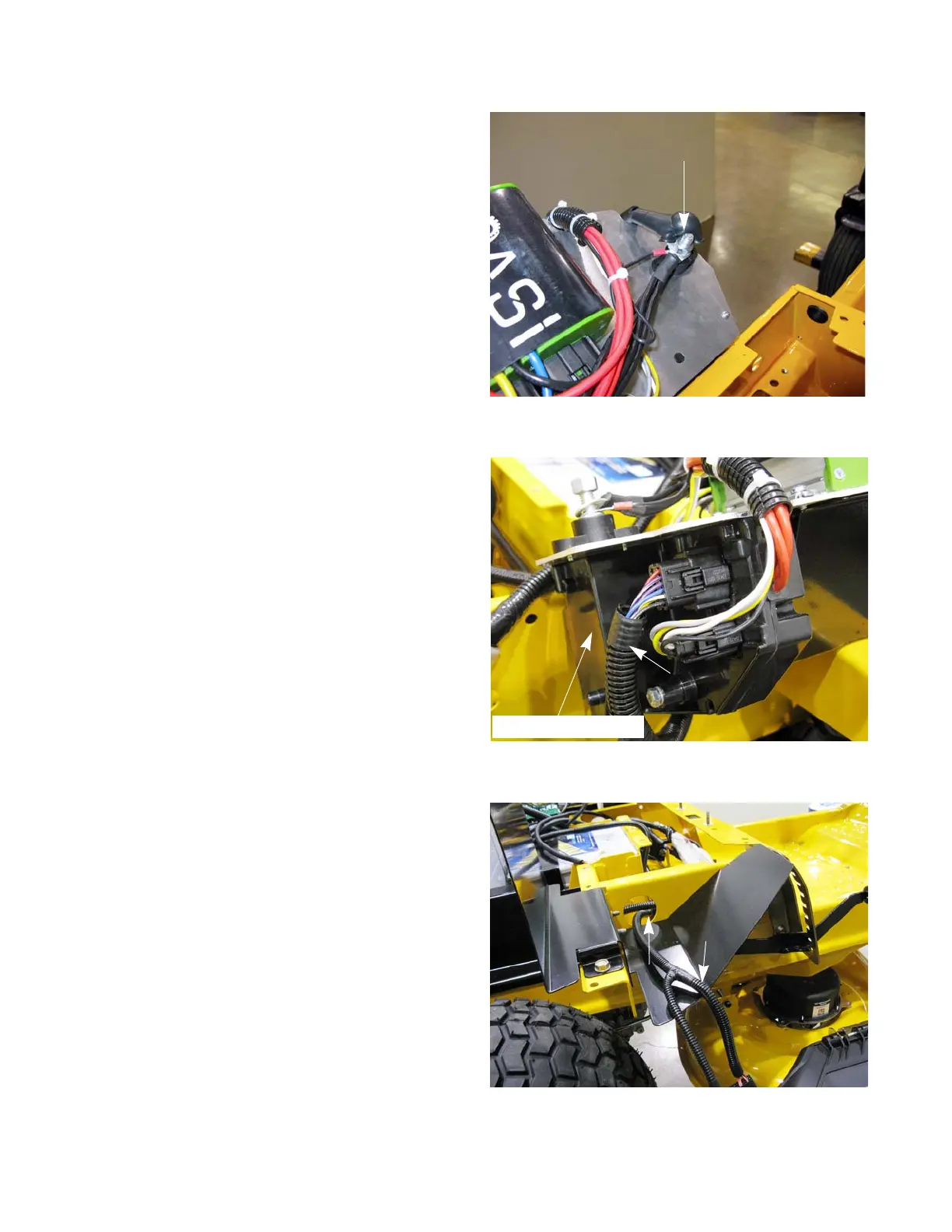

Figure 2.24
Master ground bus
Figure 2.25
VCM harness
Contactor assembly
Figure 2.26
PTO switch/
Key switch
harness
