10. Remove the two screws, indicated by the arrows in
Figure 2.27, that hold down the front battery tray
using a 1/2” wrench.
11. Slide the battery tray out of the seat box assembly.
12. Remove the hex screw from the front of the seat box
assembly using a 1/2” wrench.
See Figure 2.28.
13. Remove the two pan head screws using a T-40 torx
driver.
14. Remove the hex screw, indicated by the arrows in
Figure 2.29, that holds the left side of the front main
seat box assembly to the frame using a 1/2” wrench.

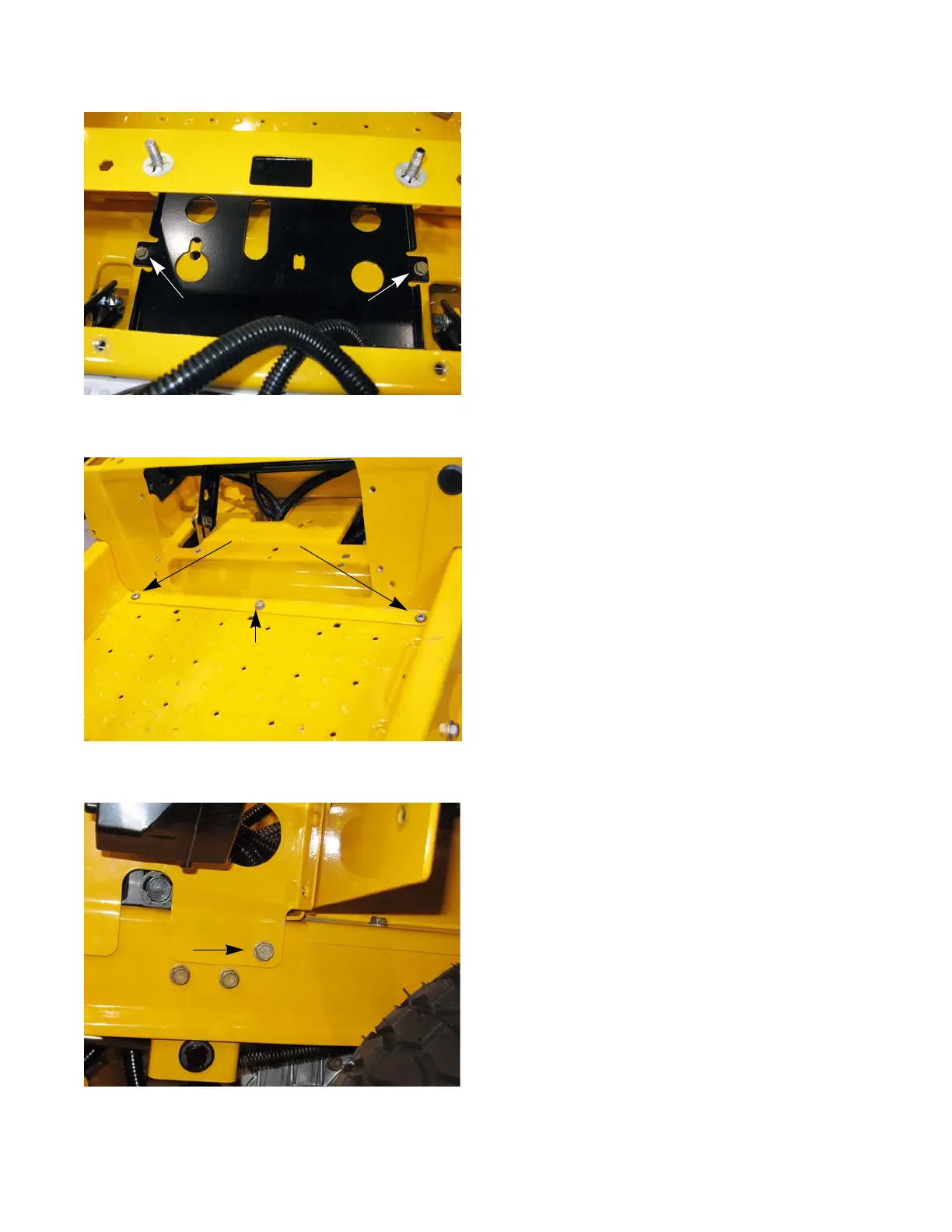

Figure 2.27
Figure 2.28
Hex screw
Torx screw
Figure 2.29
