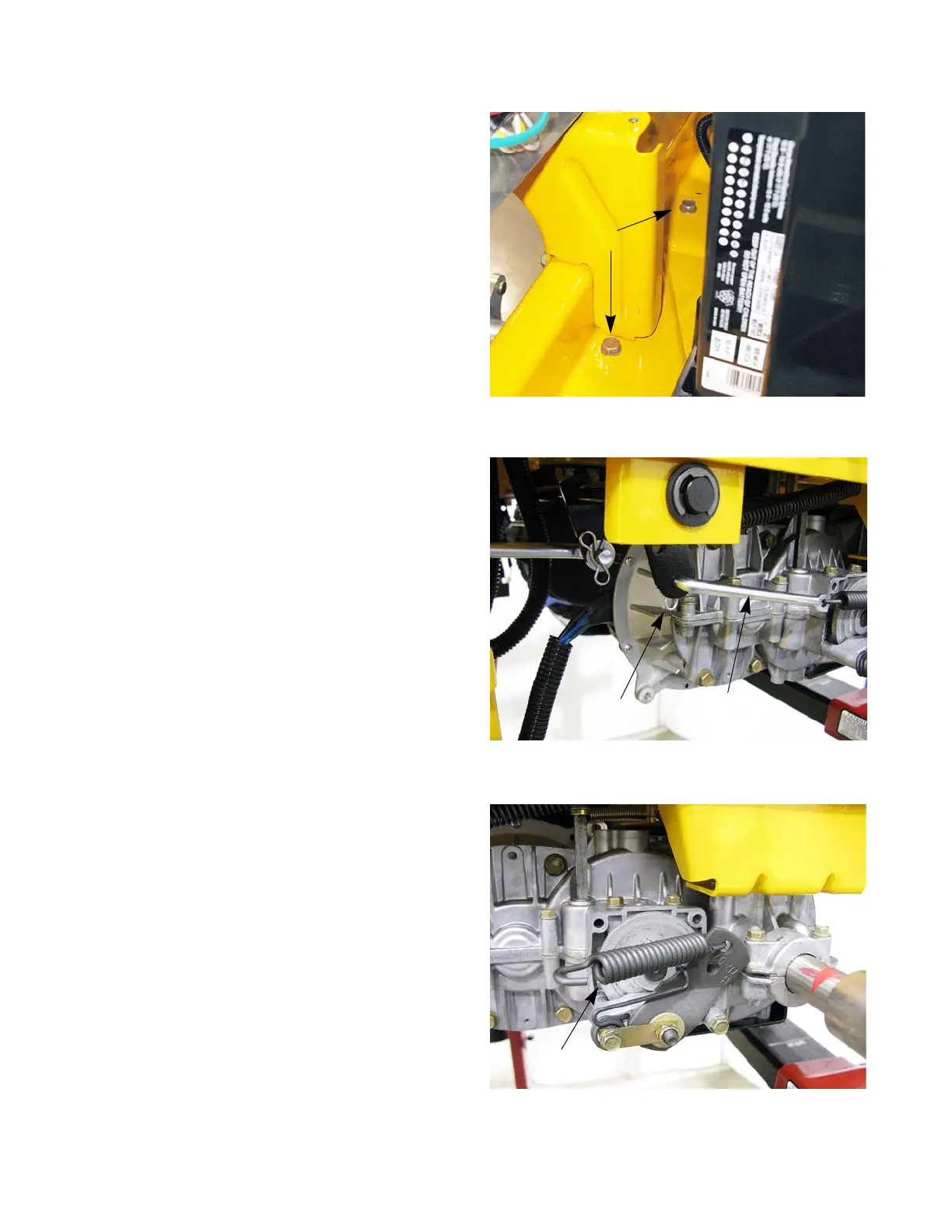

6. Remove the two screws that hold the top of the drop
axle mounting bracket to the frame using a 1/2”
wrench.
See Figure 3.16.
7. Disconnect the brake rod by removing the bow tie
clip and sliding the rod out of the brake shaft’s bell
crank.
See Figure 3.17.
8. Unhook the brake rod from the brake spring.
9. Unhook the brake spring from the cam arm.
See Figure 3.18.
Figure 3.16
Screws
Figure 3.17
Brake rod
Bowtie clip
Figure 3.18
Brake spring
