Cub Cadet RZT-S Zero Shop Manual

Brakes and Drive System
31
10. Disconnect the brake shaft return spring.
See Figure 3.19.
11. Unhook the spring from the drive release rod.
See Figure 3.20.
12. Slide the rod out of the mower.
13. Safely support the drop axle assembly.
14. Remove the two screws that hold the side of the drop
axle mounting bracket to the frame using a 1/2”
wrench.
See Figure 3.21.

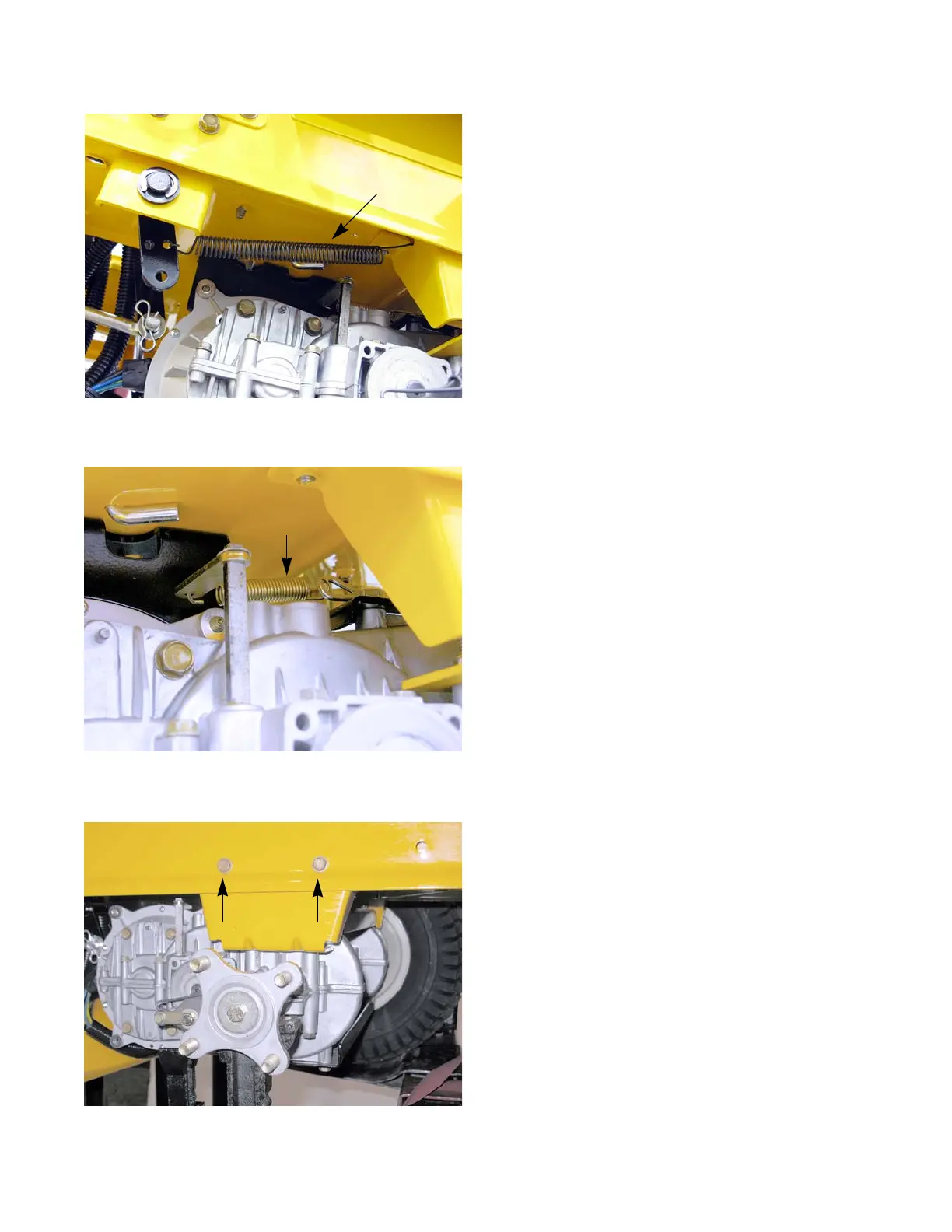

Figure 3.19
Brake shaft return spring
Figure 3.20
Spring
Figure 3.21
Screws
