15. Remove the two screws that attach the top support
plate to the drop axle using a 1/2” wrench.
See Figure 3.22.
16. Remove the bottom support plate. See Figure 3.23.
17. While supporting the drop axle assembly, remove
the two nuts that hold the motor bracket to the frame
using a 1/2” wrench.
See Figure 3.24.
18. Lower the drop axle assembly out of the mower.

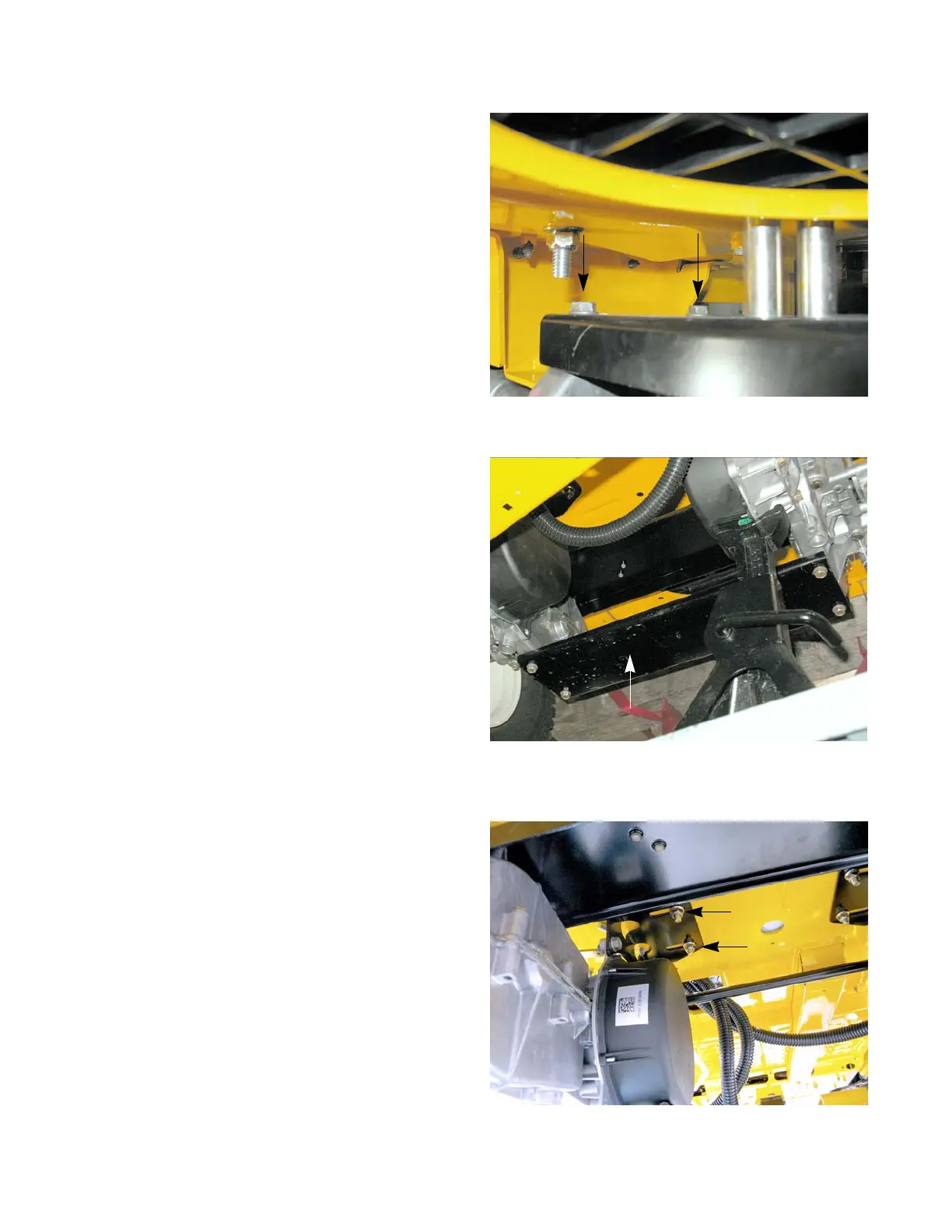

Figure 3.22
Screws
Figure 3.23
Bottom support plate
Figure 3.24
Nuts
