Cub Cadet SC2450 - Check Hydraulic Hoses (Implement Control, Lift Cylinder, Oil Cooler)

14-21
14. PERIODIC SERVICE
Sc2450 Operator’s Manual

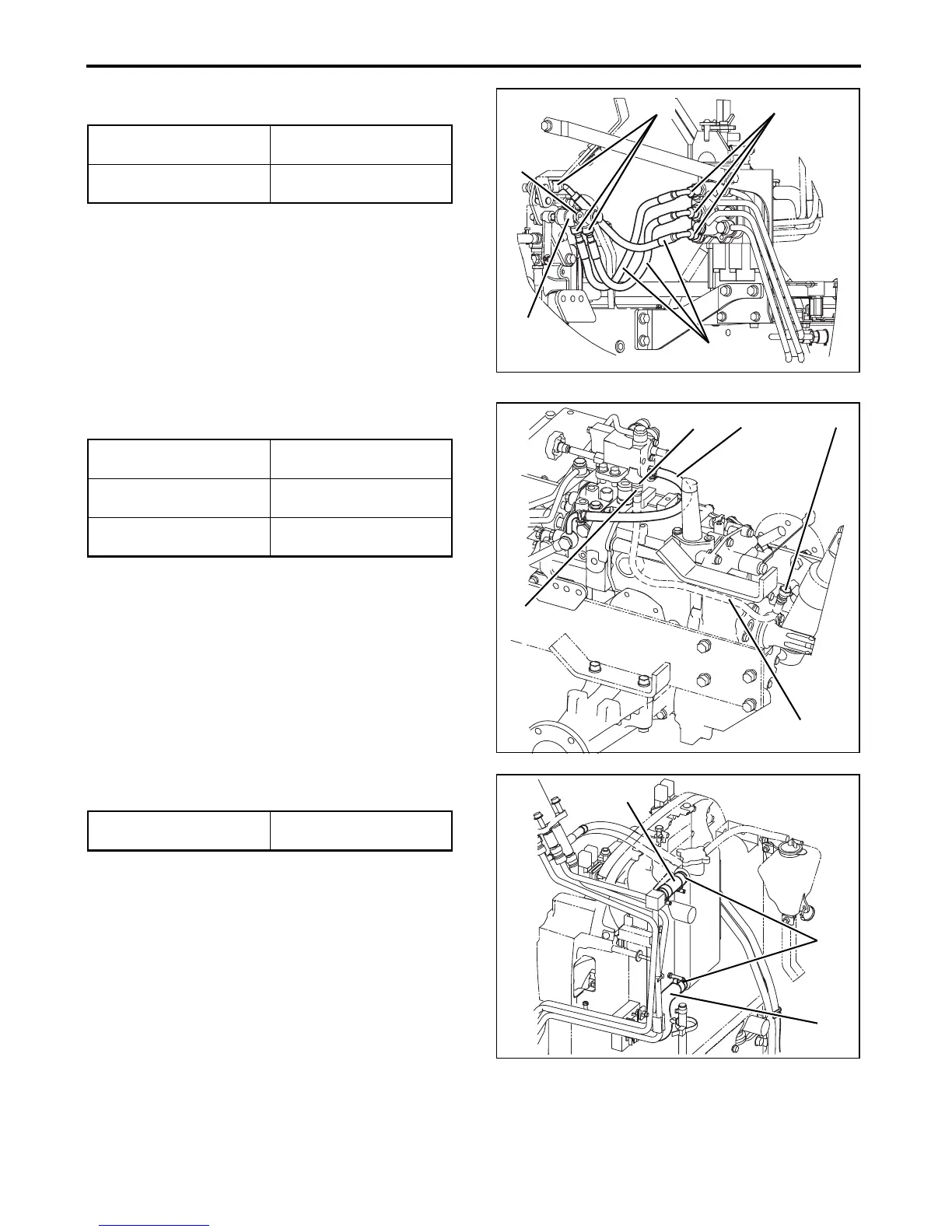

2. Implement Control Valve Hoses
(A) Implement Control Valve hose
NOTE
●When changing the orientation of (c) is necessary
for replacing the hose, it may be preferable to
loosen the pipe fitting bolt. In such a case, replace
the copper gasket.
3. Lift Cylinder Hose and Drain Hose
(A) Lift cylinder hose
(B) Drain hose
4. Oil Cooler Hoses
(A) Oil cooler hose
(a) 9/16UNF - 14.5 23 - 27 N•m
(17.0 - 19.9 ft•lbs)
(b) 9/16UNF - 14.5 39 - 49 N•m
(28.8 - 36.1 ft•lbs)
(a) G1/4 22.6 - 27.5 N•m
(16.7 - 20.3 ft•lbs)
(b) Connector PF1/4 22.6 - 27.5 N•m
(16.7 - 20.3 ft•lbs)
(c) G1/4 22.6 - 27.5 N•m
(16.7 - 20.3 ft•lbs)
(a) Clamp 2.5 - 3.4 N•m
(1.8 - 2.5 ft•lbs)
3014932
(a)
(A)
(a)
(b)
(c)
3014931
(a)
(A)
(c)
(b) (B)
3014933
(a)
(A)
(A)
