10-2
10. 3-POINT HITCH (Option)
Sc2450 Operator's Manual

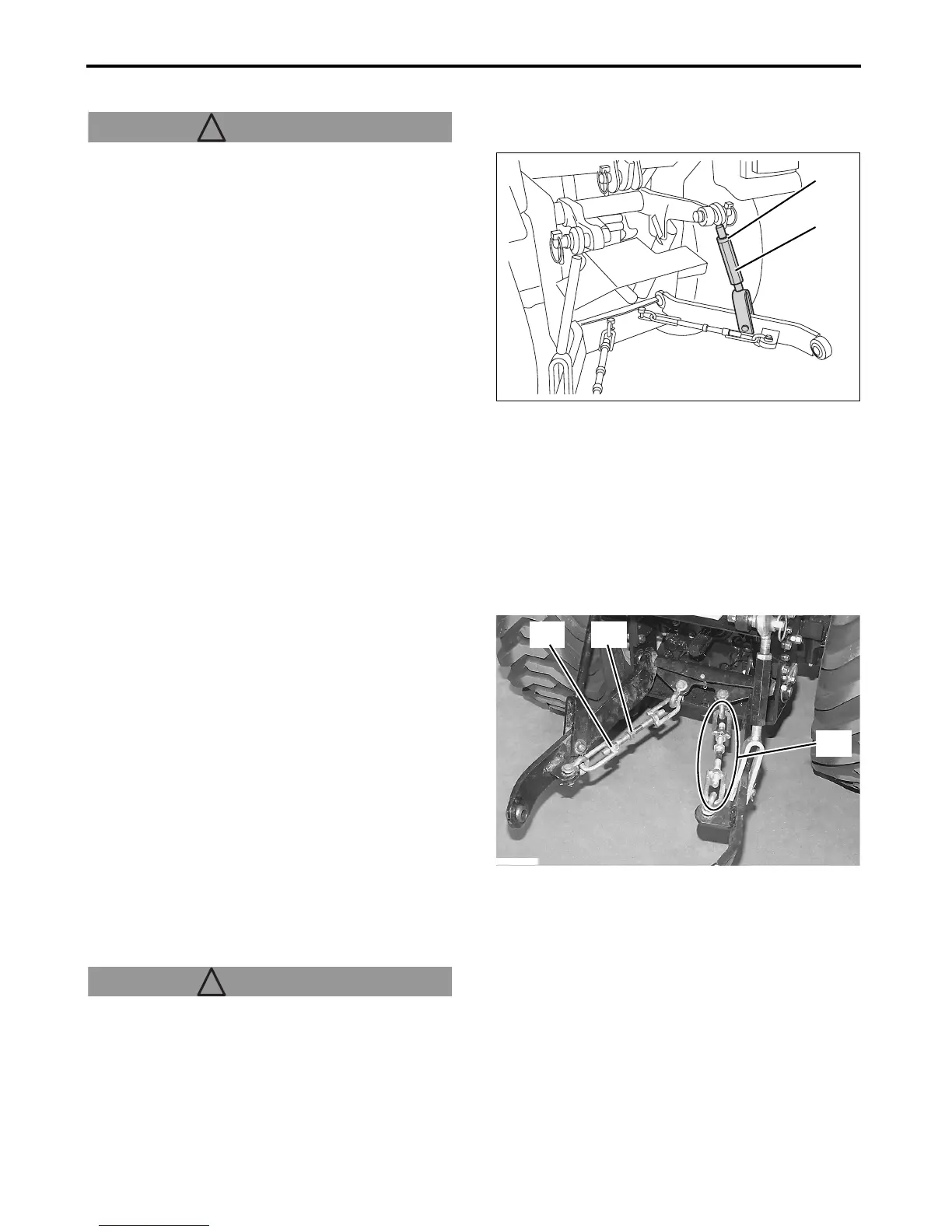

■ Right Lift Link
●Chock the four wheels to secure the tractor,
before servicing the right lift link.
1. Lower the rear mounted implement.
2. Safely stop the machine.
3. Loosen the locknut.
4. Turn the turnbuckle to adjust the right lift link
length until the implement mounted to the 3-point
hitch is level.
5. Retighten the locknut.
(A) Locknut (Option)
(B) Turnbuckle (Option)
■ Top Link
For adjusting the posture of the implement, use the
top link. The posture can be adjusted by turning the
turnbuckle to elongate or contract the link.
Installation position and length of the top link depend
on the implement. Adjust them according to the
instruction manual of the implement.
■ Sway Link
Adjust lateral sway of the implement by turning the
turnbuckle of the sway links to elongate or contract
the sway links.
1. Lower the rear mounted implement.
2. Safely stop the machine.
3. Loosen the locknut.
4. Adjust the sway link length by turning the
turnbuckle, so that the implement has correctly
lateral sway.
5. After adjusting the lateral sway of the implement,
tighten the locknut.
(A) Locknut
(B) Turnbuckle
(C) Sway link
■ Hitch
●Do not tow anything by the use of the top link
or rear axle. Otherwise, the tractor can tip over
to cause serious injury or death.
●The hitch hole should only be used for towing
light loads. (Maximum towing load: 552 lb. (250
kg))
●For maximum allowable weight to be towed,
see “Chapter 4. IMPLEMENT CAPACITIES”.
! WARNING
3014921
(A)
(B)
P3014908
(A) (B)
(C)
! WARNING! WARNING
To Next Page
