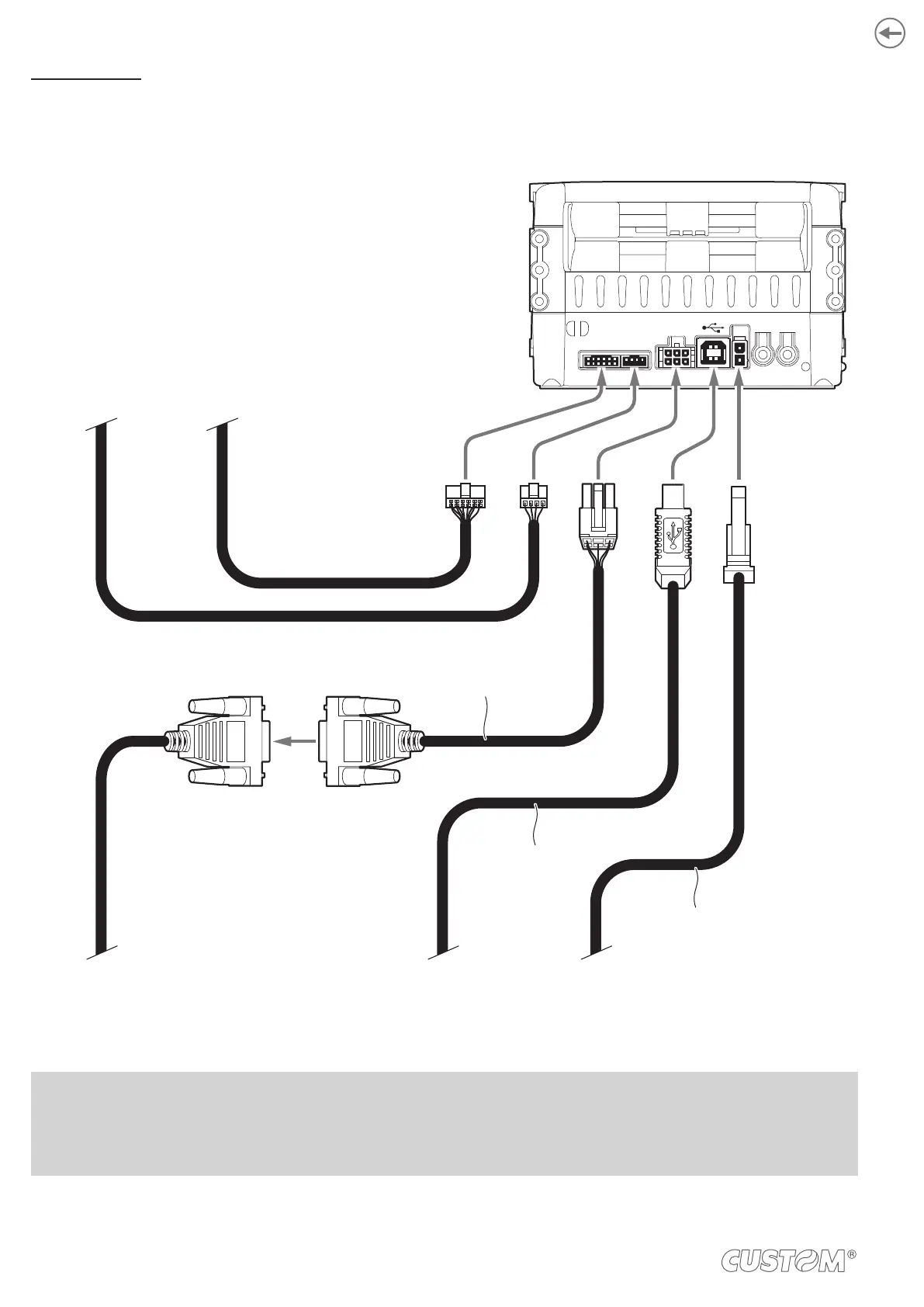

VKP80III REAR
When the RS232 and USB communication cables are connected to the device at the same time, communication takes
place via the USB port.
RS232
LOW
PAPER
I/O
24Vdc
PC
USB device
USB
standard cable
PC
serial device
Adapter cable
MICROFIT-6PIN/DB9
(optional)
Power supply
Power supply cable
(optional)
External
low paper
External
device
ATTENTION:

connector on control board bears the weight of the cables.
In some using conditions, we recommend the installation of a ferrite core on the power supply cable.
