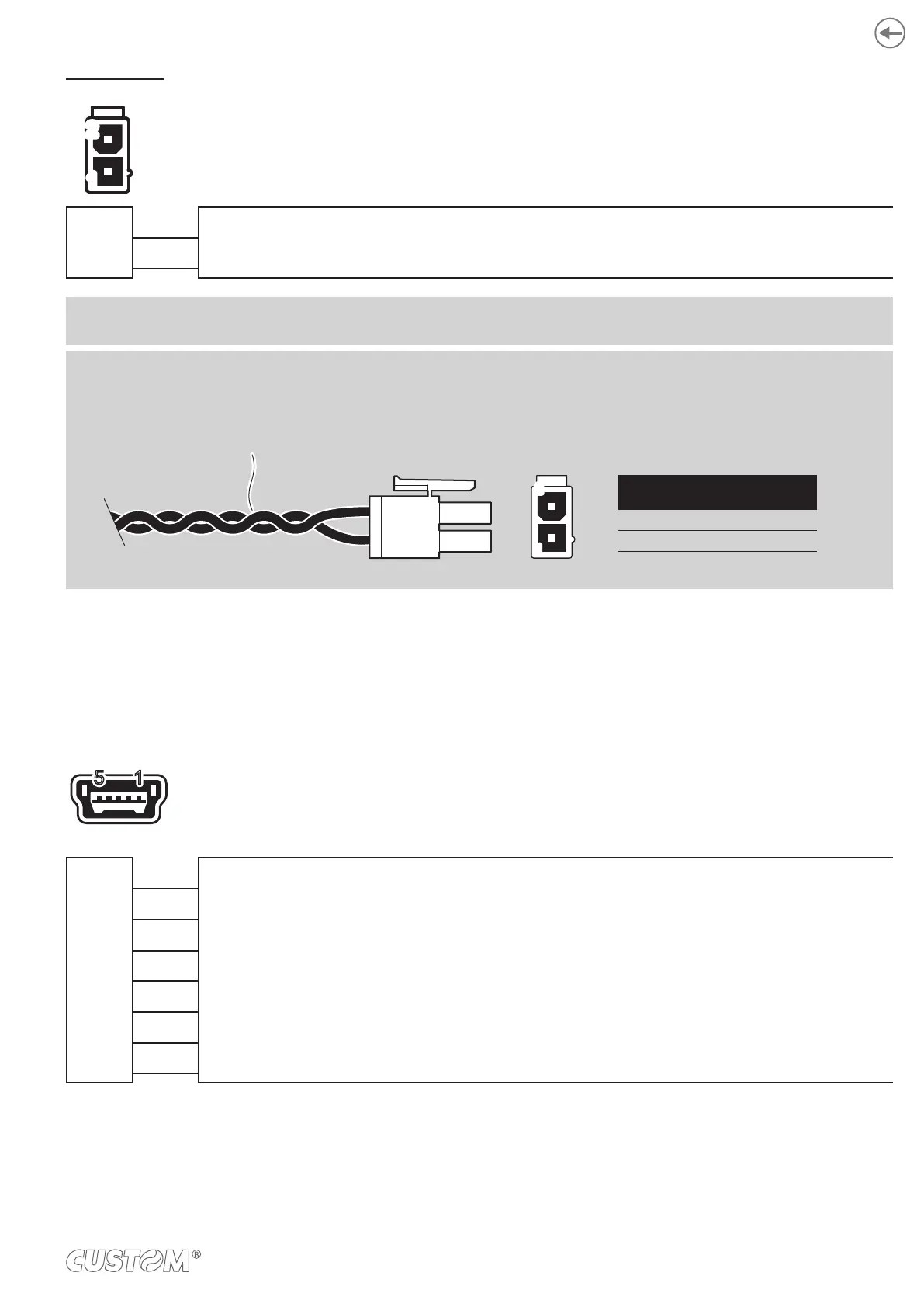

POWER SUPPLY
Male Molex connector series 5569 vertical (n° 39-30-1020)
J13
1 +24 Vdc
2 GND
ATTENTION:
Respect power supply polarity.
NOTE: Power supply cable

Female Molex connector
series 5557 (n.39-01-3022)
GNDBlack 2
SignalCable
color
PIN
+24VRed
1
2
1
Power supply cable
5 1
MINI-USB INTERFACE
Female Mini-USB type B connector
J2
1 USB0_VBUS (in)
2 USB0_D- (in/out)
3 USB0_D+ (in/out)
4 n.c.
5 GND
SH1 SHIELD
SH2 SHIELD
31
