1.1 CONNECTIONS
1.1.1 Power Supply

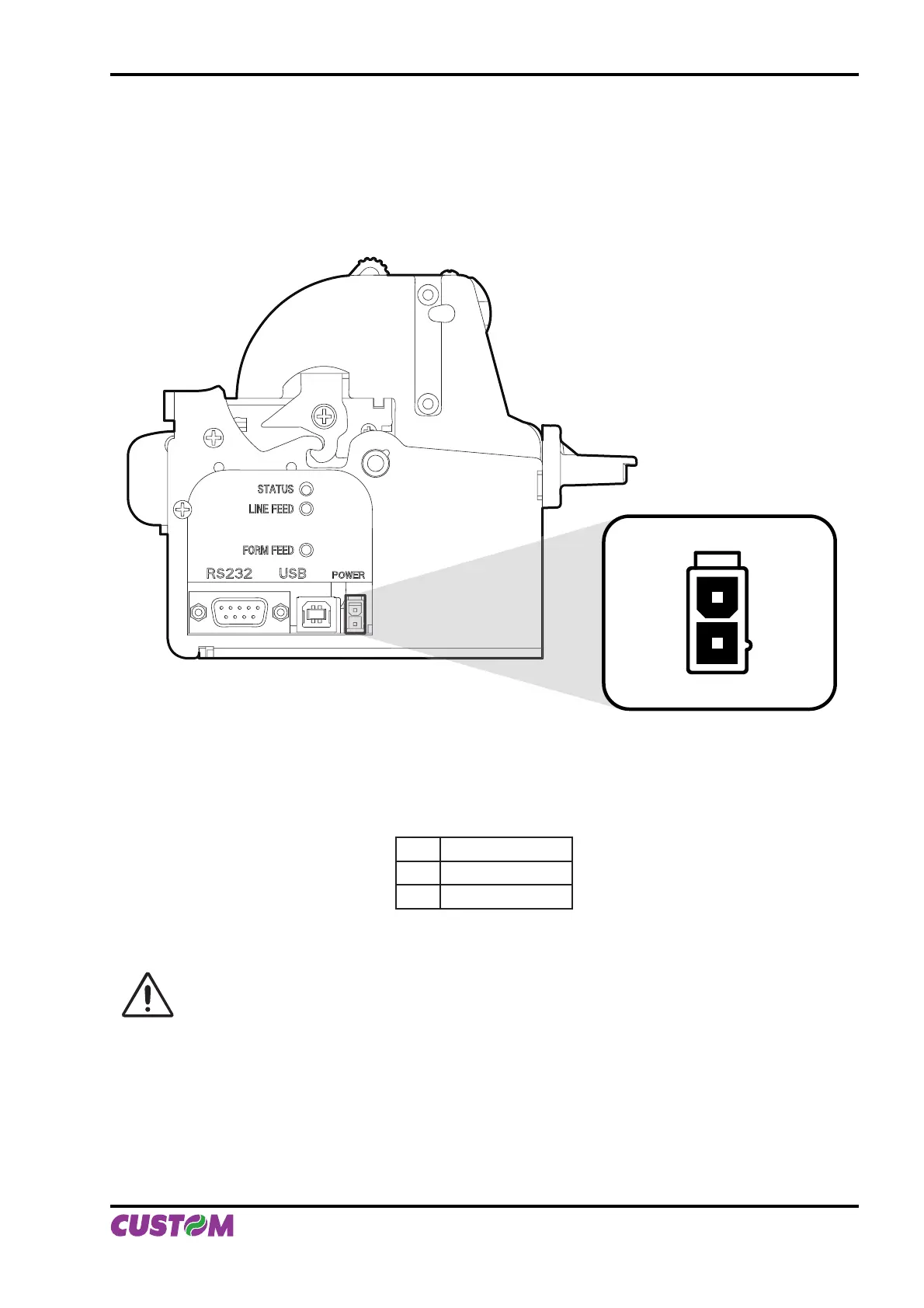

The printer is equipped with a 2 pin male molex connector series 5569 (Vertical), for the power supply (see
Fig. 1.1). The connector pin confi guration is as follows :
1
2
Model no. type: Header : 90° Molex series 5569 (no. 39-30-1020)
Housing: Molex series 5557 (no. 39-01-3022)
PIN SIGNAL
1 +24 V
2 GND
WARNING:
Respect power supply polarity.
(Fig.1.1)
(Tab.1.1)
1. INSTALLATION AND USE
User Manual VKP80II 1-1
