In the following table are reported the length recommended for the tickets using of the retracting function:
TICKET LENGTH TICKET PRESENTATION (MAX)
70 mm 10 mm
80 mm 10mm ÷ 30mm
80mm ÷ 220mm 10mm ÷ 30mm

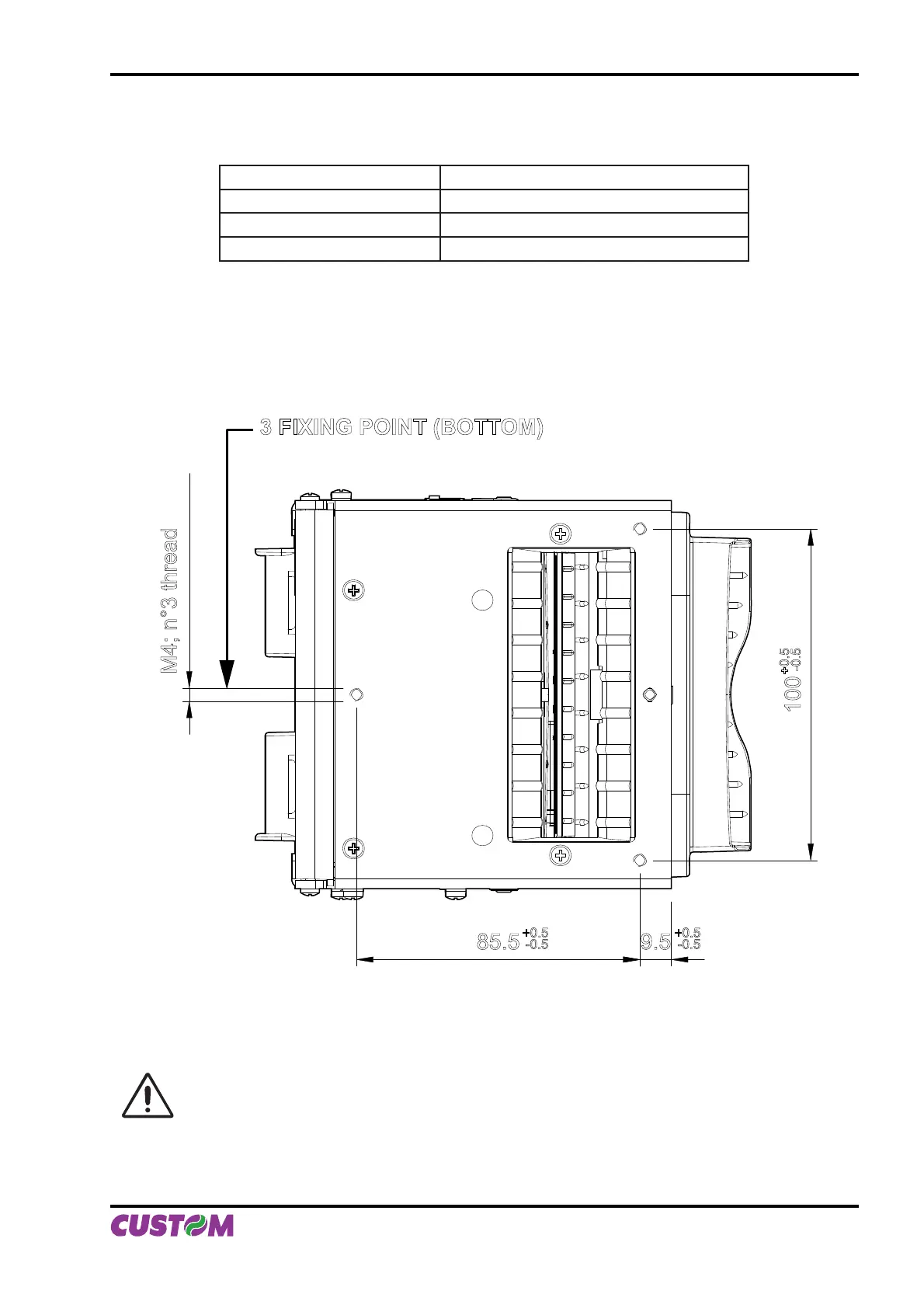

1.5.6 Notes for installation and lower fastening of printer
100
85.5
+0.5
-0.5
+0.5
-0.5
+0.5
-0.5
9.5
M4; n°3 thread
3 FIXING POINT (BOTTOM)
ATTENTION
It’s very important to consider the screws length to not damage the internal sensor board near
the lower fi xing holes (see fi g. 1.15).
(Fig.1.14)
1. INSTALLATION AND USE
User Manual VKP80II 1-11
