B.3 CHARACTERISTICS OF THE PAPER.
B.3.1 Dimensions and position of the notch.
The notch must be positioned on the non-heat sensitive side of the paper as shown in fi gures B.7, B.8, B.9
and B.10, showing some fac-similes of paper with alignment notch depending on the width of the paper
used.

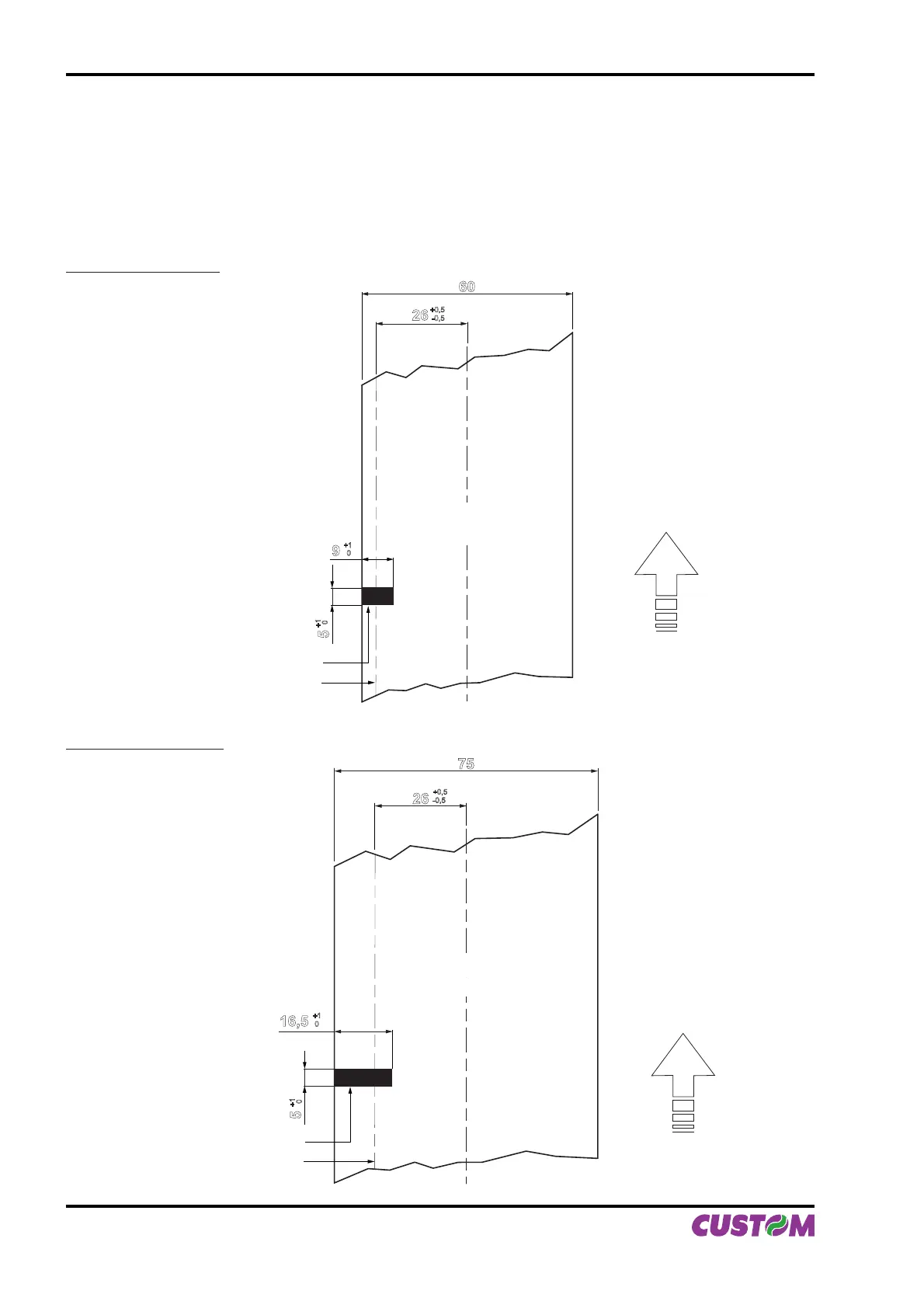

Notch on 60mm paper
60
9
+1
0
26
+0,5
-0,5
5
+1
0
Direction
of paper
feed
Notch sensor axis
Black notch
NON HEAT
SENSITIVE Side
Notch on 75 mm paper
16,5
+1
0
5
+1
0
75
26
+0,5
-0,5
Direction
of paper
feed
NON HEAT
SENSITIVE Side
Notch sensor axis
Black notch
(Fig.B.7)
(Fig.B.8)
