Custom Engineering VKP80II - Notes for Installation and Use of Printer with Retracting

1.5.5 Notes for installation and use of printer with retracting
125.5
38.5 11
149.5
45.5
70.5
121.2
52.9 8.1
100
85.5
+0.5
-0.5
+0.5
-0.5
+0.5
-0.5
80 (82,5)
9.5
M4; n°3 thread
90° max
N.B.: “Ejector outfeed”: When assembling the printer on the machine, be sure to leave ad-
equate space for the paper loop below. If this is not done, the ticket could crease at the cutting
area, causing the ticket to jam in the paper outfeed opening.

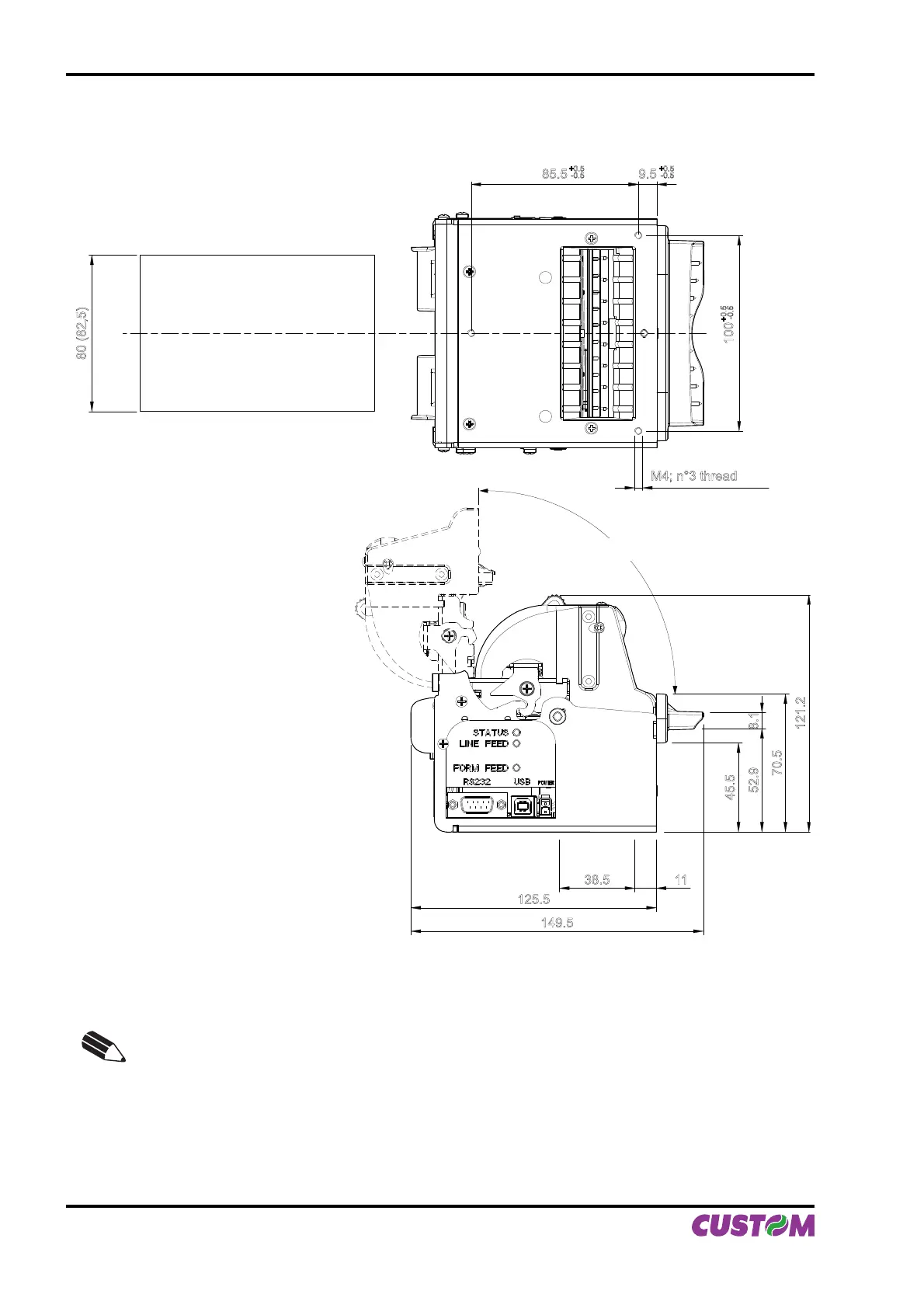

(Fig.1.13)
