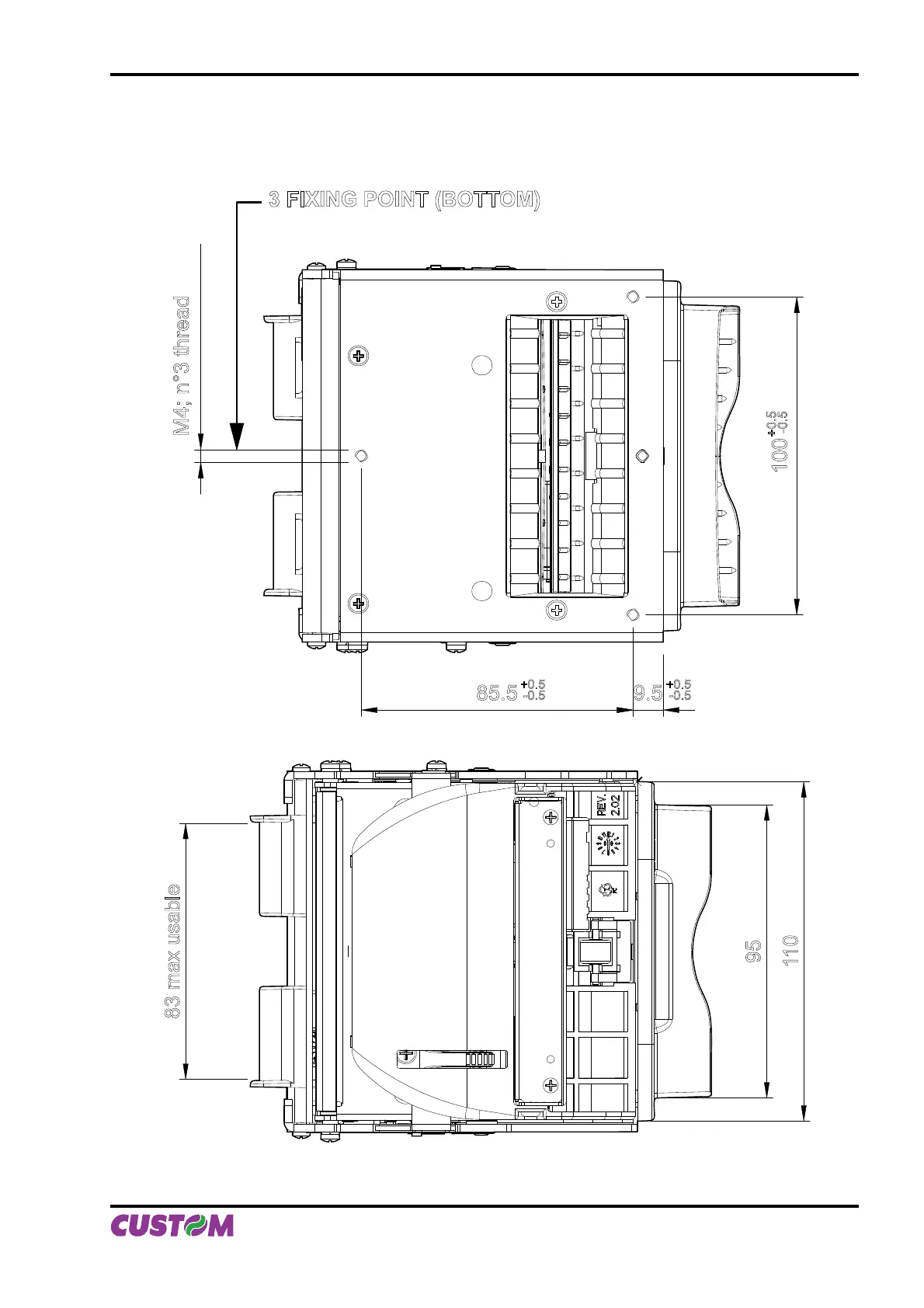

3.2 DIMENSIONS
In the following fi gures shows the dimensions of the printer.
100
85.5
+0.5
-0.5
+0.5
-0.5
+0.5
-0.5
9.5
M4; n°3 thread
3 FIXING POINT (BOTTOM)
83 max usable
95
110
Bottom view
Top view
(Fig. 3.1)
(Fig. 3.2)
