CreatinG a Part ProGraM
Most versions of CybTouch 6 for press have Tools Management (see page 19), which
can be activated or deactivated (see Tooling management, page 15). However, some
versions, depending on the press brake manufacturer, do not have tools management at
all. This changes a bit the procedure, and you can find them here:
• Bending with Tools Management,
• Bending without Tools Management (see page 26).
In this chapter the machine is considered operational: machine parameters,
tools (see Tools Management, page 19) are already configured and
programmed.
bendinG wiTh ToolS ManaGeMenT

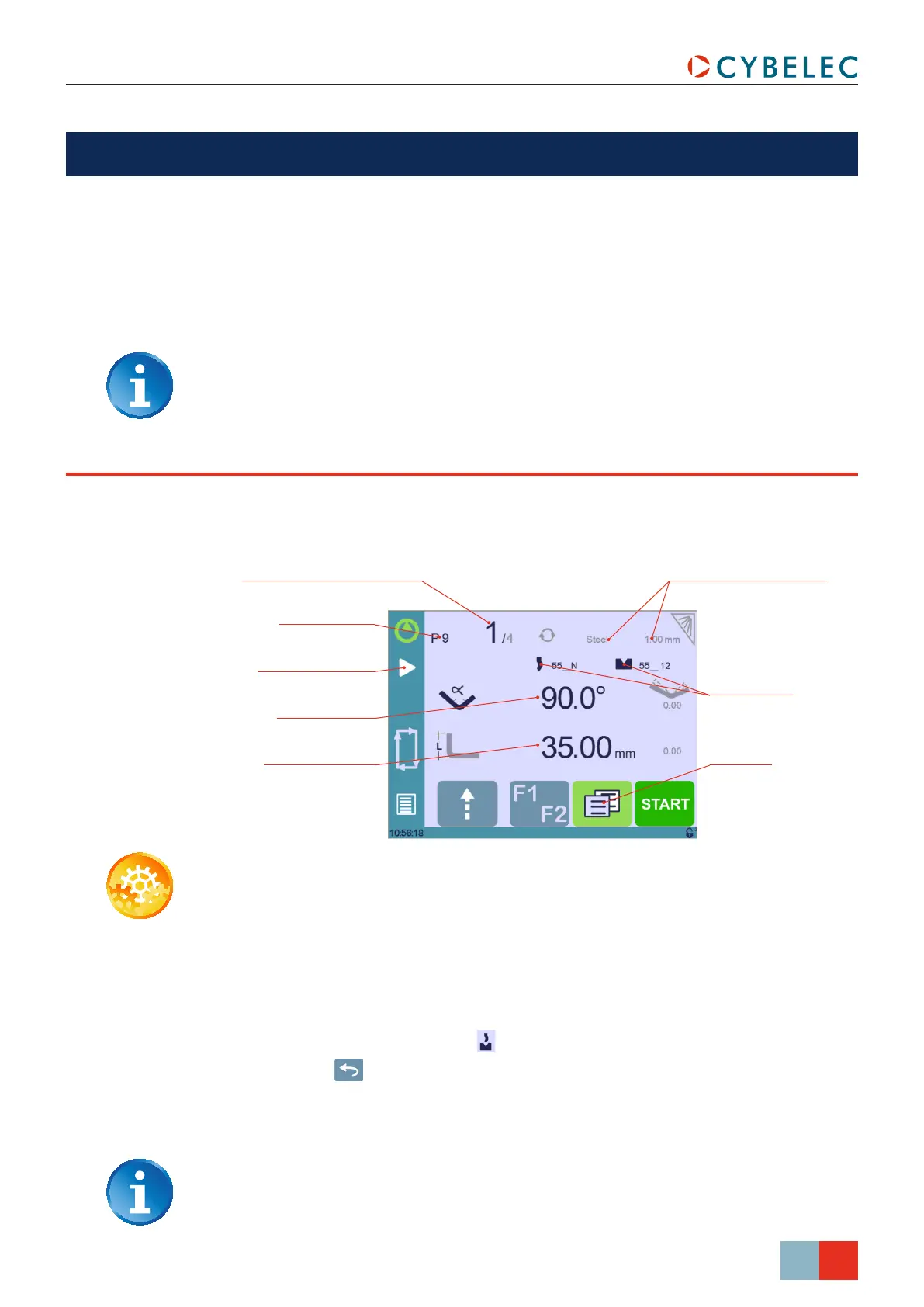

The first page displayed when you switch on the CybTouch is the Bend Numerical Page.
This is where one can create programs containing the bend sequences required to
produce a complete part.
Setting inStructionS:
1. Touch the program number and select New program in the list.
2. Touch the material’s thickness (here 1.00). The More Page (see page 15) is
displayed.
3. In the More Page, enter the Material thickness, the Force, and other sequence
parameters (Opening (TDC), Back gauge retraction, etc.).
4. If necessary, touch this button to activate the Tools Management (see page 19).
5. Touch the button to return to the Bend Numerical Page.
6. Select the tools to be used for the part by touching their respective icons (see Tools
Management, page 19).
To work without tools, see Bending without Tools Management, page 26.
Tools selection
More Page
Angle of the bend
Length of the ange
Add step or next step
Program number
Current step (sequence) number Material used and thickness
