User Manual – CybTouch series
CybTouch series – User Manual
JAN.
2020
V5.0
38/98

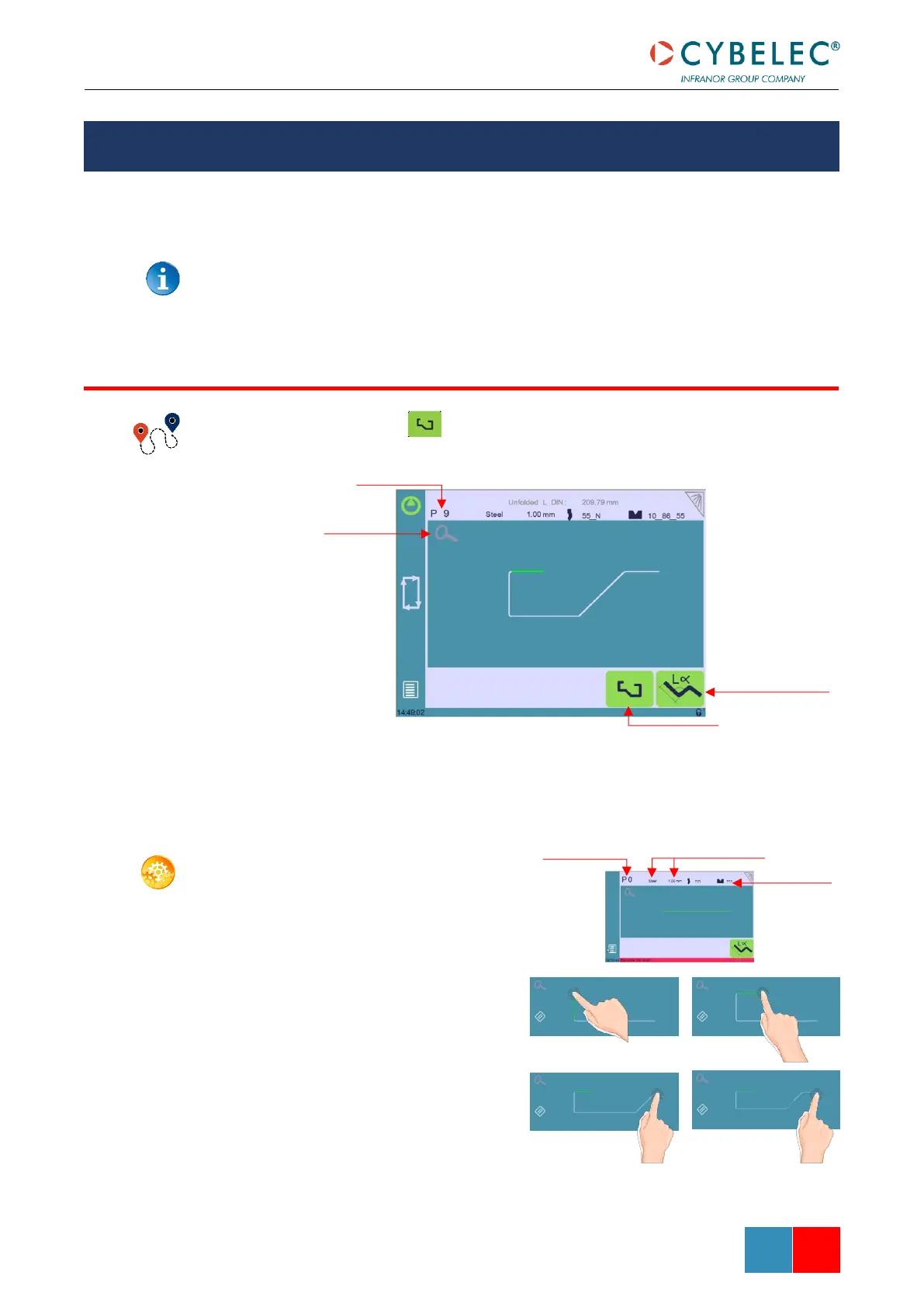

There are three ways to create a program part: with the TouchProfile Mode, with the
Numerical Mode, and with the L-Alpha Mode.
In this chapter the machine is considered operational: machine parameters, tools
(see Tools Management), materials (see Materials), etc. are already configured and
programmed.
Bend Numerical Page →
In this mode, the operator can very intuitively draw a profile directly on the screen.
SETTING INSTRUCTIONS:
1. Touch the program number,
select New program in the list,
and touch Graphical.
2. First select the material, the
Material thickness (see page 22)
and the tools to be used for the
part by touching their respective
icons.
3. Draw the profile by touching the
screen where you want to add a
segment.
CREATING A PART PROGRAM
TOUCHPROFILE MODE
To L-Alpha Mode
To Bend Sequencing
Zoom button
Program number
Material and thickness
Program number
Tools selection
