CYBELEC CybTouch Series User Manual

User Manual – CybTouch series
CybTouch series – User Manual
JAN.
2020
V5.0
42/98

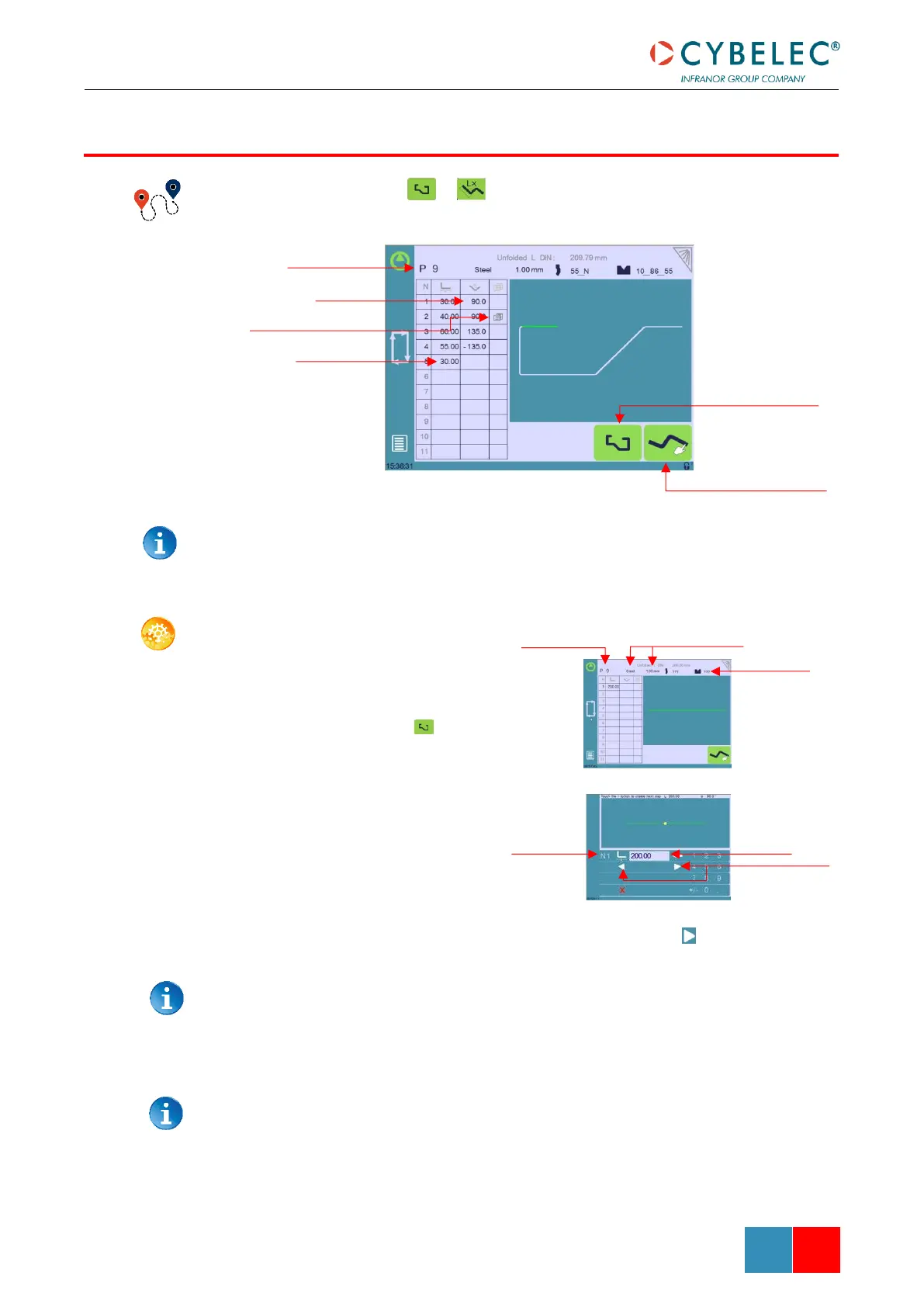

Bend Numerical Page → →
This page is only available if user preference Show page L-alpha is set to yes.
In this mode, the operator can define each step (length or angle) of a profile on a table.
SETTING INSTRUCTIONS:
1. Touch the program number,
select New program in the
list, and touch Graphical.
2. Press this button to
access the L-alpha mode.
3. First select the material, its
thickness and the tools to be
used for the part by
touching their respective
icons.
4. Touch the first value in the
table (here 200.00). The
window to the right is
displayed.
5. Enter the value for the first segment’s length and touch the button to add
another step.
Click on OK when prompted to create new step.
6. Proceed in the same manner for all steps and angles of the profile.
7. If a bend needs special parameters (large radius, special tool), press in the more
field of the corresponding sequence.
A special punch or /and die means there must be an additional working station.
L-ALPHA MODE
Program number
Segment length
Angle value
To Bend Sequencing
To TouchProfile Mode
More parameter for step
Material and thickness
Program number
Tools selection
Step number
Step value
Browsing through
the steps
