p/d
Definition of a tooling pair for a particular
bend (if different from the pair specified in the
p/d field at the top of the page).
Example a
For this example we will use the previously created product.
It was stored under the number 1. (If you cannot find it, create it by
following the instructions of page 43).
Call the product number 1 by entering its number in the P field, and
then pressing the
key.

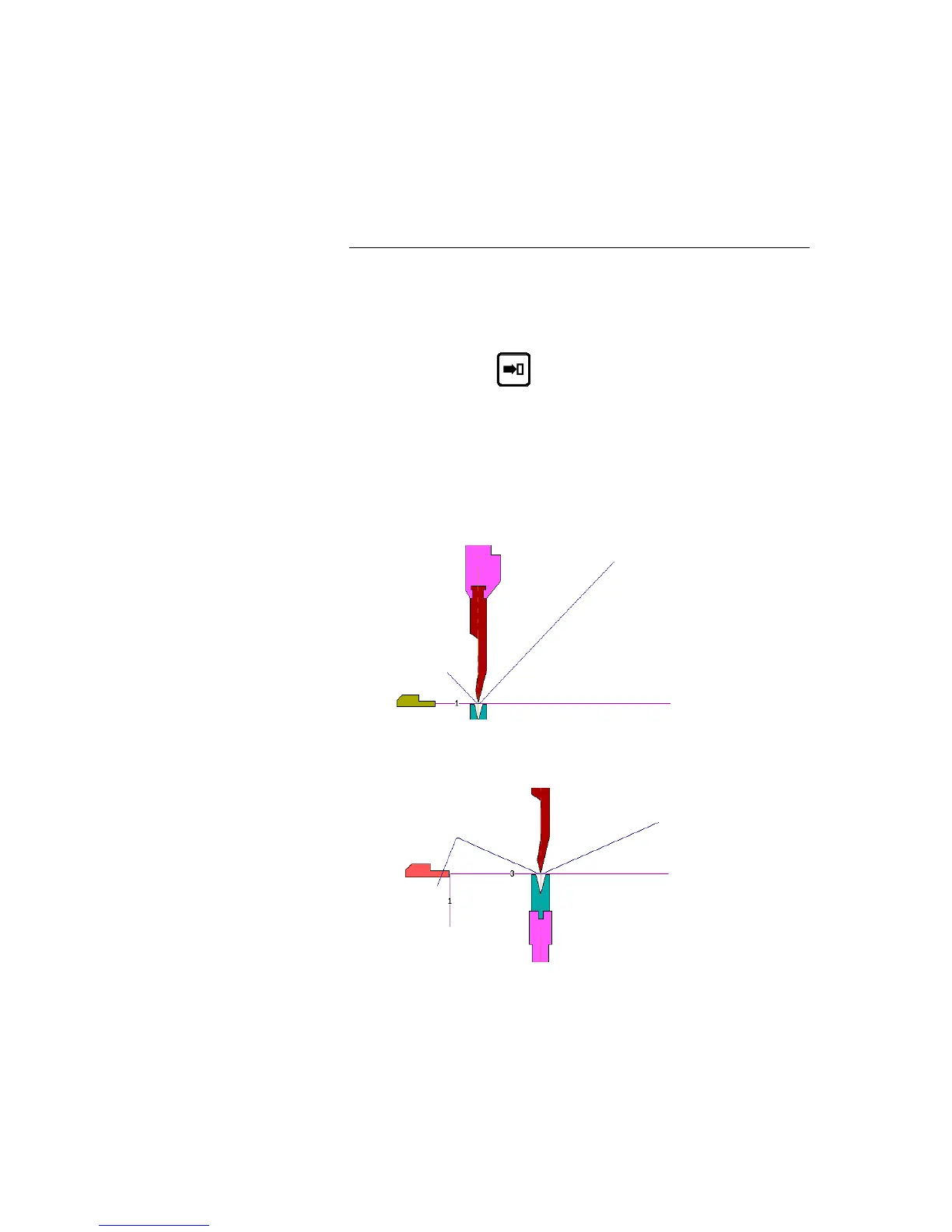

The following illustrations show you the desired bending order.
For each sequence, the illustration shows the sheet metal with its bend before
and after bending.
Sequence N 1: Face 1 and Leg 0
Sequence N 2: Face 3 and Leg 1
APPENDIX F: PROGRAMMING WITH L-ALPHA PAGE 47
