Front routing:
a. Unwind the power cord and route it under the upright.
b. Slide the grommet into the front exit hole with the curved end first. See Figure 10.
Back routing:
a. Using a Phillips head screwdriver, remove the left end cap.
b. Remove the grommet from the back exit hole and slide it into the
front exit hole.
c. Slide the grommet on the power cord into the back exit hole with the curved
end first.
d. Using a Phillips head screwdriver secure the left end cap. See Figure 11.
B. Wind the excess power cord onto the arms. See Figure 11.
C. Place the left side panel into position slightly under the end cap and use your hand to
push all along the bottom edge of the side panel to snap it in place.
Cybex Sport+ Treadmill Owner’s and Service Manual
Grommet
Wire Ties
Arms

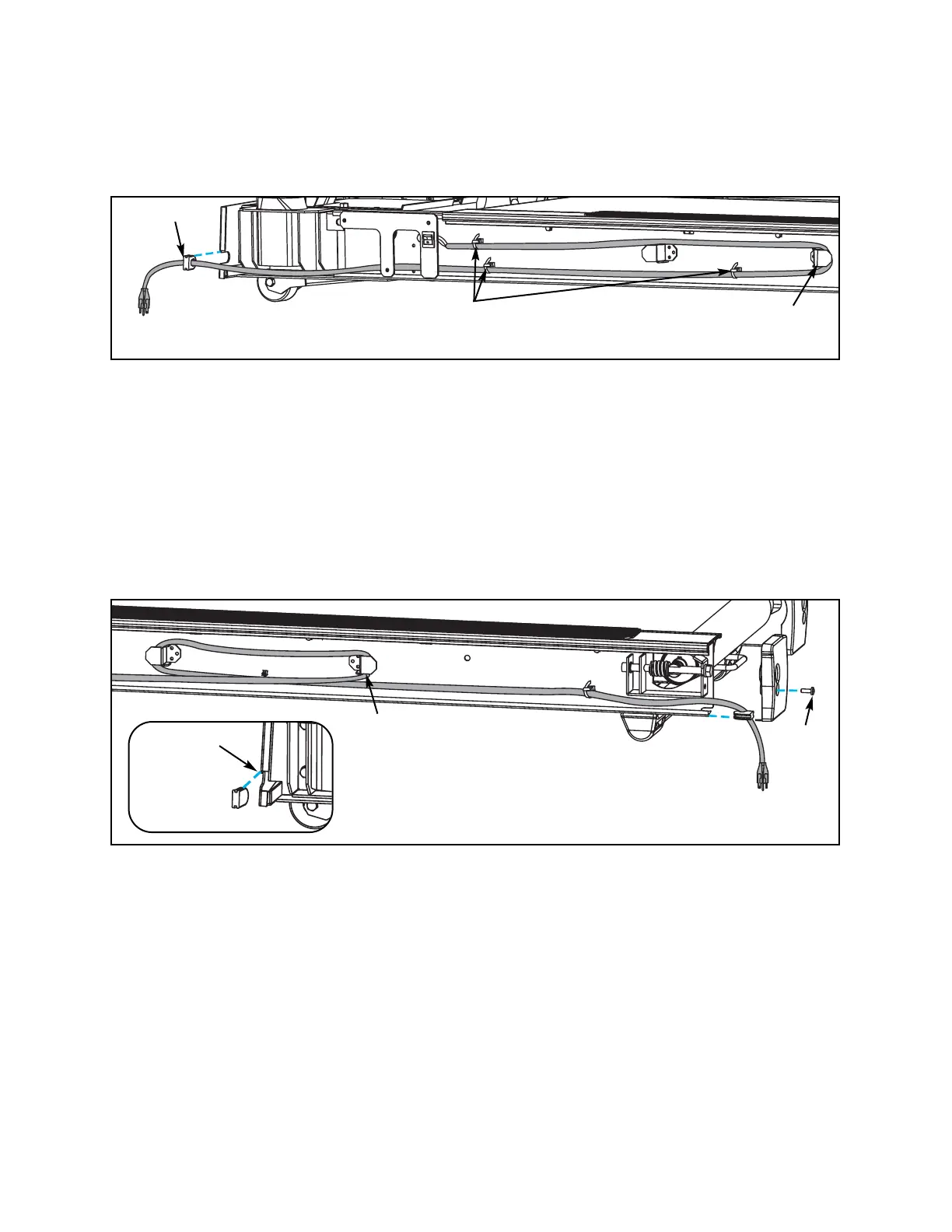

Figure 10
Figure 11
End
Cap
Screw
Arms
Grommet
Slot at
Front of
Treadmill
Setup
and
Assembly
Page 5-8
