Cybex 750T Treadmill Owner’s Manual
Exploded
Views
Page D-3
ITEM QTY. PART NO. DESCRIPTION
42 9 HS-15706 SCREW, 8-16 X .50”, PNHD, STL,
BLK ZN
314 1 EC-19974 SENSOR, IR MOTION
316 2 HS-10716 SCREW, 4-40 X 0.38”, PNHD,
PHIL
319 8 HS-18320 SCREW, 6-19 X 1-2”, PNHD, PHIL
324 15 HS-41187 SCREW, SLFTP, 8-16 X .3125”,
PLASTITE
326 1 PL-20143 HOUSING, E-STOP
345 1 PL-20549-X* BUTTON, STOP, MOLDED
346 1 AX-20513 SWITCH, BUTTON, STOP
347 4 HS-20553 SCREW, 4 X 3/8”, SLFTP, PNHD,
PHIL, ZN, PLASTITE
350 1 DE-20735-X* LABEL, WARNING, CONSOLE
352 1 SW-20813-X* MEMBRANE,AV KEYPAD
353 1 KAD-21926 PCA,PEM JACK BOARD
354 1 AF-21482 BRACKET,AV,LOWER,750T
355 1 KAF-21910 WELDMENT,AV,750T
356 1 AX-21798-X* ASSY,HANDSET,TOP W-TABS
357 6 HN-21072 PEM MOUNTING NUT
ITEM QTY. PART NO. DESCRIPTION
358 2 HS-11347 BOLT,1-4-20X0.75,SCHD BTN,BLK
359 2 HS-12083 BOLT LCK,1-4-20X.625
360 2 HS-13739 BOLT LCK,1-4-20X1.25,G5
362 1 PL-21792 COVER,HANDSET BOTTOM
363 1 PL-21793 COVER,HANDSET AV MODULE
400 1 AD-21736 PCA, HANDSET, UNIVERSAL
403 1 AW-21489 CABLE,CAT5E 24” PATCH,BLUE
404 1 AW-20241 POWER CORD, IEC NEMA 5-15,
SHORT FOR A/V
406 1 AW-21499 CABLE,LOCKING RF and DC
POWER CABLE,2795MM
408 1 CP-21072 MONITOR,13.3”, ATSC, NTSC, PEM
422 1 CP-21073 MONITOR,13.3”, DVB-T, SECAM,
PAL, PEM
423 1 PL-21178 CONSOLE, TOP, A/V, 751T
434 1 AW-20892 CABLE, COMP AV JACK BOARD,
GREEN
435 1 AW-20841 CABLE,IPOD
436 1 DE-22190 LABEL,NIKE+ IPOD

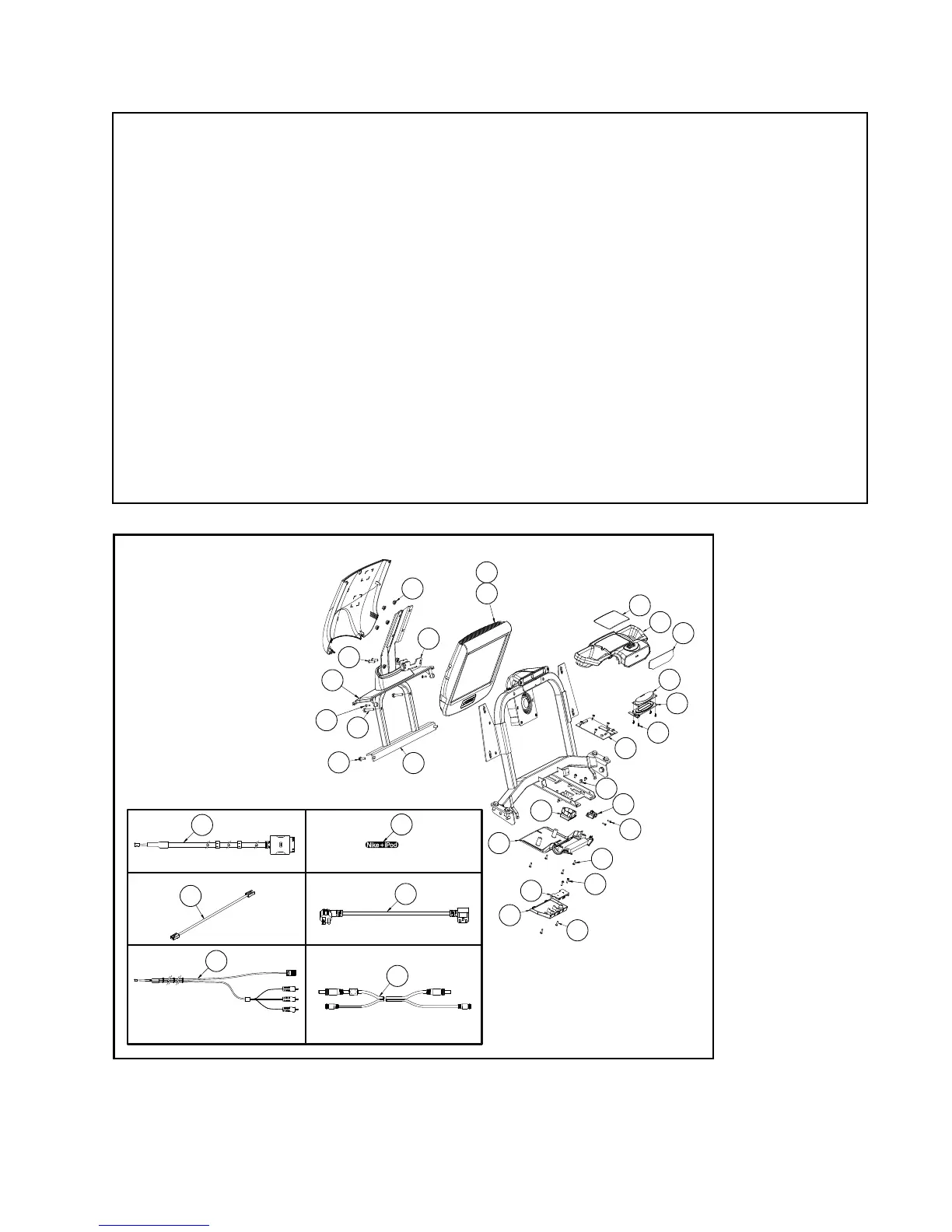

751T Console with
A/V Option
345
346
347
408
422
42
423
404
403
406
319
314
324
319
Console with
A/V Option
ATSC
DVB-T
AW-21489
RJ45 Cable
AW-20241 Power Cord, Short
AW-21499 A/V Cable
352
356
350
363
353
358
362
360
359
355
357
354
326
319
316
400
434
435
436
AW-20892 CABLE, COMP AV
JACK BOARD,GREEN
AW-20841 A/V Cable
DE-22190 Decal, Nike+ iPod
* Language Key
1-German 2-French 3-Spanish 4-English 6-Japanese 7-Swedish 8-Russian A-Danish

CYBEX 750T Specifications

General

Motor	3.0 HP
Incline Range	0% - 15%
Max User Weight	400 lbs
Heart Rate Monitoring	Wireless Receiver
Weight	350 lbs
