Cybex 750T Treadmill Owner’s Manual
Exploded
Views
Page D-4
ITEM QTY. PART NO. DESCRIPTION
23 4 EH-10291 TY WRAP BASE
39 17 HS-11977 SCREW SEMS, 8-32 X .38, PNHD
PHIL
76 2 EH-20244 CLIP, WIRE RETAINER,
.24-.47”DIA
102 1 AX-20235 SUB ASSY, 110 VAC
CONTROLLER
102 1 AX-20236 SUB ASSY, 220 VAC
CONTROLLER
102 1 AX-20237 SUB ASSY, 230 VAC, 50HZ
CONTROLLER
111 1 KAD-22221 PCA, CONTROLLER, 115 VAC
111 1 KAD-22431 PCA, CONTROLLER, 230 VAC
111 1 KAD-22223 PCA, CONTROLLER, 230 VAC,
50Hz
112 1 AD-21879 PCA, HUB BOARD
113 1 AF-20123 PLATE, SWITCHES
114 1 AF-20234 BRACKET,CONTROLLER, PCB
115 1 AW-19404 CABLE, CAT5, RJ45 FLAT PATCH
12”
116 1 AW-20289 WIRE, INLET TO SWITCH FILTER
JUMPER
117 1 AW-20290 WIRE, SWITCH TO FILTER
JUMPER
118 1 AW-20291 WIRE, INLET TO GROUND
JUMPER, GREEN
119 1 AW-22177 CABLE, MOTOR CONTROLLER
120 1 AW-20442 WIRE, FILTER TO OUTLET
JUMPER, BLACK
121 1 AW-20443 WIRE, FILTER TO OUTLET
JUMPER, WHITE
ITEM QTY. PART NO. DESCRIPTION
122 1 AW-20444 WIRE, OUTLET, GROUND JUMPER,
GREEN
123 1 AW-20446 WIRE, INLET TO SWITCH JUMPER,
BLACK
124 1 AW-20447 WIRE, INLET TO SWITCH JUMPER,
WHITE
125 1 CN-20252 PLUG, NEMA 5-15R
126 1 DE-20558 LABEL, HUB BOARD
127 1 EC-18896 FILTER, 16A
128 1 EH-12208 INLET, IEC, 320 16-20 AMP
130 1 FS-20232 BRACKET, POWER CORD
RETAINER
131 2 HN-11925 KEPS, 10-32, HEX, STL, ZN
132 2 HS-10405 SCREW, 4-40 X .25”,PNHD PHIL
134 4 HS-15732 SCREW, SEMS, 8-32 UNC X .62”,
PNHD, PHIL
135 1 HW-10856 WASHER, LOCK, EXTERNAL, NO. 10
136 1 RE-20242 RESISTOR, TM5, DYNAMIC BRAKE
137 1 SW-19666 SWITCH, CIRCUIT BREAKER, 15
AMP, 240 VAC
137 1 SW-19667 SWITCH, CIRCUIT BREAKER, 20
AMP, 240 VAC
401 1 AF-20137 BRACKET, A/V POWER SUPPLY
409 1 FS-20300 STRAP, A/V POWER SUPPLY
418 1 TR-21881 POWER SUPPLY,12V FAN LOCKING
DC
419 1 FS-20233 BRACKET, FAN POWER SUPPLY
RETAINER
424 1 HS-11894 SCREW SEMS, 6/32 X .25”, PNHD
PHIL
NS 1 KMR-20818 KIT,FAN REPLACEMENT,PCB
MOTOR CONTROLLER
7.5" REF
INLET TO SWITCH JUMPER - BLACK
AW-20446
123
MOTOR CONTROLLER CABLE
BLACKWHITE
1
2
3
GREEN OR GREEN/YELLOW
AW-22177
119
6.75" REF
FILTER TO OUTLET JUMPER - WHITE
AW-20443
121
6.75" REF
FILTER TO OUTLET JUMPER - BLACK
AW-20442
120
11.25" REF
OUTLET GROUND JUMPER - GRN/YEL
AW-20444
122
11.25" REF
AW-20289
116
SWITCH TO FILTER JUMPER - BLACK
11.25" REF
AW-20290
117
SWITCH TO FILTER JUMPER - WHITE
15.0" REF
INLET TO GRND JUMPER - GREEN/ YELLOW
AW-20291
118
7.5" REF
INLET TO SWITCH JUMPER - WHITE
AW-20447
124
CAT5 RJ45 CABLE
AW-19404
115
12" REF
401
424
409
AV OPTION

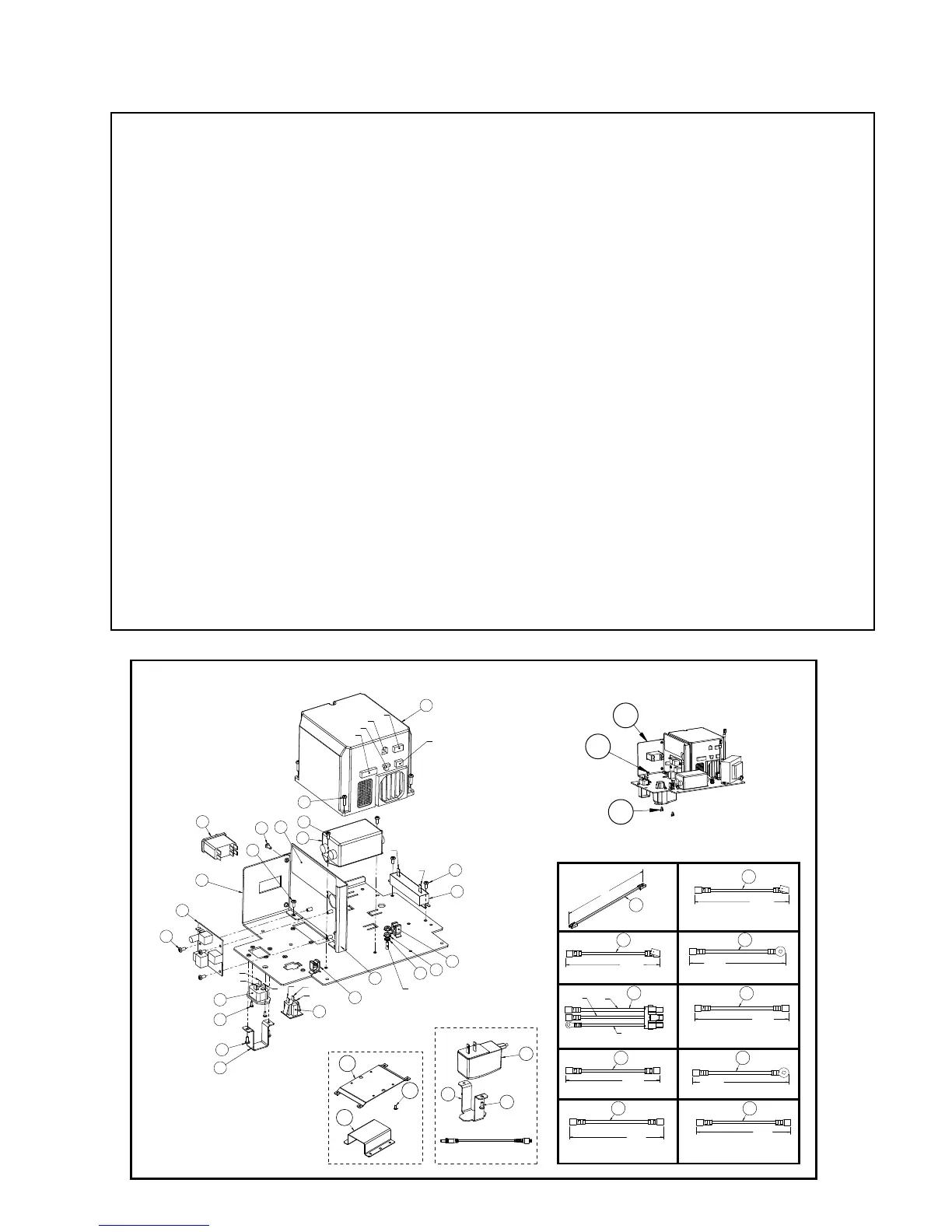

751T Controller Assembly
23
39
102
1
CHASSIS GND
INPUT
DB
OUTPUT
INCLINE
COMM.
111
134
136
135
76
131
76
114
N
127
137
112
130
128
125
113
126
SW-19667
(20AMP 240 VAC)
132
39
39
39
39
39
39
SW-19666
(15AMP 240 VAC)
L
GND
2
L
GND
N
AW-21882
NON AV OPTION
419
418
39
Cable, Adapter, Locking DC 2.1MM
