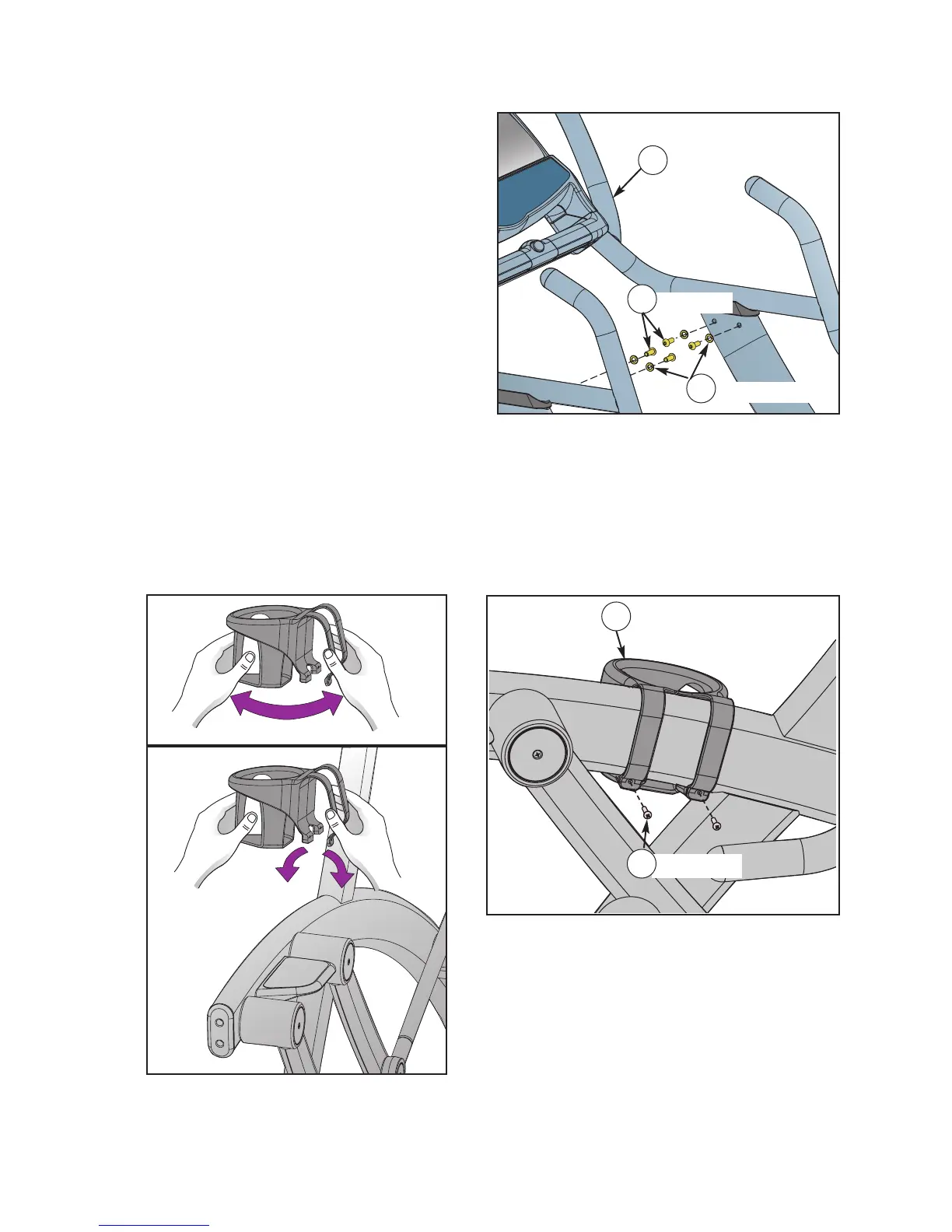

C. Using a 3/16” hex key, loosely attach the
console with the four 5-16-18 x 1.00
screws and four starwashers. NOTE: Do
not securely tighten the screws until step
6D. See Figure 5.
D. Confirm that the handrail, gaskets and
screws are aligned and then tighten the
four screws.
7. Attach the water bottle holder.
A. Hold the water bottle holder with two
hands and gently pull outward and
continue to pull (hold open) during step
7B. See Figure 6.
B. Place the water bottle holder over the
frame with the larger side outside of the frame as shown in Figures 6 and 7.
NOTE: Water bottle holder may be placed on either side.
C. Using a Phillips head screwdriver, attach the water bottle holder to the frame with the
two 5-16-18 x 0.75 screws. See Figure 7. NOTE: Do not overtighten.
Cybex Arc Trainer Owner’s & Service Manual
Page 5-6
Figure 6
Figure 5
Figure 7
Water Bottle Holder
6
Screw (2)
7
Screw (4)
4
Console
2
Starwasher (4)
5
