Cybex Arc Trainer Owner’s & Service Manual
Page 7-20
Power Switch
Tools Required
• Phillips head screwdriver
! WARNING: Disconnect the power cord before beginning this procedure. Keep wet
items away from inside parts of the unit. Electrical shock could occur even
if the unit is unplugged.
1. Disconnect the external power source.
A. Turn the main power switch above the power
inlet to the off (O) position.
B. Unplug the power cord from the power outlet
and from the power inlet.
2. Remove the access cover.
A. Using a Phillips head screwdriver, remove the
four screws securing the access cover. See
Figure 2.
B. Remove the access cover.
3. Remove the power switch assembly.
A. Using a Phillips head screwdriver, remove the
two screws on each side of the power switch.
See Figure 18.
B. Reach inside the unit and pull the power switch assembly up and out.
C. Make note of which fast-ons are connected to the connectors.
D. Disconnect the ten fast-ons from the power switch assembly.
4. Connect the cables.
A. Connect the ten fast-ons to the new power switch assembly as shown in Figure 19.
NOTE: Refer to the schematic at the back of this manual if necessary.
5. Attach the power switch assembly.
A. Slide the power switch assembly into its slots. See Figure 19.
B. Using a Phillips head screwdriver, attach the two screws removed during step 3A into
the power switch. See Figure 18.

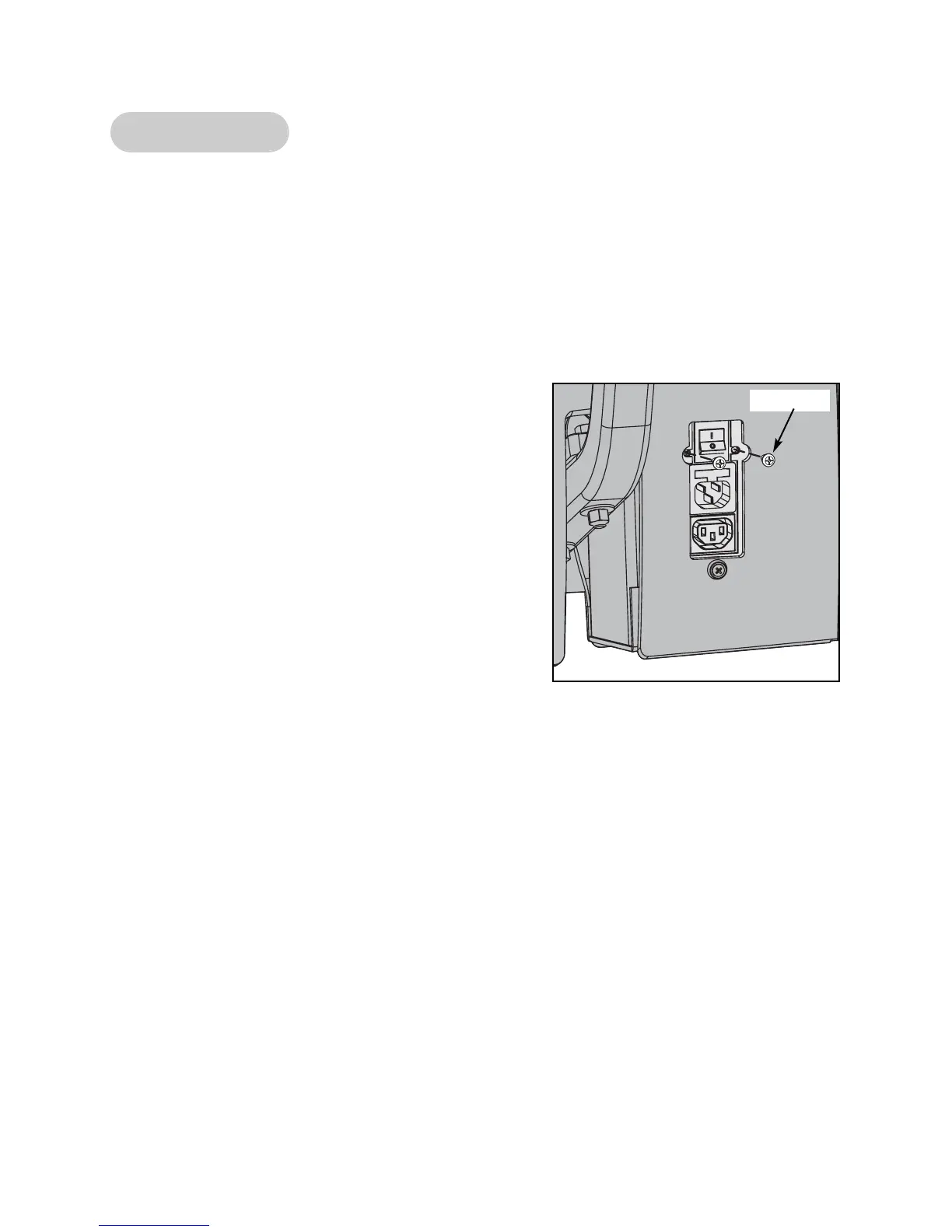

Figure 18
Screw (2)
To Next Page
