6. Attach the access cover.
A. While being sure not to pinch any cables, place the access cover in
position.
B. Using a Phillips head screwdriver, attach the four screws removed in
step 2A. See Figure 2.
7. Test the unit for proper operation.
A. Connect the power cord into the power inlet and the power outlet.
B. Turn the main power switch to the on (I) position.
C. Operate the unit at all levels to verify proper operation.

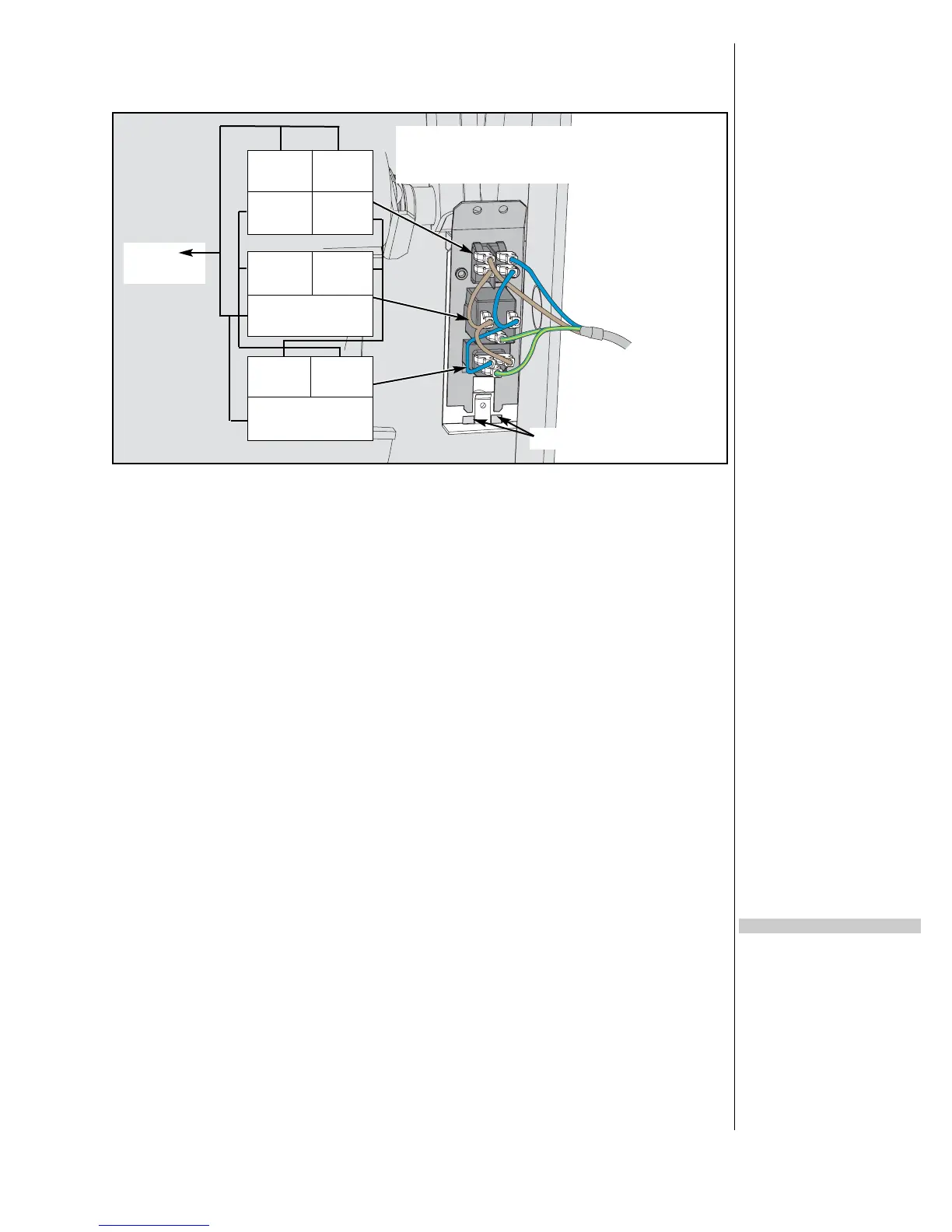

Figure 19
NOTE: Shown from inside the unit.
See the schematic at the end of
this chapter for more detail.
Slots
Brown
Blue
Brown
Blue
Brown
Blue
Brown
Blue
Green & Yellow
Green & Yellow
To the
Controller
