B. Lift the console front off the unit and place
it on a clean, flat surface.
5. Remove the heart rate board and bracket.
A. Using a Phillips head screwdriver, remove
the two screws securing the heart rate
board in place.
B. Disconnect the three cables from the
contact heart rate board.
C. Turn the heart rate board over and use a
Phillips head screwdriver to remove the
screw from the old heart rate bracket.
NOTE: Keep all parts except the heart rate
board (if applicable).
6. Attach the contact heart rate board and
bracket.
A. Place the screw removed during step 5C
into the heart rate board from the bottom.
See Figure 29.
B. Place the short end of the new heart rate
bracket over the screw on the heart rate
board with the standoff touching the board. See Figure 29.
C. Using a Phillips head screwdriver, attach the heart rate board to the console with the
two screws removed in step 5A.
D. Be sure the cable is still firmly connected in the right side of the heart rate board.
7. Attach the jumper and console front.
A. Place the starwasher next to the handrail bracket metal and hold the jumper terminal
on top. See Figure 28.
B. Place the Phillips head screw removed in step 4A through the terminal, starwasher,
handrail bracket and heart rate bracket and secure it tightly using a screwdriver. See
Figure 28.
C. Using a Phillips head screwdriver, secure the console front to the handrail with the
other eight black screws removed during step 4A.
8. Connect the display cable.
A. Connect the display cable into the display board (2 connectors).
B. Using a Phillips head screwdriver, place the display cable in the wire clip and tighten
the screw. See Figure 27.
Cybex Arc Trainer Owner’s & Service Manual
Page 7-34

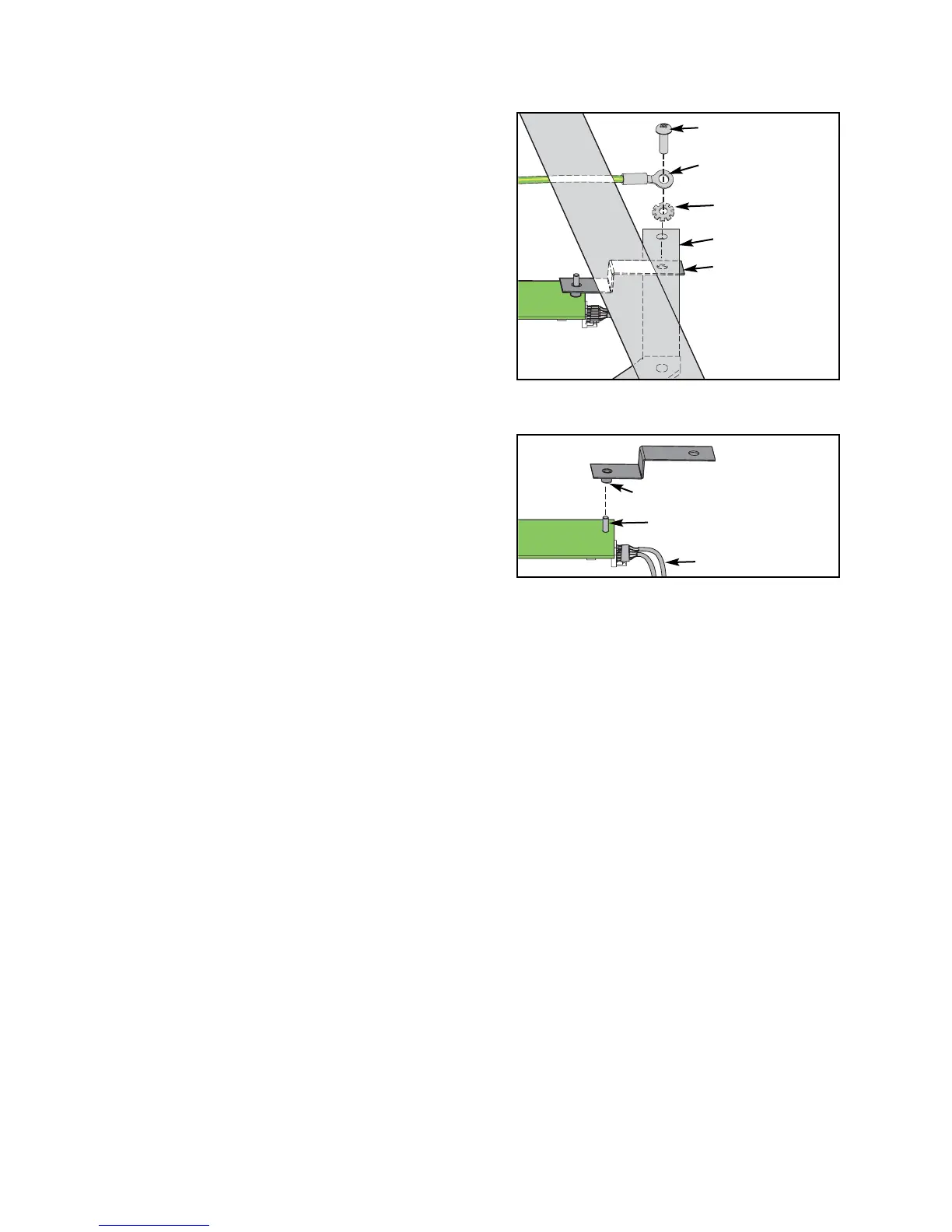

Figure 28
Starwasher
Jumper Terminal
Screw
Handrail Bracket
Heart Rate
Board Bracket
Figure 29
Standoff Must Touch Board
Screw on Heart
Rate Board
Cable
To Next Page
