CYBEX FT 360 - Page 55

Cybex FT 360 Functional Trainer Owner’s Manual
Assembly
Page 6-3

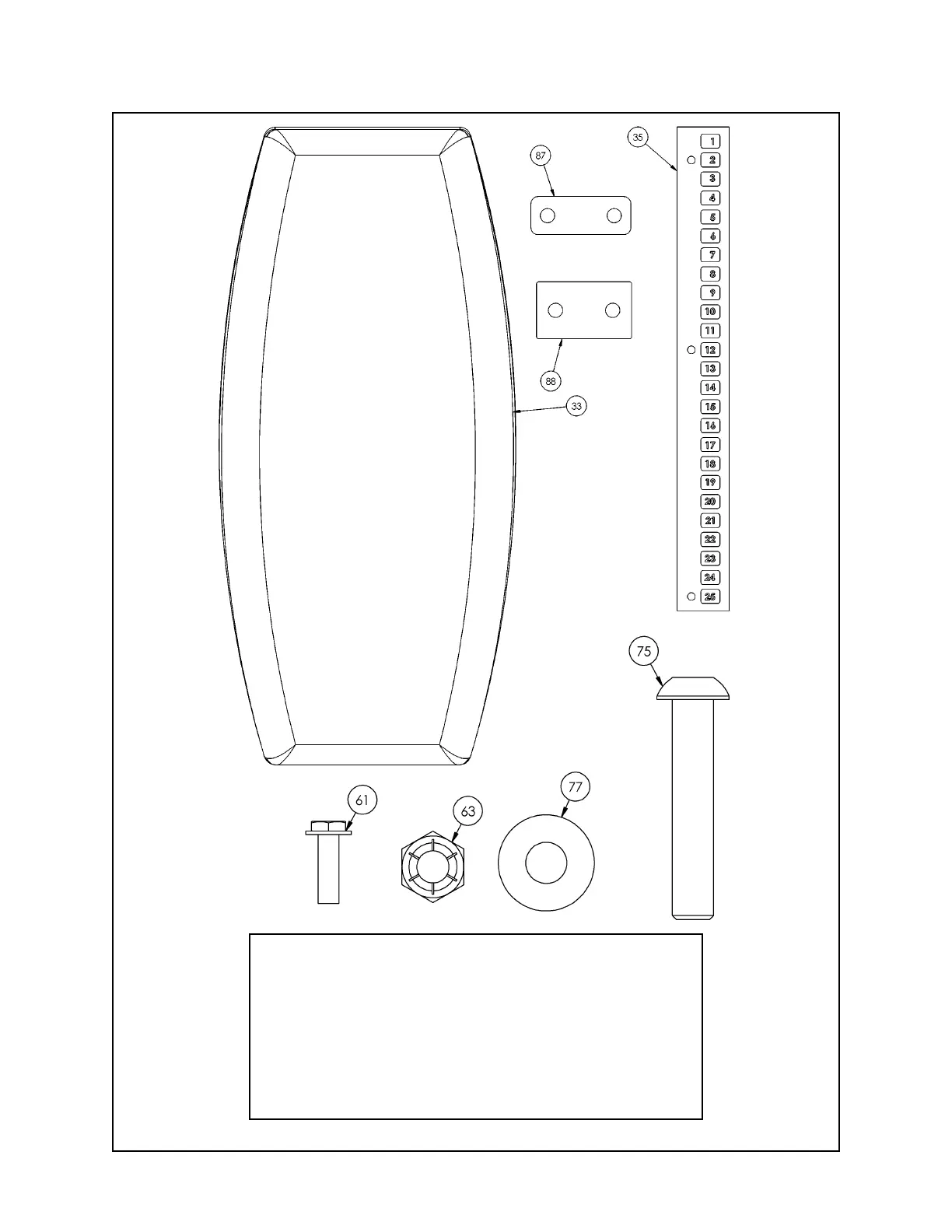

Figure 2
33 1 9100-311 Shroud (Top) Cover
35 1 9100-313 Weight Plate Decal 1-25
61 4 HM581714 HHCS 10-32 x .625 Blk Zinc
63 4 HN-60560 Nylock Nut .375-16 Black
75 4 HS-60536 BHSC .375-16 x 2.00 Black
77 4 HW-60085 Washer .3125 Black
87 4 PR070003 Foot Pad 2.00 x 5.25
88 4 PR070004 Foot Pad 3.00 x 5.00
ITEM QTY PART NO. DESCRIPTION
