Cybex FT 360 Functional Trainer Owner’s Manual
Assembly
Page 6-5
1. Installing snap links (refer to step 1A, 1B and Figure 1).
A. Rotate arms to #4 position.
B. Locate the two snap links (#56).
C. Attach each snap link (#56) to cable on each cable arm. See Figure
1.
Installing Snap Links
56
Figure 1
Figure 3
88
88
Tip machine
forward and
install foot pad
for each side.
Tip machine
backwards
and install
foot pad for
each side.

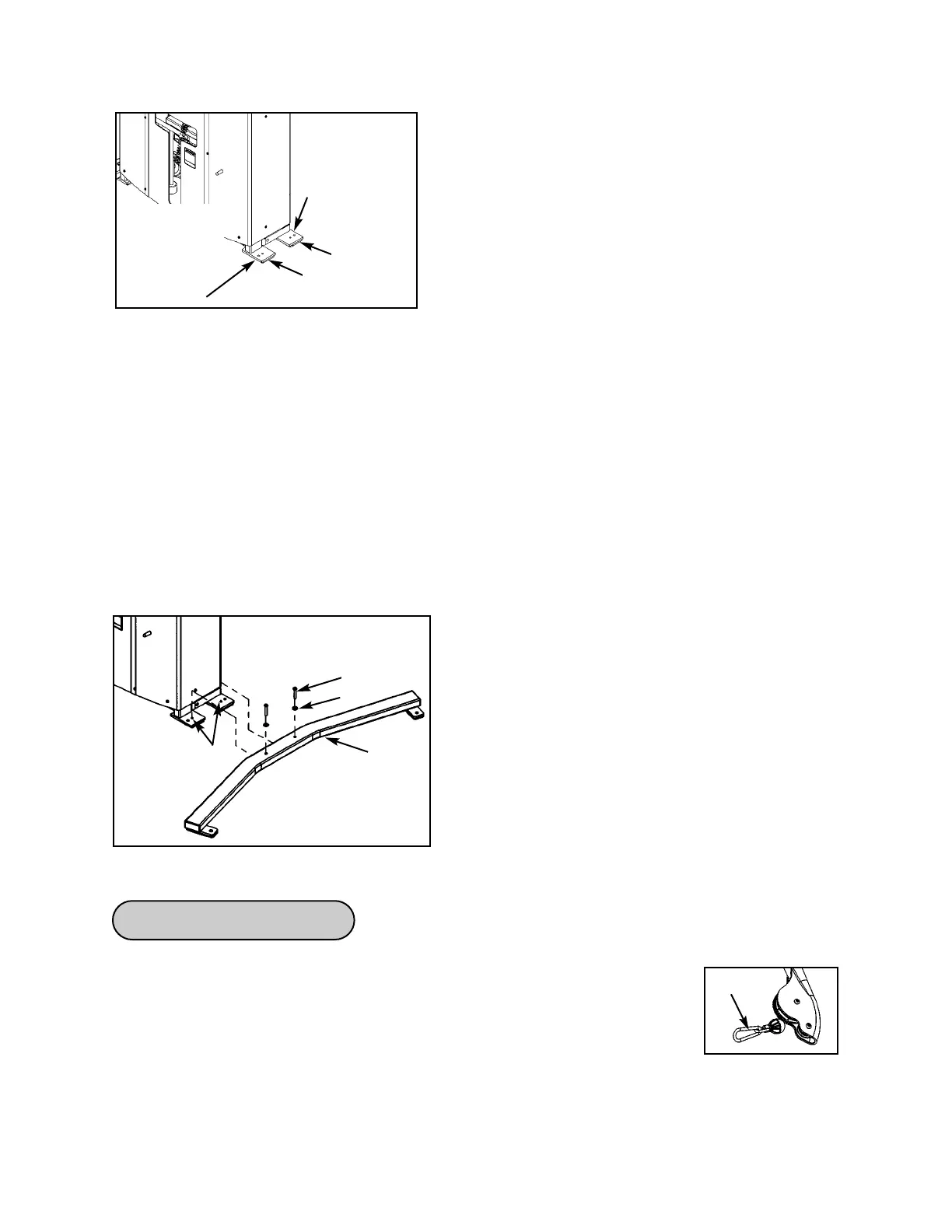

4. Installing stabilizers (see steps 4A - 4D and Figure 4).
A. Locate four BHSCS .375-16 x 2.00 (black, #75), four black washers .3125 (#77), and
two stabilizers (#89D).
B. Align one of the stabilizers with the holes in the frame. See Figure 4.
C. Secure the stabilizer using two BHSCS .375-16 x 2.00 (black, #75) and two black
washers .3125 (#77) as shown in Figure 4.
D. Repeat steps 4B - 4C for installing the other stabilizer.
Figure 4
75
77
89D
NOTE: Use
inside holes
