Cybex FT 360 Functional Trainer Owner’s Manual
Maintenance
Page 7-6

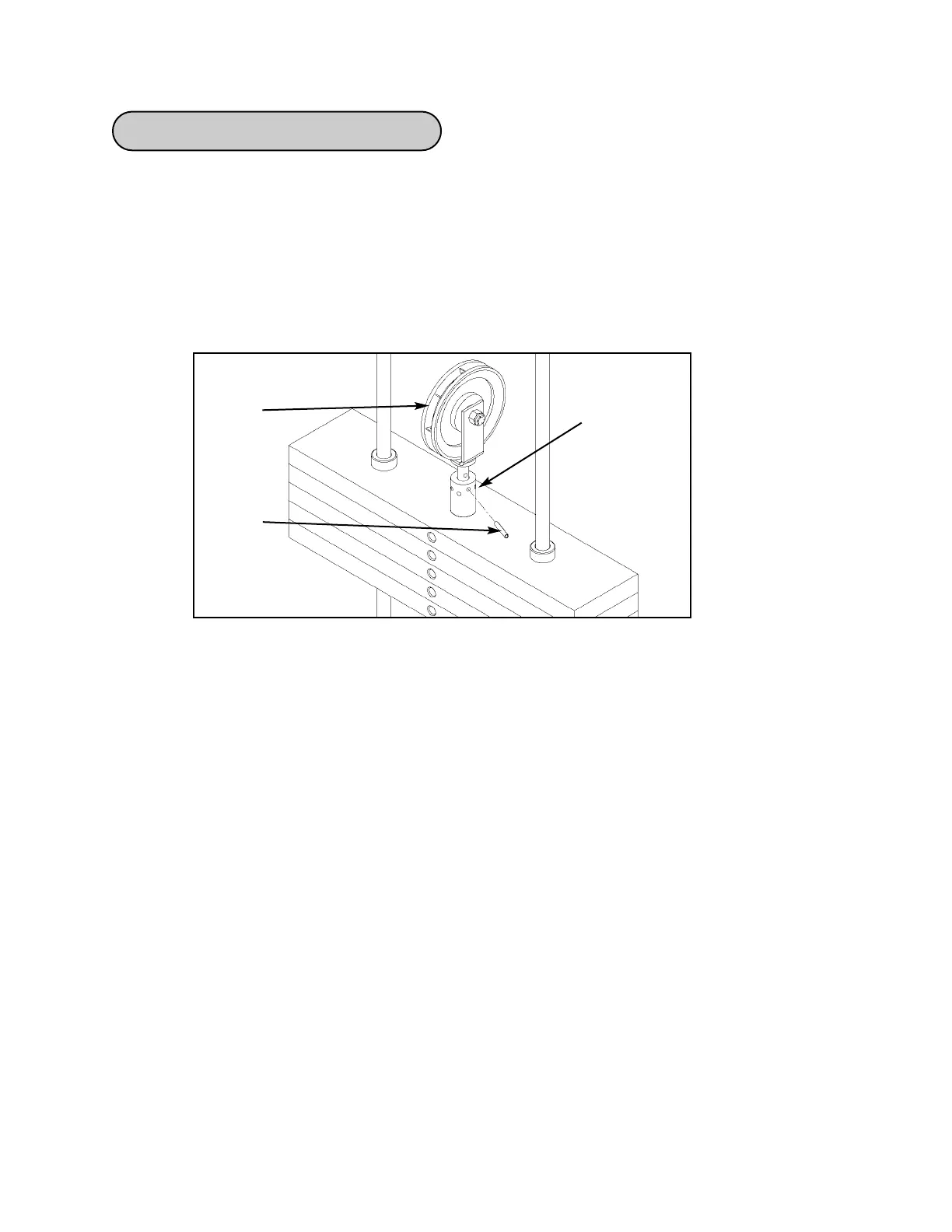

Figure 8
Weight Stack Cable Adjustment
Spiral
Pin
Pulley
Stem
Tools Required:
• 3/16” Punch
• Hammer
1. Note roll pin location in cable fitting. See Figure 8.
2. Using a 3/16” pin punch and hammer, drive spiral pin out of top plate
connector and cable fitting.
3. Grip cable fitting firmly, pull down to tighten cable. Rotate fitting to align
spiral pin hole with an openeing in top plate connector.
4. Insert pin punch through top plate connector and spiral pin hole to hold
cable in place.
5. Drive spiral pin through top plate connector and fitting from opposite side,
pushing out pin punch. Assure spiral pin ends are flush.
