Cybex FT 360 Functional Trainer Owner’s Manual
Assembly
Page 6-2
• 7/32” Allen wrench
• 5/16” Socket/wrench
• 9/16” Socket/wrench
• External snap ring pliers
Tools Required
Unpacking
! WARNING: Use extreme caution when assembling the FT 360, especially when
working on the inside of the assembly. Failure to do so could result in
injury.
• Rubber mallet
• Step ladder
• Automotive engine oil
• Utility knife
NOTE: Two people are required to assemble the FT 360.
1. Read and understand all instructions thoroughly before assembling the FT 360.
NOTE: Each step number in the assembly instructions tells you what you will be
doing. The lettered steps following each step number describes the procedure
required. Do not continue with step 2 until you have carefully read all of the
assembly instructions.
2. Unpacking (see steps 2A - 2D), Figures 1 and 2. NOTE: Steps 2B and 2C have already
been completed.
A. Carefully place FT 360 near area of installation. You will need a minimum amount of
three feet around the FT 360 (when in use).
B. Remove screws securing back door. Swing door open.
C. Remove carton and stabilizers from inside of FT 360.
D. Verify contents of the carton. See Figures 1 and 2.
13 1 51073 Hip Harness
15 1 51122 Ankle Strap
38 2 9100-316 Handle Assembly
56 2 GQ000206 Snap Link
1 54001 Facility Safety Sign (not shown)
1 59100 Owner’s Manual (not shown)
ITEM QTY PART NO. DESCRIPTION

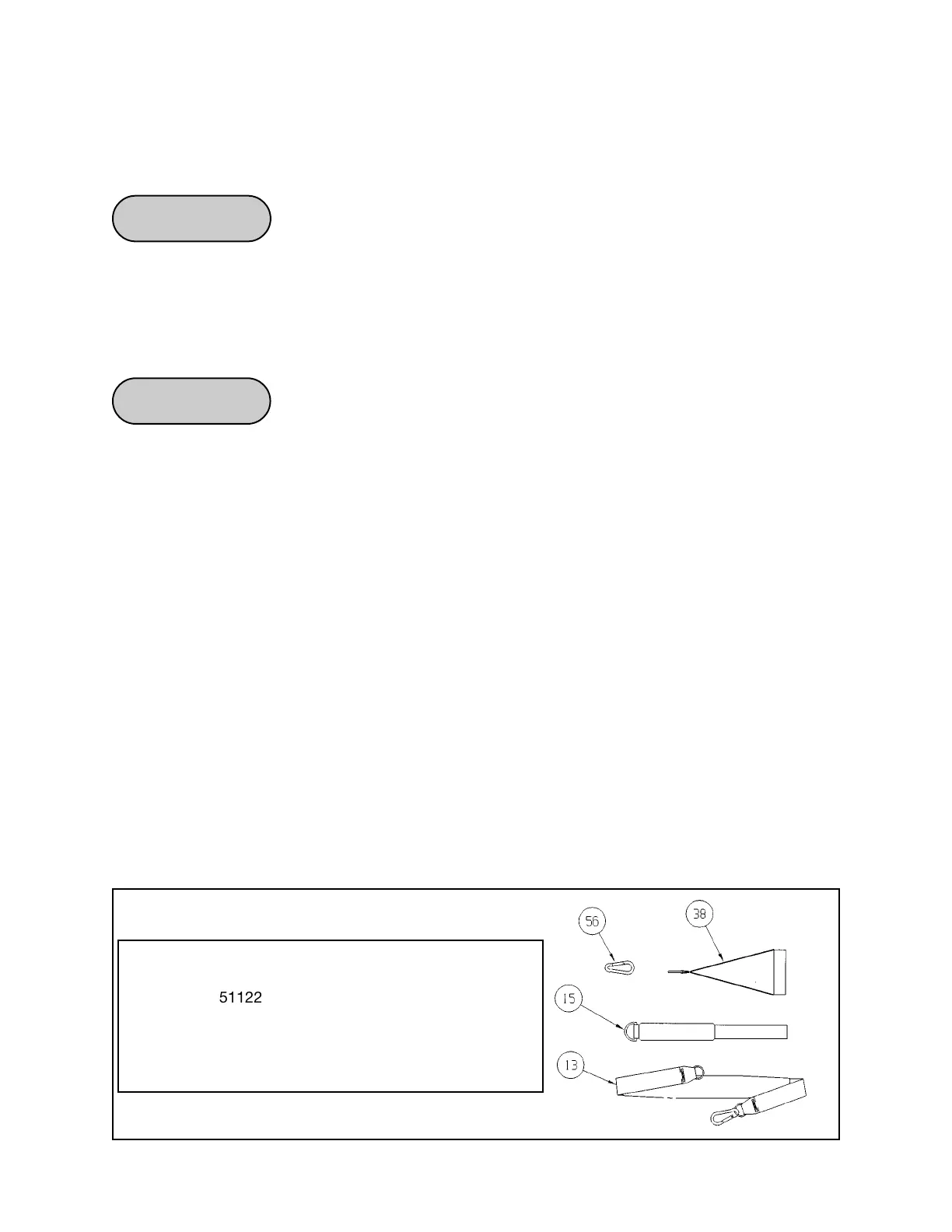

Figure 1
To Next Page
