CYBEX FT 360 User Manual

Cybex FT 360 Functional Trainer Owner’s Manual
Service

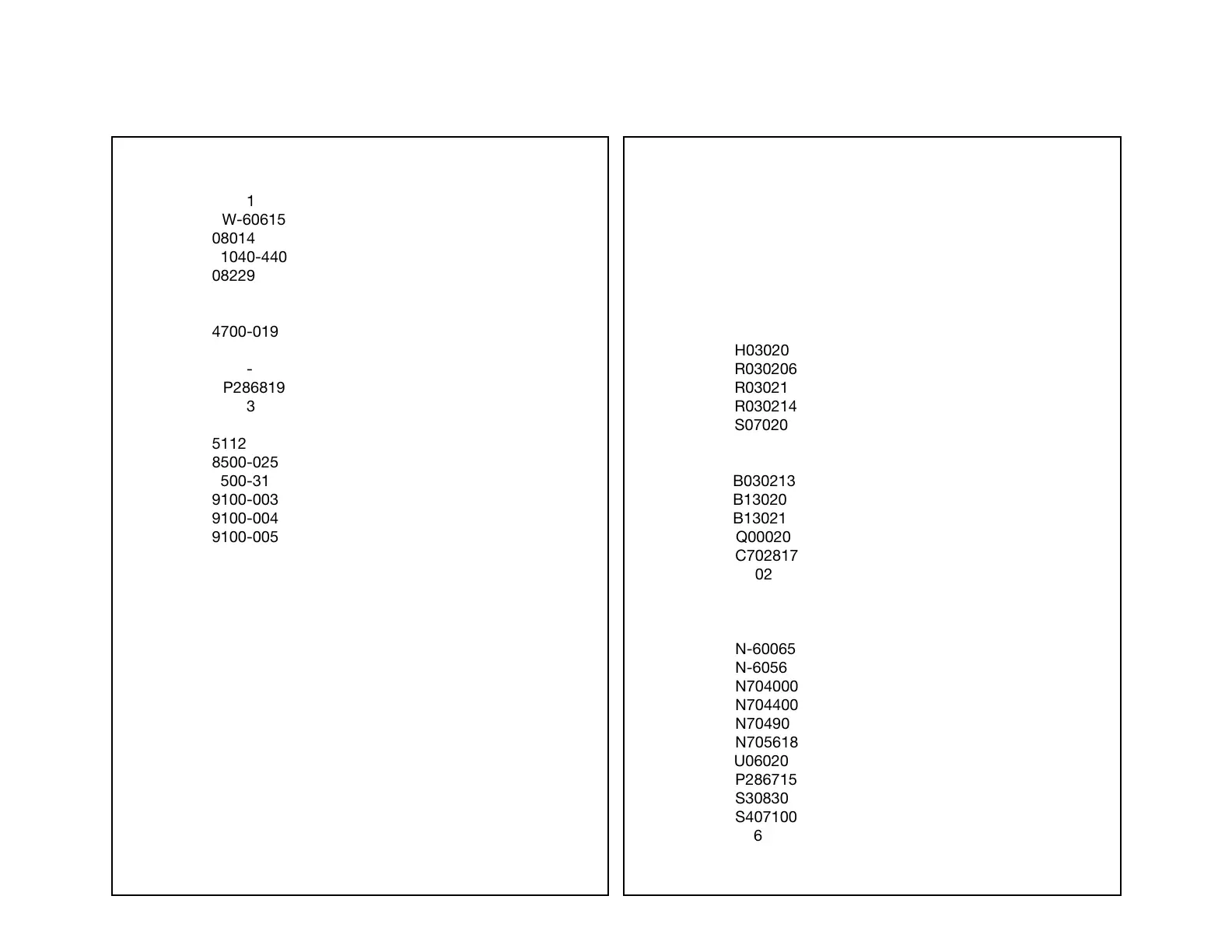

Page 8-5
1 1 02106 Half Weight Peg
2 1 02521 Warning Decal
3 2 PW-60615 Pulley Cable 2.00 OD x 1.00 Hub
4 15 08014 Pulley Assembly 4.50 inch
5 4 11040-440 Cybex Knob
6 4 08229 Detent Pin
7 2 3900-438 Cybex Decal 8.75 x 13.00
8 Removed
9 2 4700-019 Flange Bearing .62 ID x .95 OD x 1.50 L
10 1 4800-255 Top Weight 4 x 18
11 1 4800-381 Warning Decal
12 2 HP286819 Spiral Pin .188 x 1.12
13 1 51073 Hip Harness
14 1 51119 Selector Pin Retainer
15 1 51122 Ankle Strap
16 2 8500-025 Caution Decal
17 4 8500-311 Max Weight Decal
18 1 9100-003 Cable Sub Assembly
19 2 9100-004 Cable Sub Assembly
20 1 9100-005 Cable Sub Assembly
21 1 9100-200 Main Frame
22 2 9100-204 Arm Adjustment
23 1 9100-205 Pulley Plate
24 1 9100-206 Pulley Traveler
25 2 9100-303 Molded Pulley Swivel
26 1 9100-304 Rotational Position Decal 1-10
(part number includes quantity of 2)
27 2 9100-305 Position ABC Decal
(part number includes quantity of 2)
28 1 9100-306 Shroud Front Panel
29 1 9100-307 Shroud End Right Side Panel
30 1 9100-308 Shroud End Left Side Panel
31 1 9100-309 Shroud Back Panel
32 2 9100-310 Guide Rod
33 1 9100-311 Shroud Top Cover
34 2 9100-312 Extension Spring 1.375 x 1.75 x 28.28 L
35 1 9100-313 Weight Plate Decal 1-25
36 2 9100-314 Dampner Cylinder
ITEM QTY PART NO. DESCRIPTION
9100 - FT 360 Station
37 4 9100-315 Dampner Safety Clip
38 2 9100-316 Handle Strap Grip Assembly
39 1 9100-317 Hinge .06 x 2.00 x 72.00 L
40 2 9100-318 Grip 5.88 L x 2.00 OD x 11 G
41 2 9100-343 Spring Cable Retainer Plate
42 2 9100-345 Pivot Shaft
43 1 9100-348 Spring Caution Decal
44 1 9100-598-1 Placard Decal
45 1 9100-598-2 Placard Decal
46 1 BH030201 Quick Release Pin .375 Dia. x 4.00 L
47 2 BR030206 Retaining Ring
48 4 BR030213 External Retaining Ring 2.00
49 4 BR030214 Retaining Ring .625 Dia.
50 4 BS070201 Spring .56 x .66 1.50 L
51 Removed
52 1 C-ZA000201 Half Weight
53 2 FB030213 Rod End Bearing .375-24
54 4 FB130206 Flange Bearing 2.00 ID x 2.25 OD x 1.00 L
55 4 FB130212 Flange Bushing Footplate .75 ID
56 2 GQ000206 Snap Link
57 2 HC702817 SHCS .375-16 x 1.00
58 4 HC702822 SHCS .375-16 x 1.50
59 56 HF589004 Panel Fastner #10-32 U
60 4 HF700000 Panel Fastner .375-16 U
61 56 HM581714 HHSS #10-32 x .625 Black Zinc
62 4 HN-60065 Hex Self Locking Nut .312-18 Black
63 19 HN-60560 Nylock Nut .375-16 Black
64 1 HN704000 Hex Nut .375-16
65 5 HN704400 Jam Nut .375-16
66 4 HN704901 Nylon Locknut .375-16
67 2 HN705618 Eye Socket Nut
68 1 PU060203 Bumper
69 2 HP286715 Pin .188 Dia x .75 Roll
70 1 HS308300 Split Lockwasher .250
71 2 HS407100 Spring Washer .650 ID x .790 OD x .062
72 4 HY662912 Set Screw .312-18 U x .50
73 4 HS-60531 BHSC .375-16 x .75 Black
74 11 HS-60535 BHSC .375-16 x 1.75 Black
ITEM QTY PART NO. DESCRIPTION
