Rack Mounting Guidelines
AlterPath BladeManager Manual 2-3
To install the BladeManager in a rack cabinet, you need the following items:
• 2 slide rails
• 6 cable straps
• 6 M6 screws (for shipping and for securing vibration-prone areas)

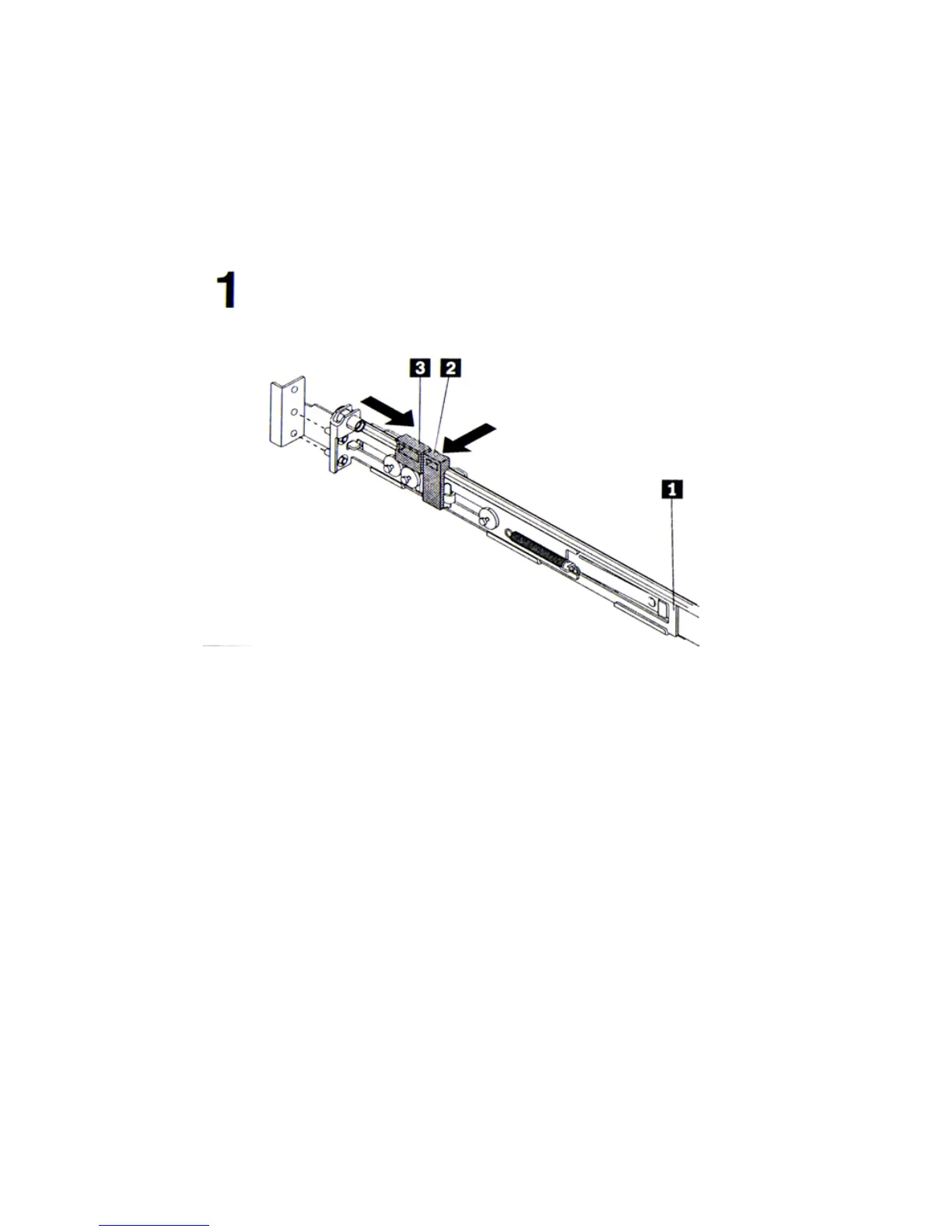

a. Press on the rail-adjustment bracket (1) on the rear of the slide rail to
prevent the bracket from moving.
b. Press on tab (2) and tab (3) and slide the rail-locking carrier toward
the front of the slide rail until it snaps into place.
c. Press on tab (2) and tab (3) on the front rail-locking carrier and slide
the rail-locking carrier toward the rear of the slide until it snaps into
place.
