2: BladeManager Installation
2-4 AlterPath BladeManager Manual

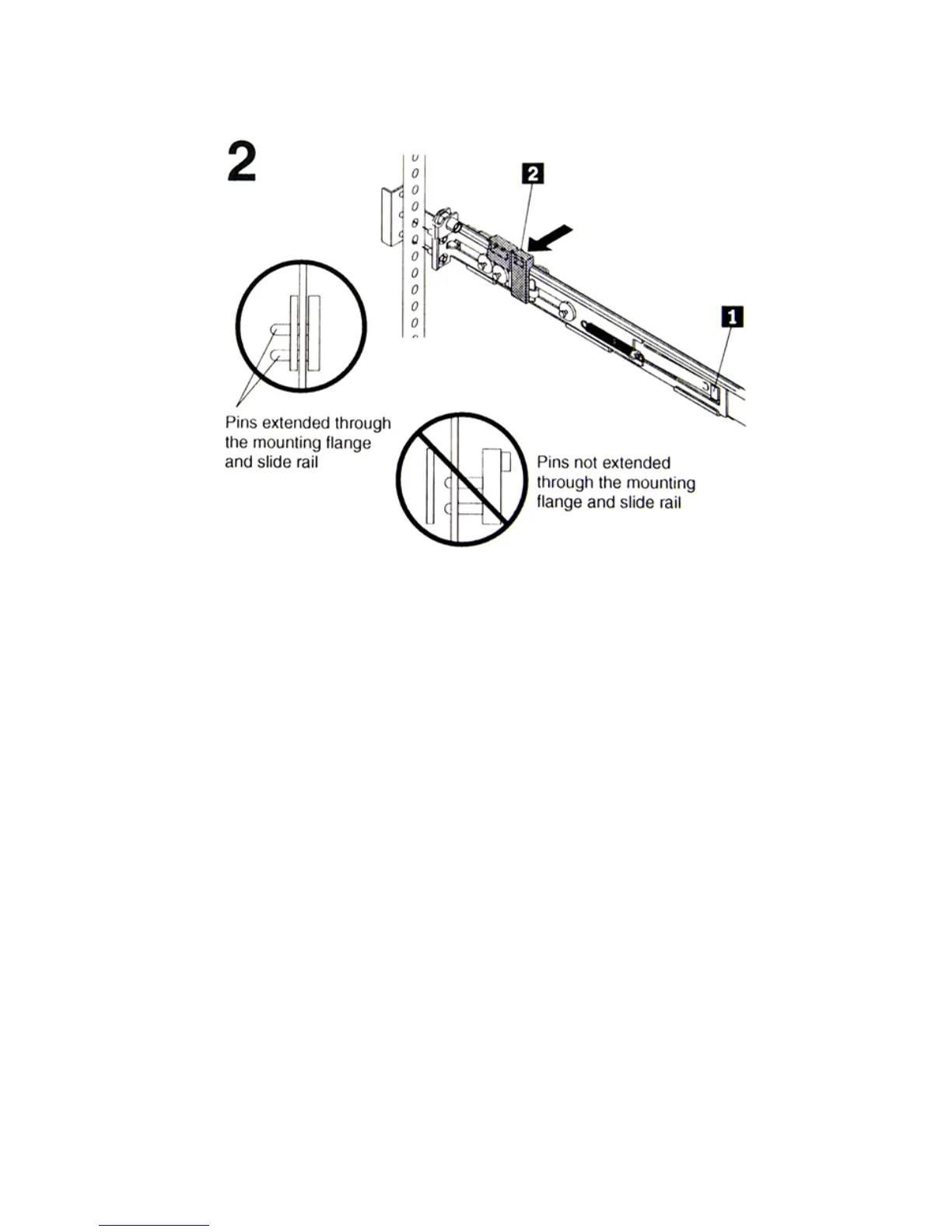

a. Lift the release tab (1) and fully extend the rail-adjustment bracket
from the rear of the slide rail until it snaps into place, if you need to
adjust the slide rail length.
b. Align the pins on the rear rail-locking carrier with the holes on the
rear mounting flange.
c. Press the tab (2) to secure the rear of the slide rail to the rear
mounting flange.
Important: Ensure that the pins are fully extended through the mounting
flange and slide rail.
