Rack Mounting Guidelines
AlterPath BladeManager Manual 2-5

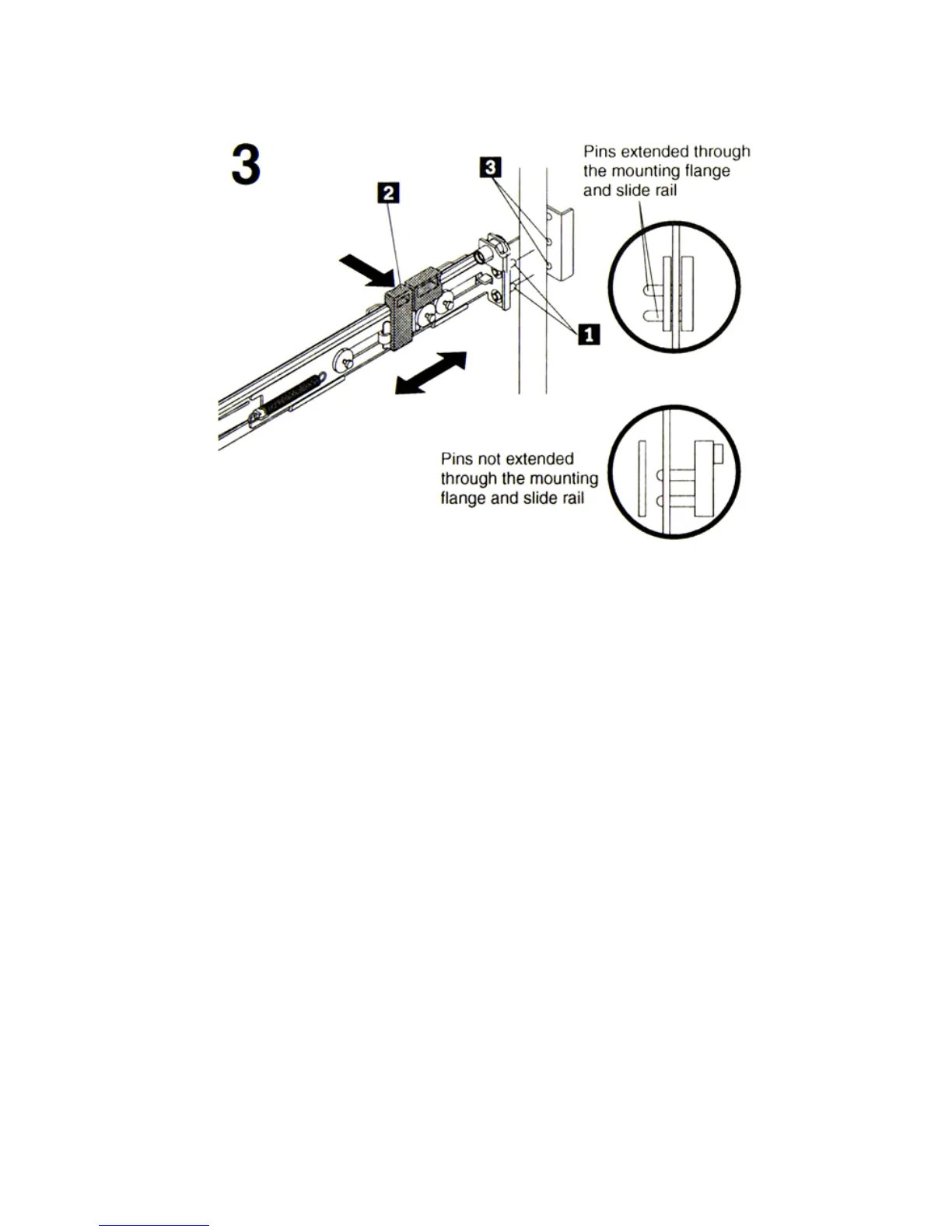

a. Align the pins (1) on the front rail-locking carrier to the front
mounting flange.
b. If you adjusted the rail length, push the rail-locking carrier back
toward the rear of the slide rail to align the slide rail with the
mounting flange.
c. Press the tab (2) to secure the front of the slide rail to the front
mounting flange.
d. Repeat steps 1 and 2 for the other slide rail.
