D-Link DAP-1325 User Manual

DAP-1325 N300 Wi-Fi Range Extender
User Manual
Installation and Connection

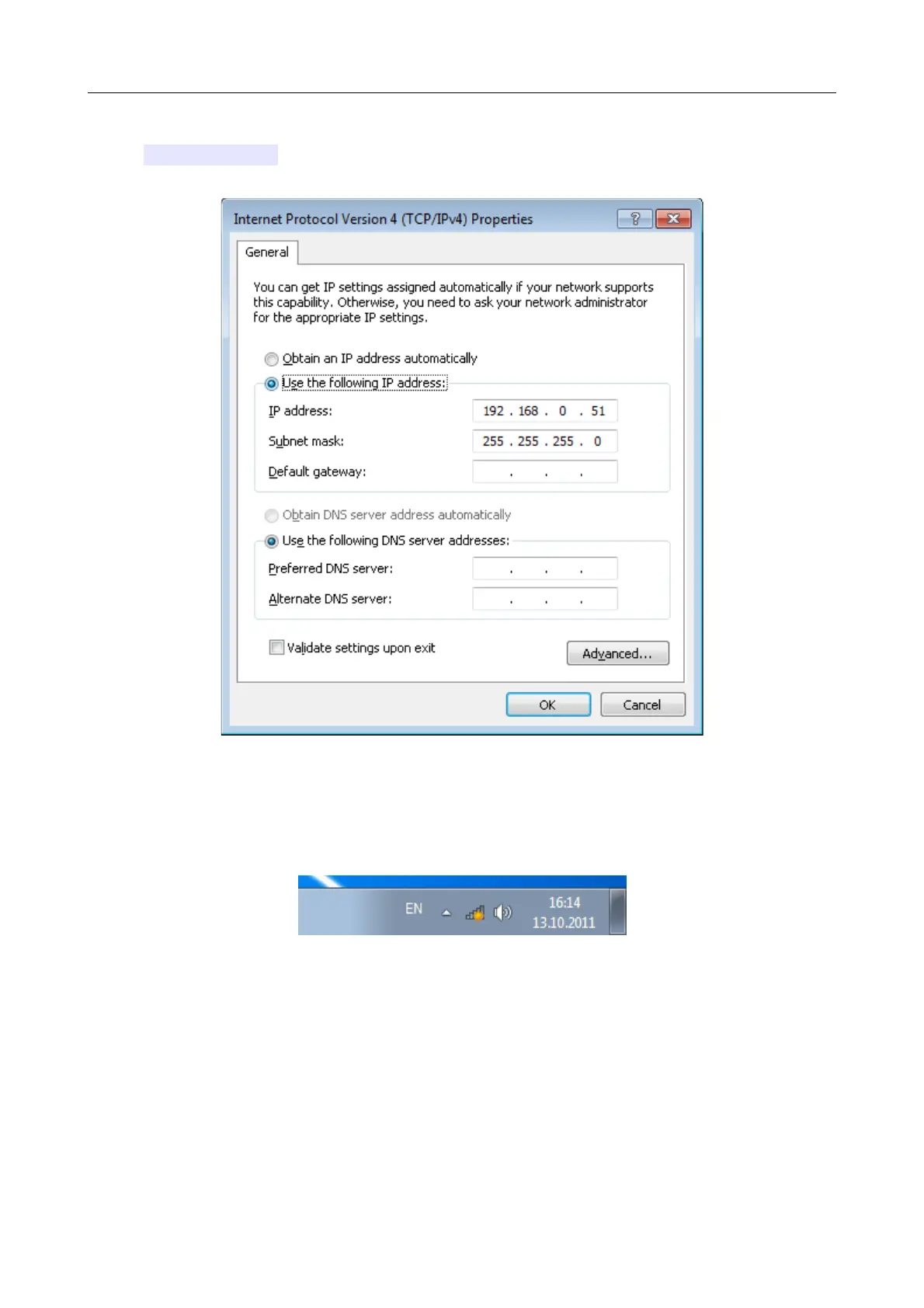

6. Select the Use the following IP address radio button and enter the value
192.168.0.51 in the IP address field. The Subnet mask field will be filled in
automatically. Click the OK button.
Figure 14. The Internet Protocol Version 4 (TCP/IPv4) Properties window.
7. Click the OK button in the connection properties window.
8. To open the list of available wireless networks, select the icon of the wireless network
connection and click the Connect To button or left-click the network icon in the
notification area located on the right side of the taskbar.
Figure 15. The notification area of the taskbar.
Page 24 of 92

D-Link DAP-1325 Specifications

General

Type	Network repeater
WPS push button	Yes
Ethernet LAN data rates	10, 100 Mbit/s
Maximum transfer distance	- m
Antenna type	External
Antennas quantity	2
Wi-Fi standards	802.11g, Wi-Fi 4 (802.11n)
Security algorithms	WPA, WPA2, WPS-PBC
Networking standards	IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3u
Wi-Fi data rate (max)	300 Mbit/s
Ethernet LAN (RJ-45) ports	1
Certification	FCC, IC, CE, RCM, IDA, CB, LVD, UL, WPS
Product color	Grey, White
AC input voltage	110-240 V
AC input frequency	50 - 60 Hz
Sustainability certificates	RoHS
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	50.7 mm
Width	97.9 mm
Height	48.7 mm
Weight	97 g
