Configuring via Web-based Interface
Conguring Wireless Network
This configuration step is available for the Access point and Repeater modes.
1. On the Wireless Network 2.4 GHz page, in the Network name field, specify your own
name for the wireless network or leave the value suggested by the extender.
2. In the Password field, specify your own password for access to the wireless network or
leave the value suggested by the extender (WPS PIN of the device, see the barcode label).
3. You can restore the parameters of the wireless network specified before resetting to factory
defaults. To do this, click the RESTORE button.

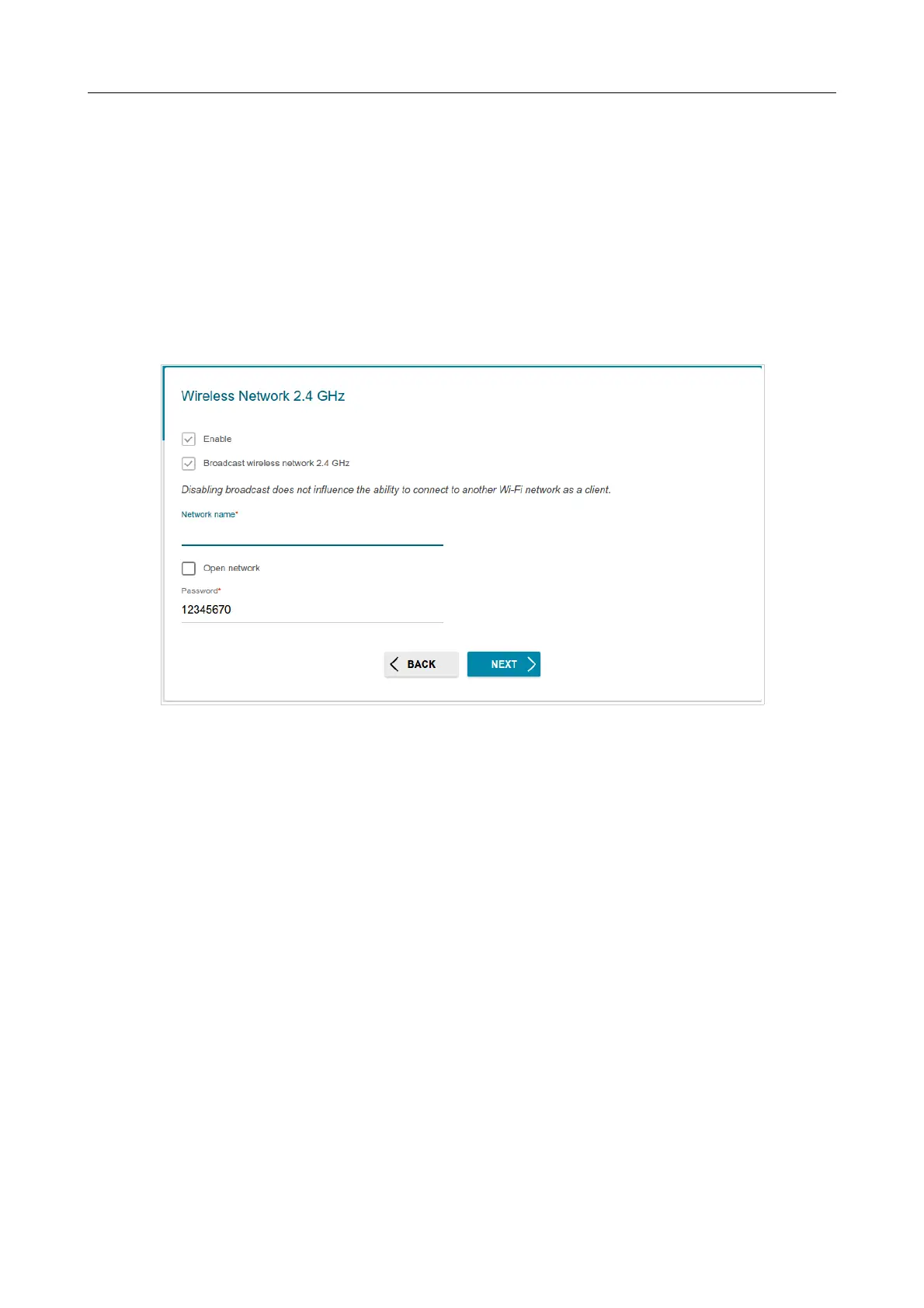

Figure 32. The page for configuring the wireless network.
4. Click the NEXT button to continue or click the BACK button to specify other settings.
Page 38 of 92

D-Link DAP-1325 Specifications

General

Type	Network repeater
WPS push button	Yes
Ethernet LAN data rates	10, 100 Mbit/s
Maximum transfer distance	- m
Antenna type	External
Antennas quantity	2
Wi-Fi standards	802.11g, Wi-Fi 4 (802.11n)
Security algorithms	WPA, WPA2, WPS-PBC
Networking standards	IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3u
Wi-Fi data rate (max)	300 Mbit/s
Ethernet LAN (RJ-45) ports	1
Certification	FCC, IC, CE, RCM, IDA, CB, LVD, UL, WPS
Product color	Grey, White
AC input voltage	110-240 V
AC input frequency	50 - 60 Hz
Sustainability certificates	RoHS
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	50.7 mm
Width	97.9 mm
Height	48.7 mm
Weight	97 g
