D-Link DAP-1325 User Manual

DAP-1325 N300 Wi-Fi Range Extender
User Manual
Configuring via Web-based Interface
Statistics
The pages of this section display data on the current state of the extender:
• network statistics
• IP addresses leased by the DHCP server
• data on devices connected to the extender's network and its web-based interface
• addresses of active multicast groups.
Network Statistics
On the Statistics / Network Statistics page, you can view statistics for all connections existing
in the system. For each connection the following data are displayed: name and state (when the
connection is on, its name is highlighted in green, when the connection is off, its name is
highlighted in red), IP address and subnet mask, gateway (if the connection is established), MAC
address, and volume of data received and transmitted (with increase of the volume the units of
measurement are changed automatically: byte, Kbyte, Mbyte, Gbyte).

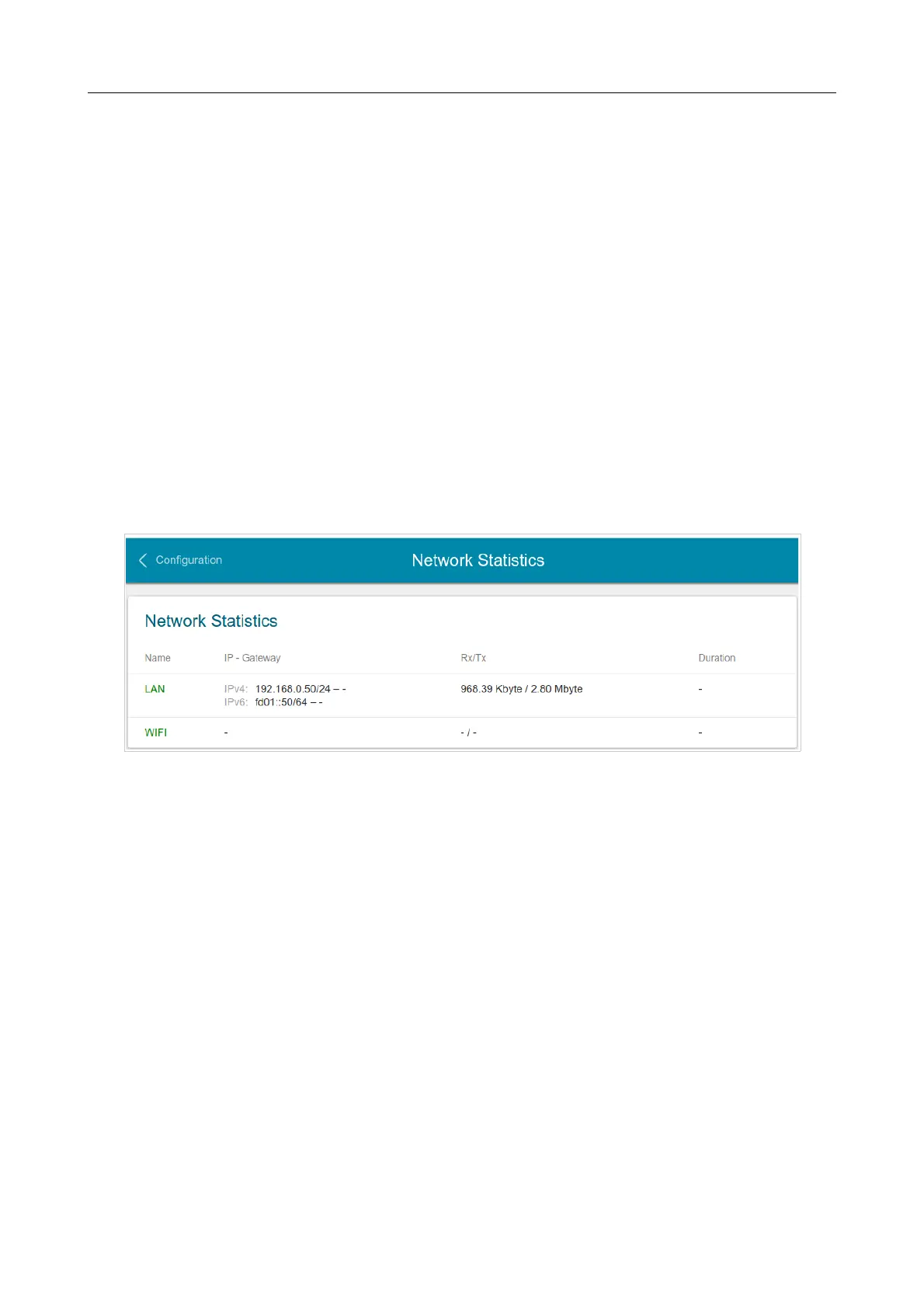

Figure 34. The Statistics / Network Statistics page.
To view data on a connection, click the line corresponding to this connection.
Page 40 of 92

D-Link DAP-1325 Specifications

General

Type	Network repeater
WPS push button	Yes
Ethernet LAN data rates	10, 100 Mbit/s
Maximum transfer distance	- m
Antenna type	External
Antennas quantity	2
Wi-Fi standards	802.11g, Wi-Fi 4 (802.11n)
Security algorithms	WPA, WPA2, WPS-PBC
Networking standards	IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3u
Wi-Fi data rate (max)	300 Mbit/s
Ethernet LAN (RJ-45) ports	1
Certification	FCC, IC, CE, RCM, IDA, CB, LVD, UL, WPS
Product color	Grey, White
AC input voltage	110-240 V
AC input frequency	50 - 60 Hz
Sustainability certificates	RoHS
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	50.7 mm
Width	97.9 mm
Height	48.7 mm
Weight	97 g
