D-Link DAP-1325 User Manual

DAP-1325 N300 Wi-Fi Range Extender
User Manual
Configuring via Web-based Interface
System Time
On the System / System Time page, you can manually set the time and date of the extender or
configure automatic synchronization of the system time with a time server on the Internet.

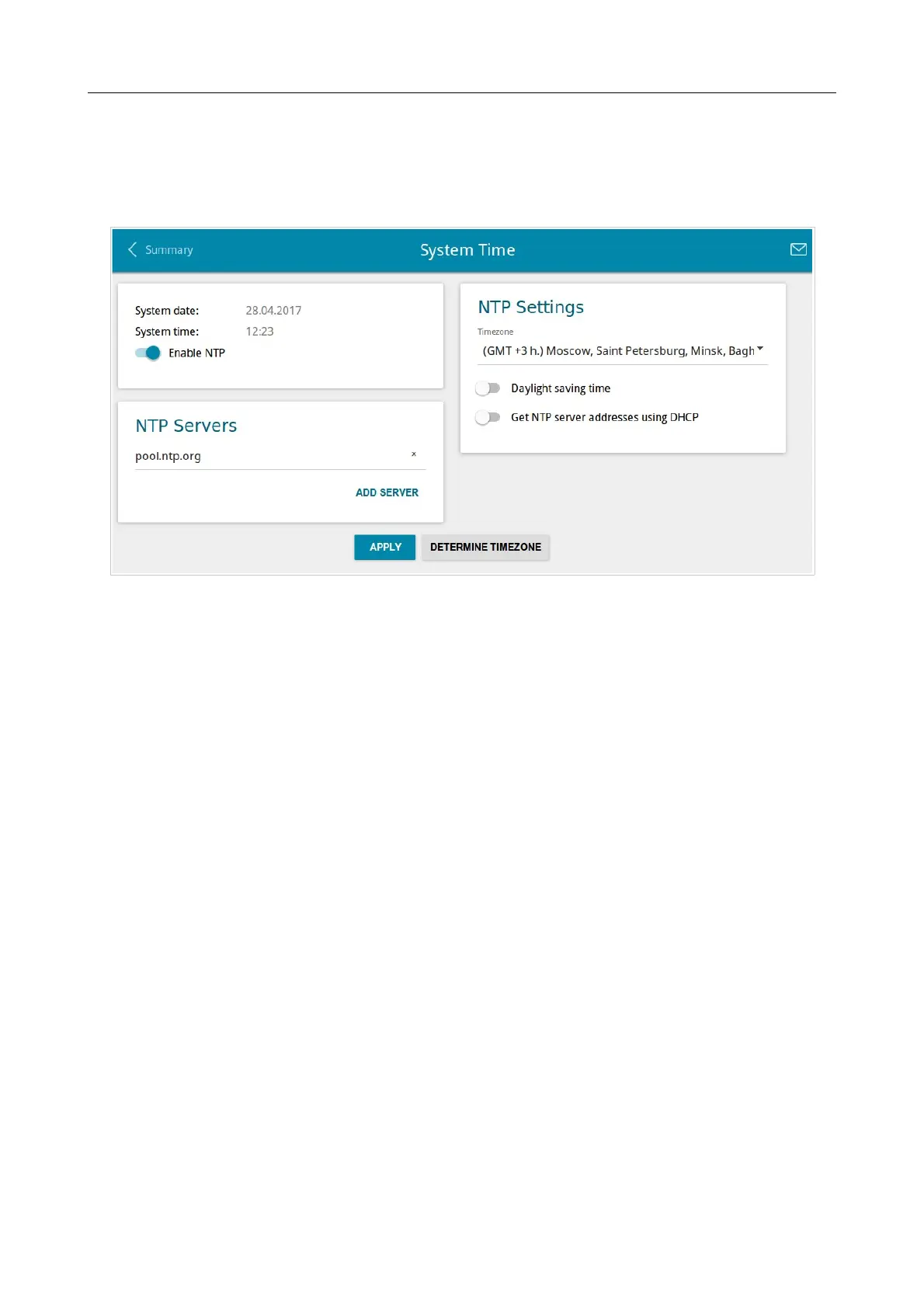

Figure 67. The System / System Time page.
To set the system time manually, follow the next steps:
1. Move the Enable NTP switch to the left.
2. In the Time Settings section, specify needed values. To specify the time set up your PC or
portable device, click the SET LOCAL TIME button.
3. Click the APPLY button. The System date and System time fields will be filled in
automatically.
To enable automatic synchronization with a time server, follow the next steps:
1. Move the Enable NTP switch to the right.
2. Specify the needed NTP server or leave the value specified by default in the NTP Servers
section. If you need to specify several servers, click the ADD SERVER button.
3. Select your time zone from the Timezone drop-down list in the NTP Settings section. To
set the time zone in accordance with the settings of your operating system or portable
device, click the DETERMINE TIMEZONE button.
4. Click the APPLY button. The System date and System time fields will be filled in
automatically.
To enable automatic adjustment for daylight saving time of the extender, move the Daylight
saving time switch to the right in the NTP Servers section and click the APPLY button.
In some cases NTP servers addresses are provided by your ISP. In this case, you need to move the
Get NTP server addresses using DHCP switch in the NTP Servers section to the right and
click the APPLY button. Contact your ISP to clarify if this setting needs to be enabled. If the Get
NTP server addresses using DHCP switch is moved to the right, the NTP Servers section is
not displayed.
Page 87 of 92

D-Link DAP-1325 Specifications

General

Type	Network repeater
WPS push button	Yes
Ethernet LAN data rates	10, 100 Mbit/s
Maximum transfer distance	- m
Antenna type	External
Antennas quantity	2
Wi-Fi standards	802.11g, Wi-Fi 4 (802.11n)
Security algorithms	WPA, WPA2, WPS-PBC
Networking standards	IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3u
Wi-Fi data rate (max)	300 Mbit/s
Ethernet LAN (RJ-45) ports	1
Certification	FCC, IC, CE, RCM, IDA, CB, LVD, UL, WPS
Product color	Grey, White
AC input voltage	110-240 V
AC input frequency	50 - 60 Hz
Sustainability certificates	RoHS
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	50.7 mm
Width	97.9 mm
Height	48.7 mm
Weight	97 g
