D-Link DAP-1325 User Manual

DAP-1325 N300 Wi-Fi Range Extender
User Manual
Configuring via Web-based Interface
Changing LAN IPv4 Address
This configuration step is available for the Access point, Repeater, and Client modes.
1. If the LAN IPv4 address of DAP-1325 coincides with the LAN IPv4 address of the router to
which it connects, then set another LAN IPv4 address of DAP-1325 in the IP address
field.

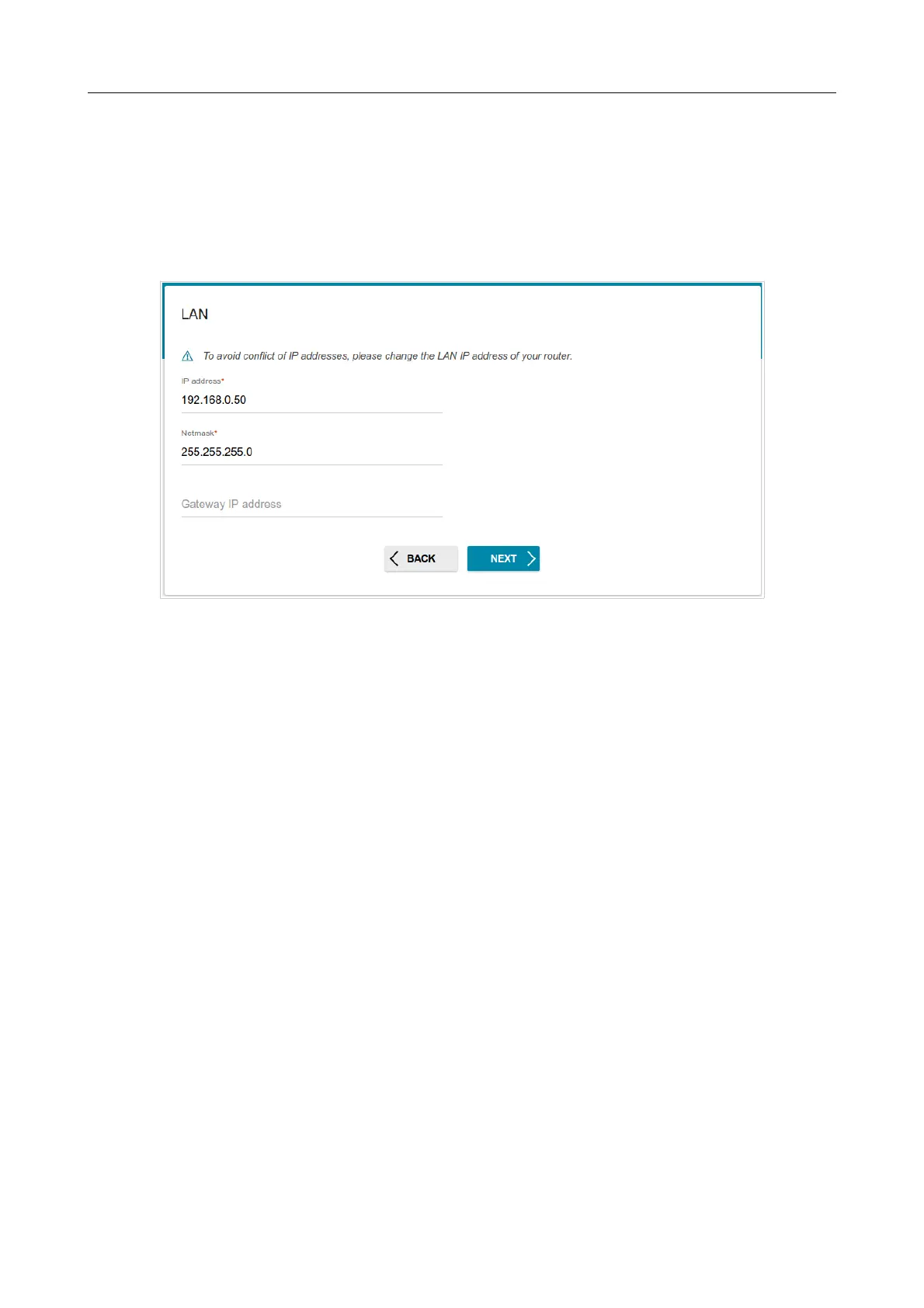

Figure 29. The page for changing the LAN IPv4 address.
2. Click the NEXT button to continue or click the BACK button to return to the previous page.
Page 35 of 92

D-Link DAP-1325 Specifications

General

Type	Network repeater
WPS push button	Yes
Ethernet LAN data rates	10, 100 Mbit/s
Maximum transfer distance	- m
Antenna type	External
Antennas quantity	2
Wi-Fi standards	802.11g, Wi-Fi 4 (802.11n)
Security algorithms	WPA, WPA2, WPS-PBC
Networking standards	IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3u
Wi-Fi data rate (max)	300 Mbit/s
Ethernet LAN (RJ-45) ports	1
Certification	FCC, IC, CE, RCM, IDA, CB, LVD, UL, WPS
Product color	Grey, White
AC input voltage	110-240 V
AC input frequency	50 - 60 Hz
Sustainability certificates	RoHS
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	50.7 mm
Width	97.9 mm
Height	48.7 mm
Weight	97 g
