DAP-1325 N300 Wi-Fi Range Extender
User Manual
Configuring via Web-based Interface
In the Static DHCP section, you can specify MAC address and IP address pairs (set a fixed IPv4
address in the local area network for a device with a certain MAC address).

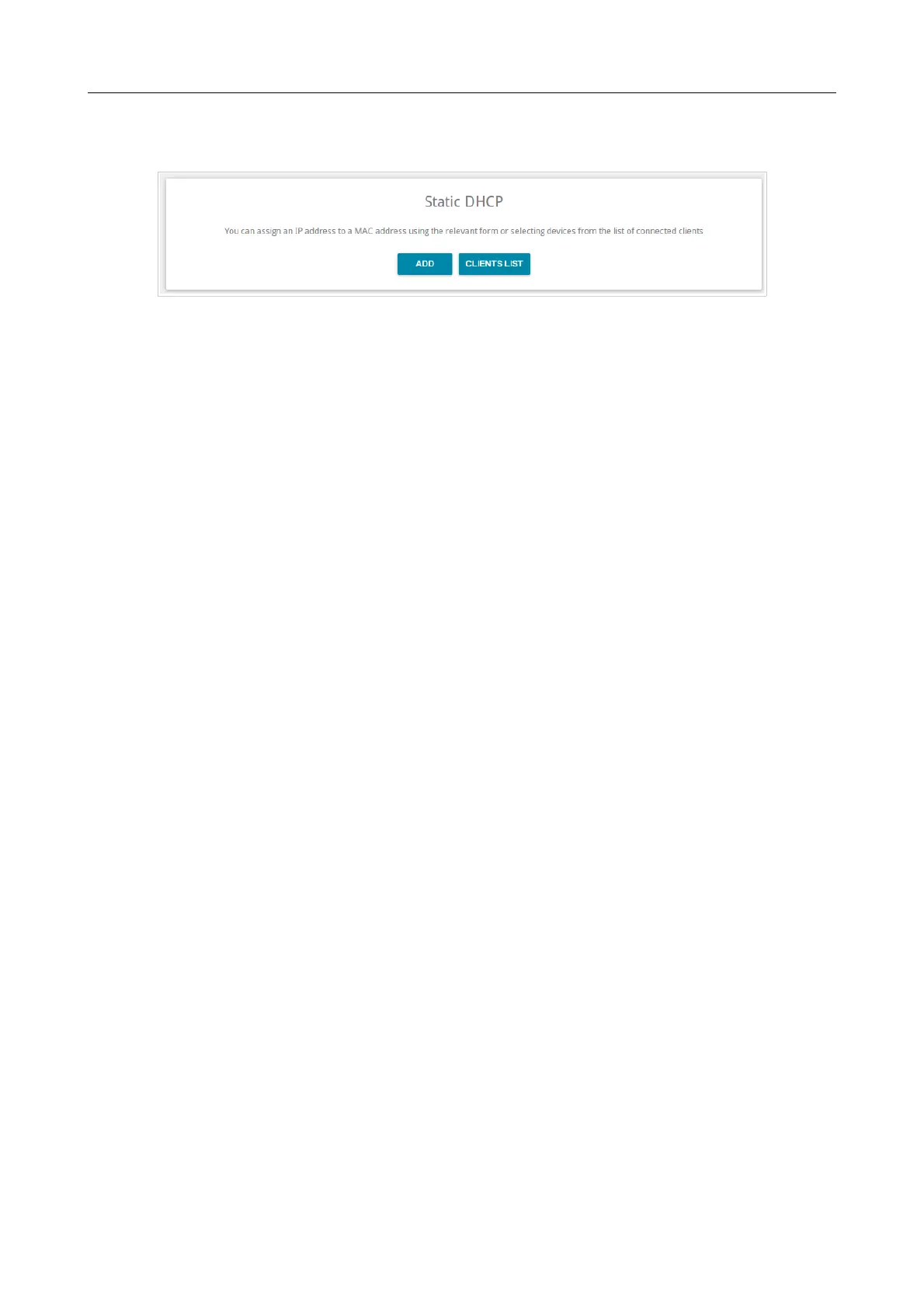

Figure 40. The section for creating MAC-IP pairs.
To create a MAC-IP pair, click the ADD button. In the opened window, in the MAC address field,
enter the MAC address of the device from the LAN, then in the IP address field, enter an IPv4
address which will be assigned to it. In the Host field, specify a network name of the device for
easier identification (optional). Click the APPLY button.
In order to view MAC addresses of the devices connected to the extender at the moment, click the
CLIENTS LIST button. In the opened window, select the needed device and click the OK button.
To view the latest list of the connected devices, click the REFRESH button.
To edit an existing MAC-IP pair, left-click the relevant line in the table. In the opened window,
change the needed parameters and click the APPLY button.
To remove a MAC-IP pair, select the checkbox located to the left of the relevant line in the table
and click the Delete button. Then click the APPLY button. Also you can remove a MAC-IP pair in
the editing window.
Page 46 of 92
