DAP-1360U Wireless N300 Access Point & Router
User Manual
Overview
Back and Bottom Panels

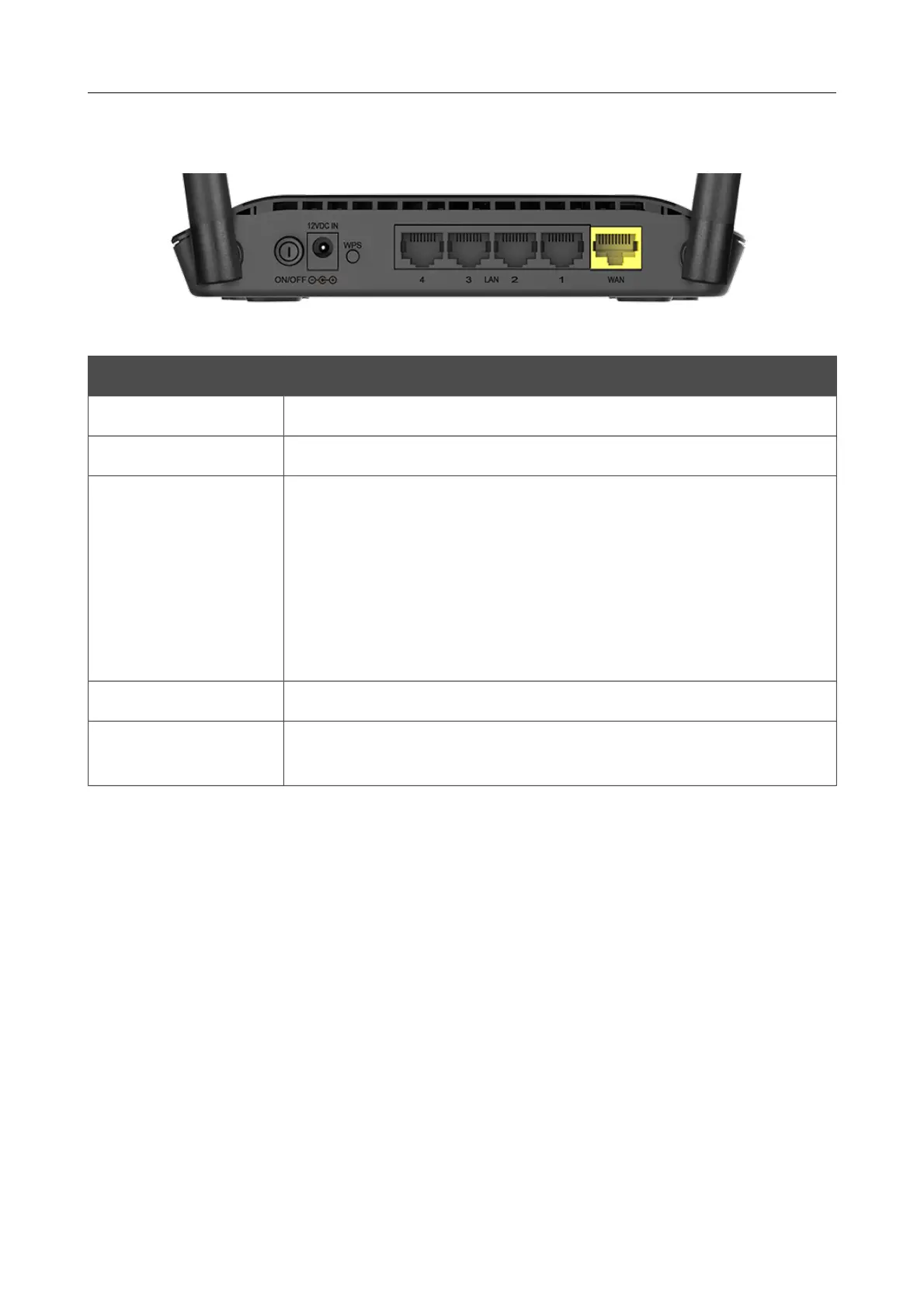

Figure 2. Back panel view.
Name Description
ON/OFF A button to turn the device on/off.
12VDC IN Power connector.
WPS
A button to set up a wireless connection (the WPS function) and
enable/disable the wireless network.
To use the WPS function: with the device turned on, push the button,
hold it for 2 seconds, and release. The WPS LED should start blinking.
To disable the wireless network of the access point: with the device
turned on, press the button, hold for 7 seconds, and release. The WLAN
LED should turn off.
LAN 1-4 4 Ethernet ports to connect computers or network devices.
WAN
A port to connect to a cable or DSL modem or to a private Ethernet line
(it is recommended to use the cable included in the delivery package).
The RESET button located on the bottom panel of the access point is designed to restore the
factory default settings. To restore the factory defaults, push the button (with the device turned on),
hold it for 10 seconds, and then release the button.
The device is also equipped with two external Wi-Fi antennas.
